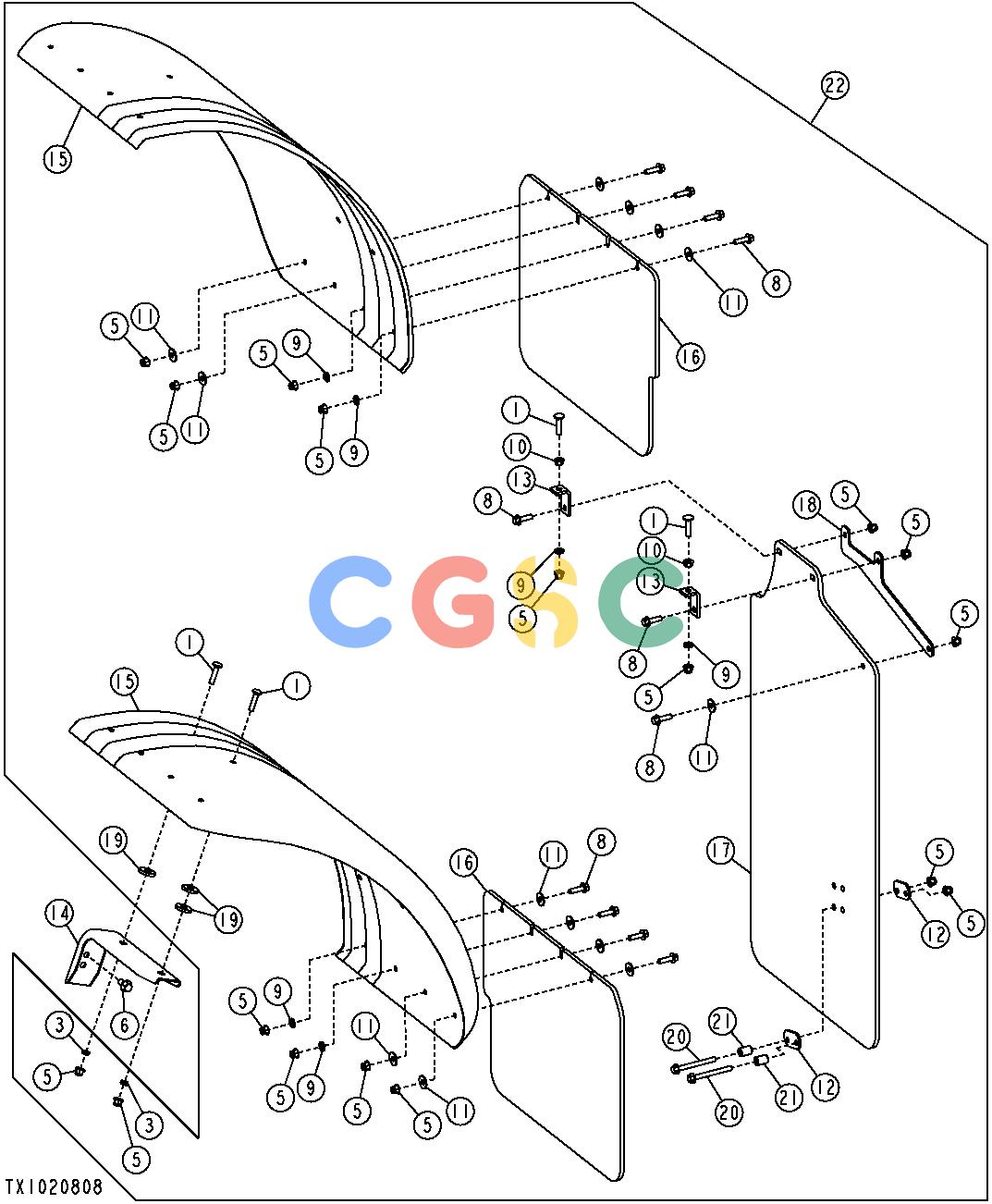

约翰迪尔零件查询RE160299 - AXLE Full Coverage Front FendersEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
799 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
03M7195
|
[14] |
Bolt
|
|
| 3. |
14M7152
|
[12] |
Nut
|
|
| 5. |
14M7400
|
[27] |
Lock Nut
|
|
| 6. |
19M7788
|
[6] |
Screw
|
|
| 8. |
19M7835
|
[11] |
Screw
|
|
| 9. |
24M7239
|
[6] |
Washer
|
|
| 10. |
14M7296
|
[2] |
Flange Nut
|
|
| 11. |
24M7296
|
[13] |
Washer
|
|
| 12. |
T173779
|
[2] |
Strap
|
|
| 13. |
T176357
|
[2] |
Angle
|
|
| 14. |
T178368
|
[6] |
Support
|
|
| 15. |
T203075
|
[2] |
Fender
|
|
| 16. |
T203077
|
[2] |
Splash Guards
|
|
| 17. |
T203966
|
[1] |
Splash Guards
|
|
| 18. |
T204744
|
[1] |
Plate
|
|
| 19. |
T22381
|
[18] |
Washer
|
|
| 20. |
19M7812
|
[2] |
Screw
|
|
| 21. |
T147891
|
[2] |
Bushing
|
|
| 22. |
........
|
[1] |
Kit
|
|
