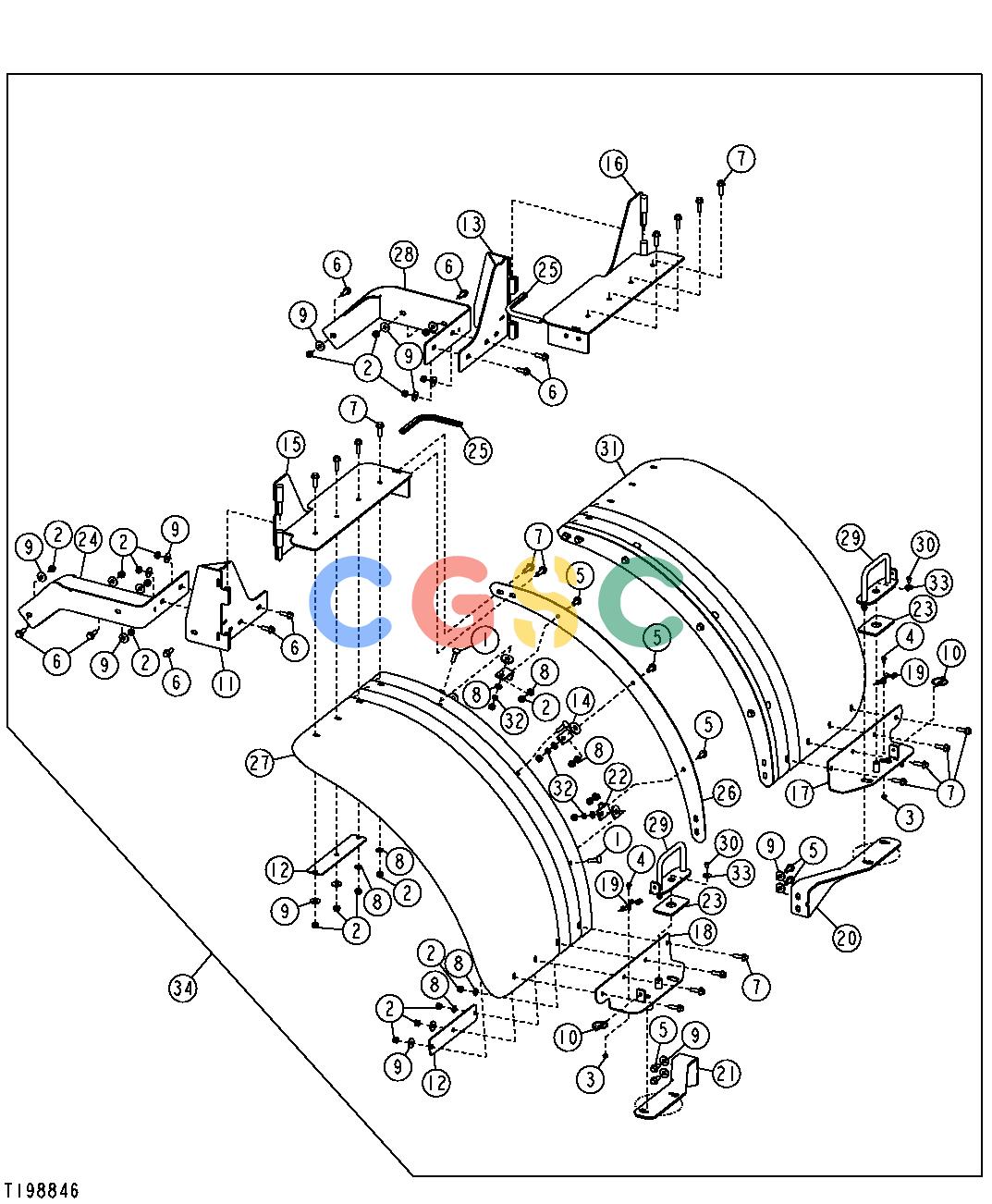

约翰迪尔零件查询RE160299 - AXLE Full Coverage Rear FendersEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 926 次

Pos.	Part No	Qty	Parts name	Comments
1.	03M7195	[6]	Bolt	M10 X 45
2.	14M7167	[44]	Lock Nut	M10
3.	14M7303	[2]	Flange Nut	M6
4.	19M7774	[2]	Screw	M6 X 12
5.	19M7785	[10]	Screw	M10 X 25
6.	19M7786	[12]	Screw	M10 X 30
7.	19M7835	[20]	Screw	M10 X 35
8.	24M7239	[20]	Washer	10.700 X 21 X 2.500 MM
9.	24M7296	[28]	Washer	10.500 X 30 X 2.500 MM
10.	AA21292	[2]	Quick Lock Pin
11.	AT301819	[1]	Hinge
12.	T204644	[4]	Plate
13.	AT301820	[1]	Hinge
14.	T22381	[6]	Washer
15.	AT305572	[1]	Hinge
16.	AT305573	[1]	Hinge
17.	AT310037	[1]	Bracket
18.	AT310038	[1]	Bracket
19.	AT305830	[2]	Cable
20.	AT306099	[1]	Support
21.	AT306227	[1]	Support
22.	T176357	[6]	Angle
23.	T207650	[2]	Pad
24.	AT309249	[1]	Bracket
25.	........	[1]	Isolator	(MAKE FROM (1) T58056)(CUT TO LENGTH)
26.	T203965	[2]	Plate
27.	T204518	[2]	Fender
28.	AT309530	[1]	Bracket
29.	AT308784	[2]	Handle
30.	R131664	[2]	Cap Screw
31.	T204518	[1]	Fender
32.	14M7152	[6]	Nut	M10
33.	24M7298	[2]	Washer	8.400 X 25 X 2 MM
34.	........	[1]	Kit	(WHOLE GOODS) ( AT312130 NLA)
