约翰迪尔零件查询RE160302 - AXLE Axle Filtration Kit ( - 611218)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 483 次

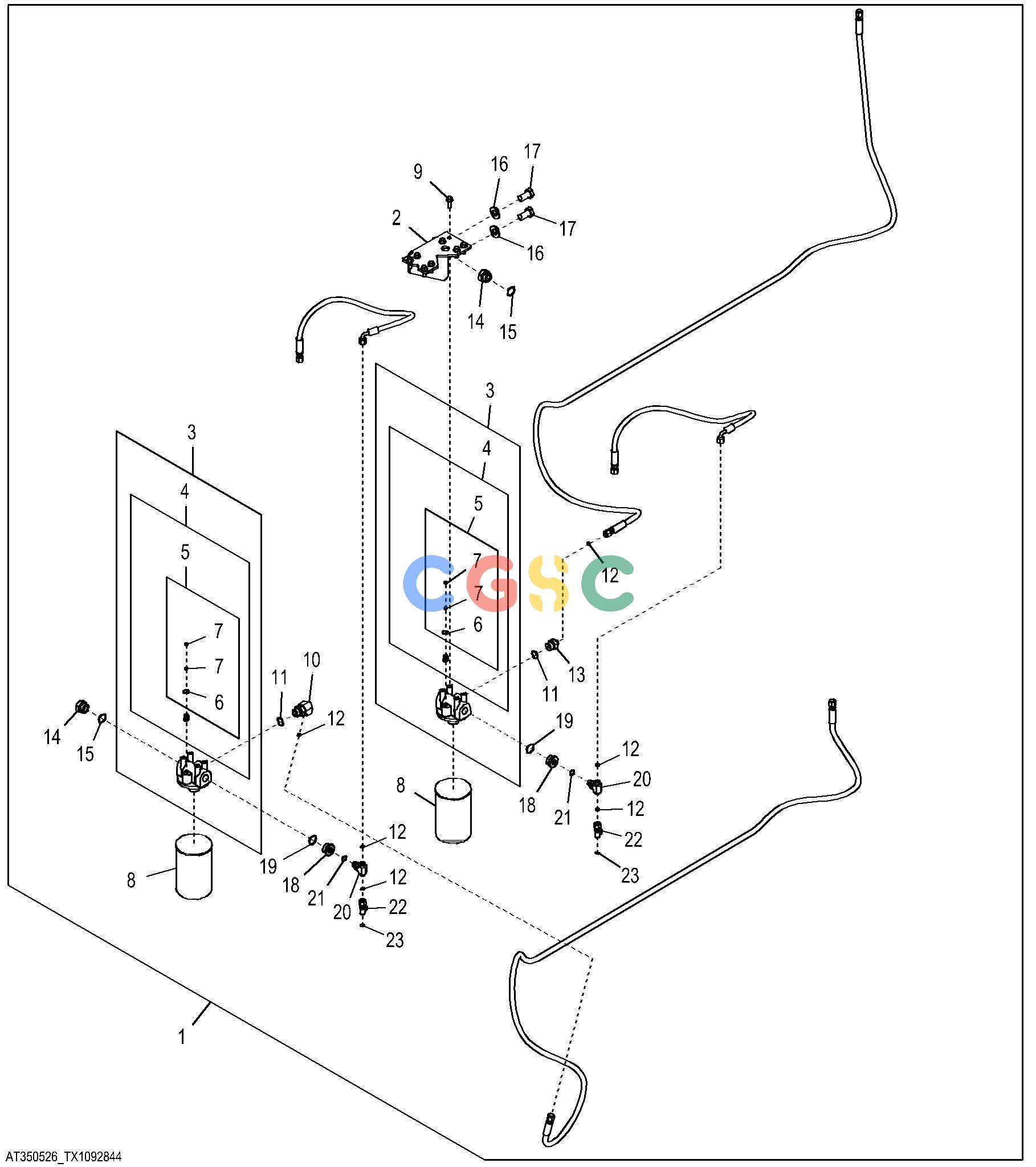

Pos.	Part No	Qty	Parts name	Comments
1.	AT350526	[1]	Filter Kit	WHOLE GOODS
2.	T239045	[1]	Bracket
3.	AT179364	[2]	Filter Head
4.	AT184704	[1]	Switch	FILTER RESTRICTION INDICATOR
5.	AT60644	[1]	Sender
6.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
7.	14H778	[2]	Nut	0.190"
8.	AT103193	[2]	Oil Filter
9.	19M7786	[8]	Screw	M10 X 30
10.	38H1413	[1]	Elbow Fitting
11.	U12547	[2]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
12.	T77613	[6]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
13.	38H1338	[1]	Adapter Fitting
14.	R36636	[1]	Fitting Plug
15.	R29936	[1]	O-Ring	29.743 X 2.946 MM (1.171" X 0.116")
16.	24M7242	[2]	Washer	21.400 X 42 X 5 MM
17.	19M7946	[2]	Cap Screw	M20 X 40
18.	T132838	[2]	Fitting Plug
19.	R29936	[2]	O-Ring	29.743 X 2.946 MM (1.171" X 0.116")
20.	38H1054	[2]	Tee Fitting
21.	R26375	[2]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
22.	AT320593	[2]	Fitting
23.	T218003	[2]	Label	AXLE/GEARBOX OIL
24.	AT351329	[1]	Wiring Harness	FILTER RESTRICTION INDICATOR NOT ILLUSTRATED
