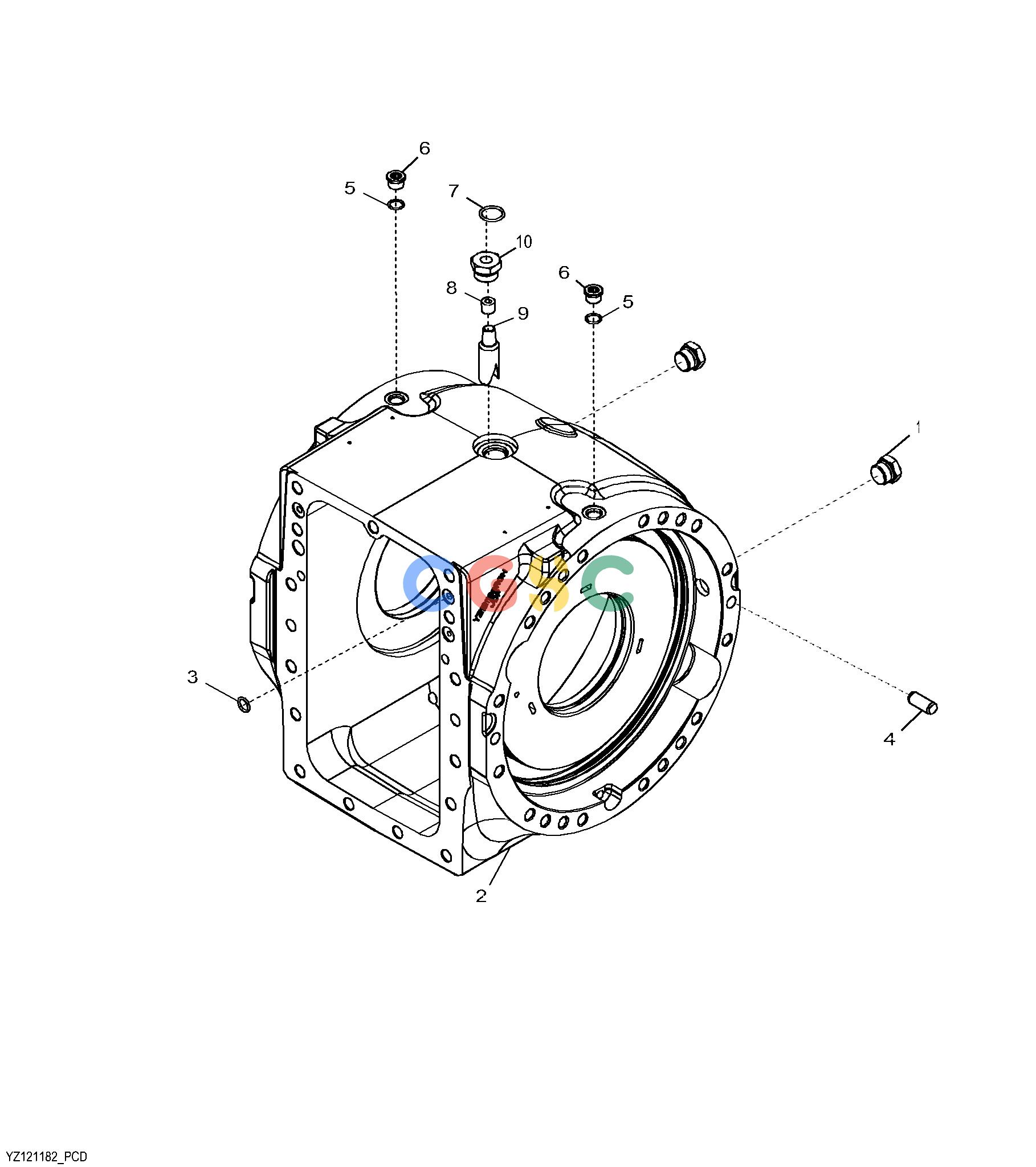

约翰迪尔零件查询RE160302 - AXLE YZ121182 Standard Differential Case, 1400, 20 Bolt Front, FixedEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
529 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RE58664
|
[2] |
Fitting
|
|
| |
F3171R
|
[1] |
O-Ring
|
|
| |
R27175
|
[1] |
Drain Plug
|
|
| 2. |
YZ121224
|
[1] |
Case
|
|
| 3. |
R375R
|
[4] |
O-Ring
|
|
| 4. |
R54380
|
[6] |
Dowel Pin
|
|
| 5. |
R26375
|
[2] |
O-Ring
|
|
| 6. |
R33138
|
[2] |
Fitting
|
|
| 7. |
U17409
|
[1] |
O-Ring
|
|
| 8. |
15H563
|
[1] |
Pipe Plug
|
|
| |
15H666
|
[1] |
Pipe Plug
|
|
| 9. |
R132574
|
[1] |
Structural Tubing
|
|
| 10. |
R112210
|
[1] |
Adapter Fitting
|
|
| 11. |
YZ121180
|
[1] |
Drain Plug
|
|
