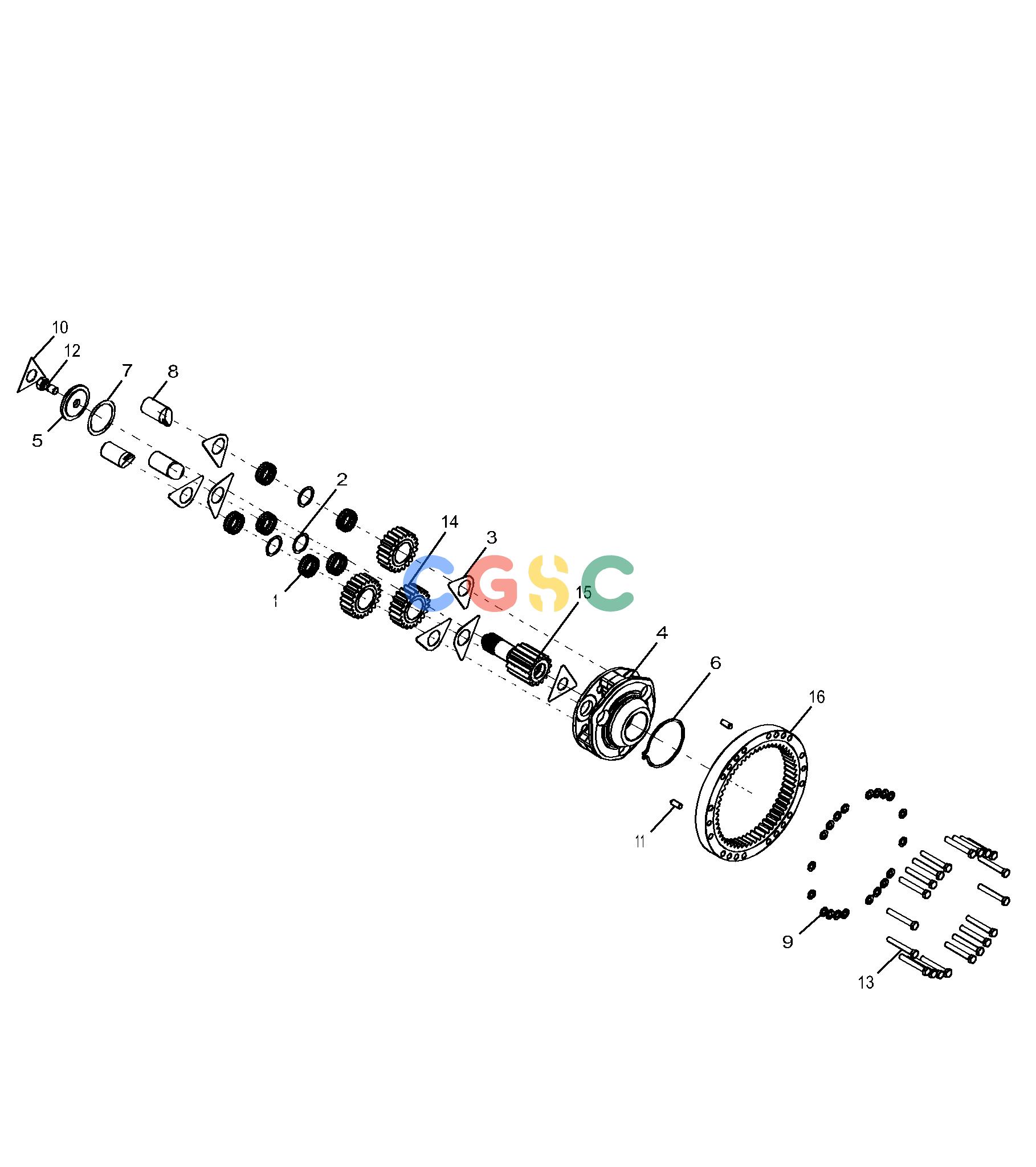

约翰迪尔零件查询RE160302 - AXLE YZ120753 Final DriveEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
1018 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
R109082
|
[144] |
Needle Roller
|
|
| 2. |
R109083
|
[3] |
Washer
|
|
| 3. |
R112079
|
[6] |
Thrust Washer
|
|
| 4. |
R116810
|
[1] |
Planet Pinion Carrier
|
|
| 5. |
R119270
|
[1] |
Washer
|
|
| 6. |
R33029
|
[1] |
Snap Ring
|
|
| 7. |
R52389
|
[1] |
Shim
|
|
| 8. |
R97998
|
[3] |
Pinion Shaft
|
|
| 9. |
R135543
|
[20] |
Washer
|
|
| 10. |
YZ121119
|
[1] |
Lock Plate
|
|
| 11. |
R54380
|
[2] |
Dowel Pin
|
|
| 12. |
R82175
|
[1] |
Cap Screw
|
|
| 13. |
19M8620
|
[20] |
Cap Screw
|
|
| 14. |
YZ121125
|
[3] |
Planet Pinion
|
|
| 15. |
YZ121129
|
[1] |
Pinion Shaft
|
|
| 16. |
YZ120647
|
[1] |
Gear
|
|
