约翰迪尔零件查询RE160302 - AXLE STEERING WHEEL, COLUMN AND LINKAGE (SN. -590067)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 961 次

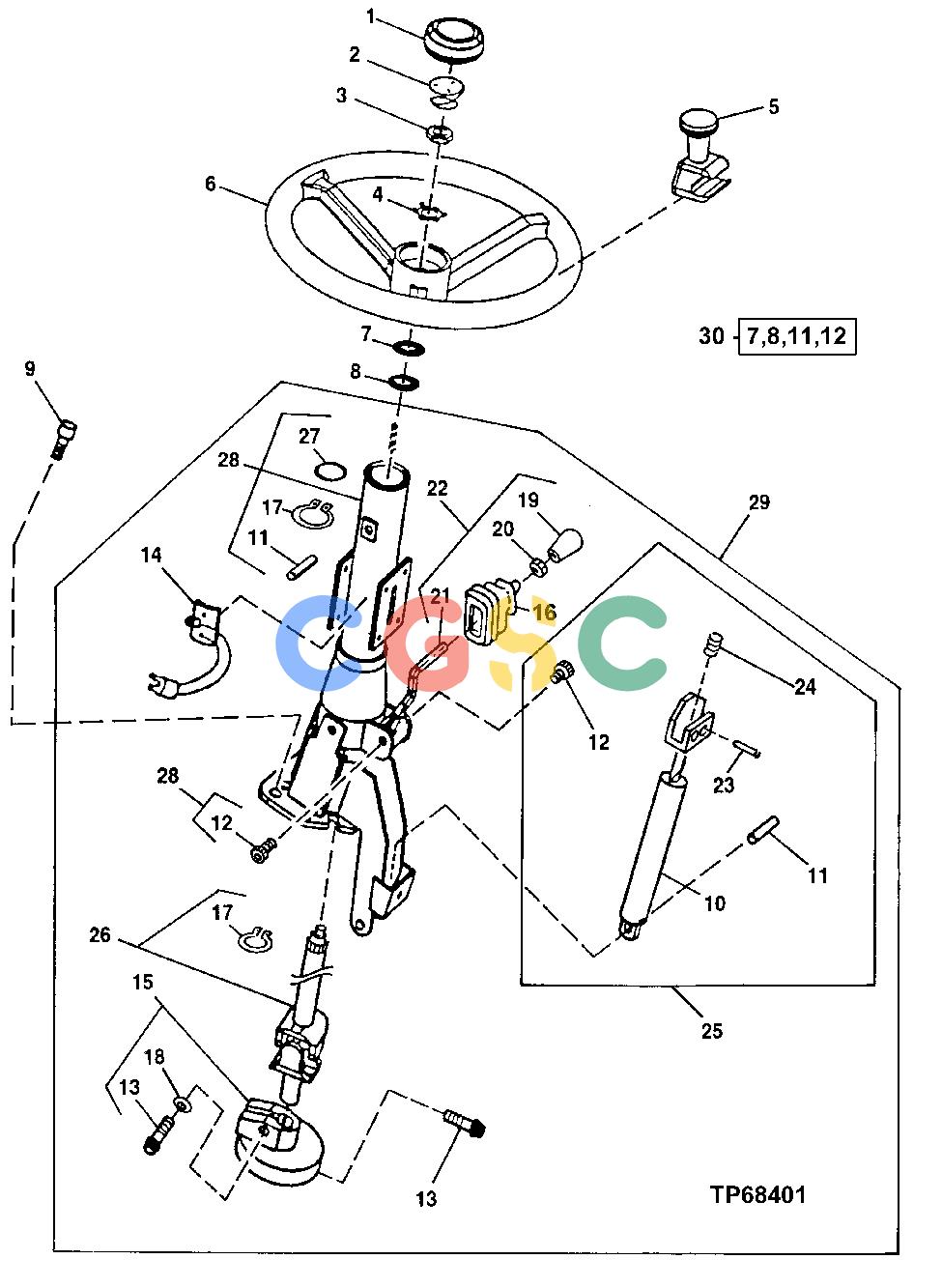

Pos.	Part No	Qty	Parts name	Comments
1.	T154131	[1]	Cover
2.	AT222153	[1]	Switch	HORN
3.	T13630	[1]	Nut
4.	T17148	[1]	Lock Washer
5.	AT369839	[1]	Knob	(SUB FOR AT169849)
6.	AT139694	[1]	Steering Wheel
7.	........	[1]	Snap Ring	(SUB RE56109)
8.	........	[1]	Seal	(SUB RE56109)
9.	19M8328	[4]	Screw	M10 X 25
10.	........	[1]	Spring	(SUB AT160662)
11.	........	[1]	Dowel Pin	(SUB RE56109)
12.	........	[2]	Screw	(SUB RE56109)
13.	T39049	[2]	Screw
14.	AT162719	[1]	Brush Set
15.	AT220226	[1]	Isolator
16.	AT191487	[4]	Boot Kit	(SUB FOR T145701)
17.	........	[1]	Snap Ring	(SUB AT220225 OR AT220227)
18.	........	[1]	Lock Washer	(SUB AT220226)
19.	AT220223	[1]	Kit	KNOB
20.	........	[1]	Nut	(SUB AT220224)
21.	........	[1]	Lever	(SUB AT220224)
22.	AT220224	[1]	Kit	TILT LEVER
23.	........	[2]	Pin	(SUB AT160662)
24.	........	[1]	Spring	(SUB AT160662)
25.	AT160662	[1]	Kit	GAS SPRING
26.	........	[1]	Kit	(SUB (1) AT300524) (AT220225 NLA)
27.	........	[1]	O-Ring	(SUB AT220227)
28.	........	[1]	Kit	(SUB (1) AT300524) (AT220227 NLA)
29.	........	[1]	Steering Column	(SUB (1) AT300524) (AT202610 NLA)
30.	RE56109	[1]	Steering Column	STEERING COLUMN REPAIR
