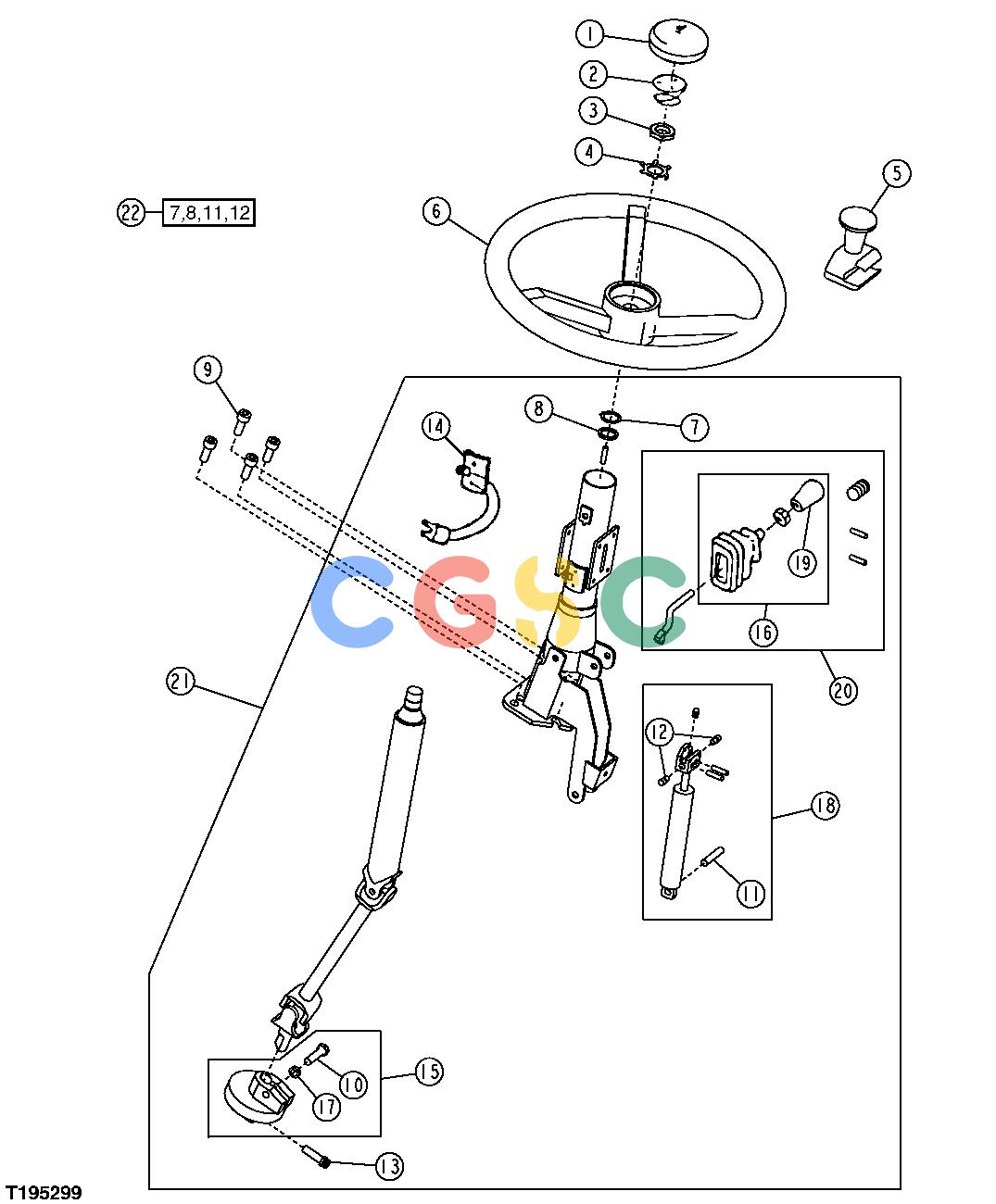

约翰迪尔零件查询RE160302 - AXLE STEERING WHEEL, COLUMN AND LINKAGE (SN. 590068- )EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
117 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
T154131
|
[1] |
Cover
|
|
| 2. |
AT222153
|
[1] |
Switch
|
|
| 3. |
T13630
|
[1] |
Nut
|
|
| 4. |
T17148
|
[1] |
Lock Washer
|
|
| 5. |
AT369839
|
[1] |
Knob
|
|
| 6. |
AT139694
|
[1] |
Steering Wheel
|
|
| 7. |
........
|
[1] |
Snap Ring
|
|
| 8. |
........
|
[1] |
Sealing Washer
|
|
| 9. |
19M8328
|
[4] |
Screw
|
|
| 10. |
19H2544
|
[1] |
Cap Screw
|
|
| 11. |
........
|
[1] |
Dowel Pin
|
|
| 12. |
........
|
[2] |
Screw
|
|
| 13. |
T39049
|
[1] |
Screw
|
|
| 14. |
AT162719
|
[1] |
Brush Set
|
|
| 15. |
AT220226
|
[1] |
Isolator Kit
|
|
| 16. |
AT191487
|
[1] |
Boot Kit
|
|
| 17. |
........
|
[1] |
Washer
|
|
| 18. |
AT160662
|
[1] |
Kit
|
|
| 19. |
AT220223
|
[1] |
Knob
|
|
| 20. |
AT220224
|
[1] |
Lever Kit
|
|
| 21. |
AT300524
|
[1] |
Steering Column
|
|
| 22. |
RE56109
|
[1] |
Steering Column
|
|
