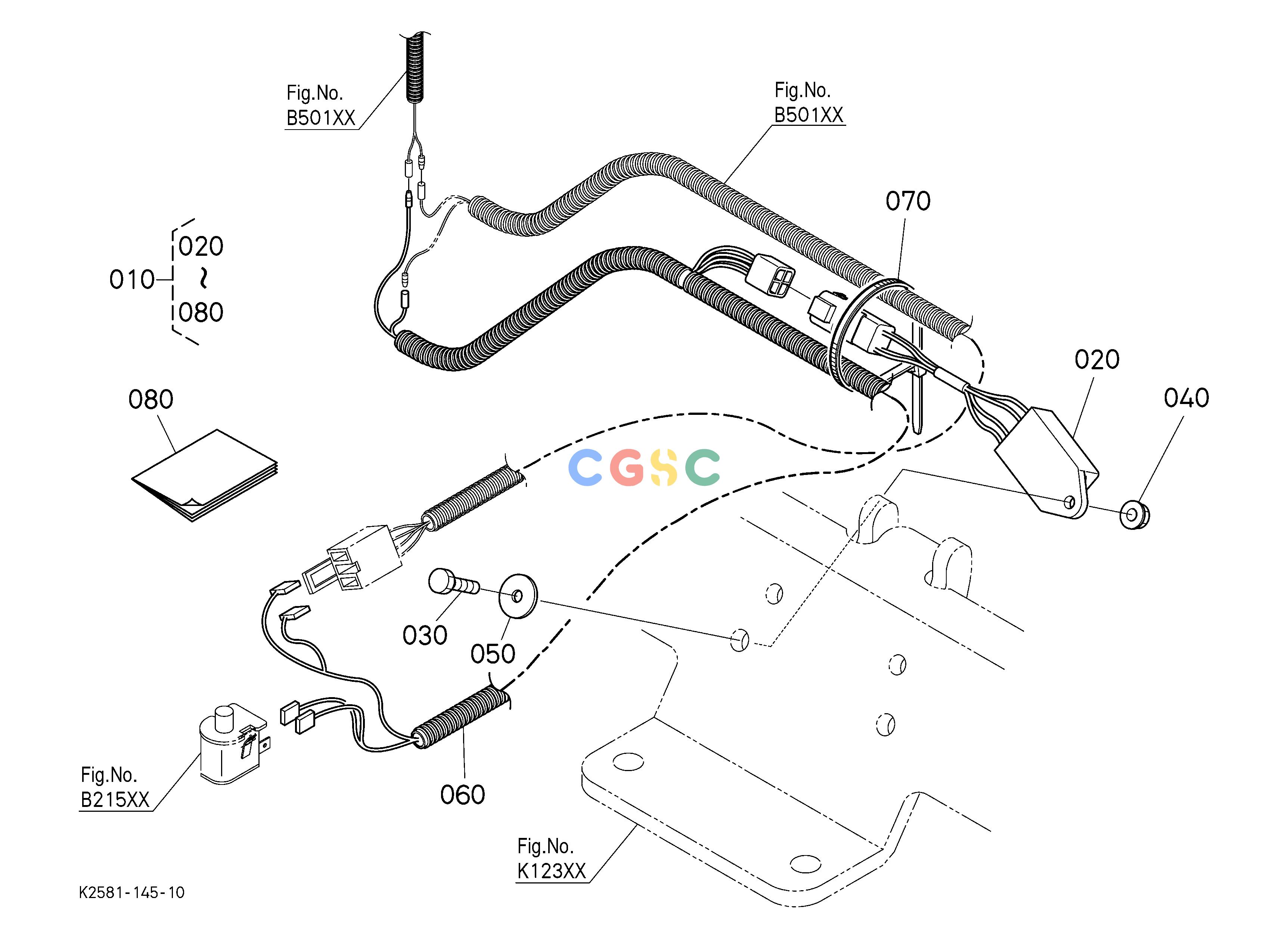

久保田零件查询U82500 OPC TIMER KIT [OPTION] ## S.No.<=50011 S.No.;<=50011 OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
406 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258196300
|
[1] |
KIT TIMER,OPC
|
0.0000(lbs); 0.000
|
| 020. |
TD06030500
|
[1] |
TIMER,OPC
|
0.0880(lbs); 0.040
|
| 030. |
0105350625
|
[1] |
HEX.BOLT
|
0.0154(lbs); 0.007
|
| 040. |
0275150060
|
[1] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
| 050. |
0401550060
|
[1] |
WASHER,PLAIN
|
0.0132(lbs); 0.006
|
| 060. |
K258163290
|
[1] |
WIRE HARNESS,OPC
|
0.0660(lbs); 0.030
|
| 070. |
K112261230
|
[1] |
CABLE(TIE)
|
0.0022(lbs); 0.001
|
| 080. |
99999-99999
|
[1] |
MANUAL,TIMER OPC
|
0.0000(lbs); 0.000
|
