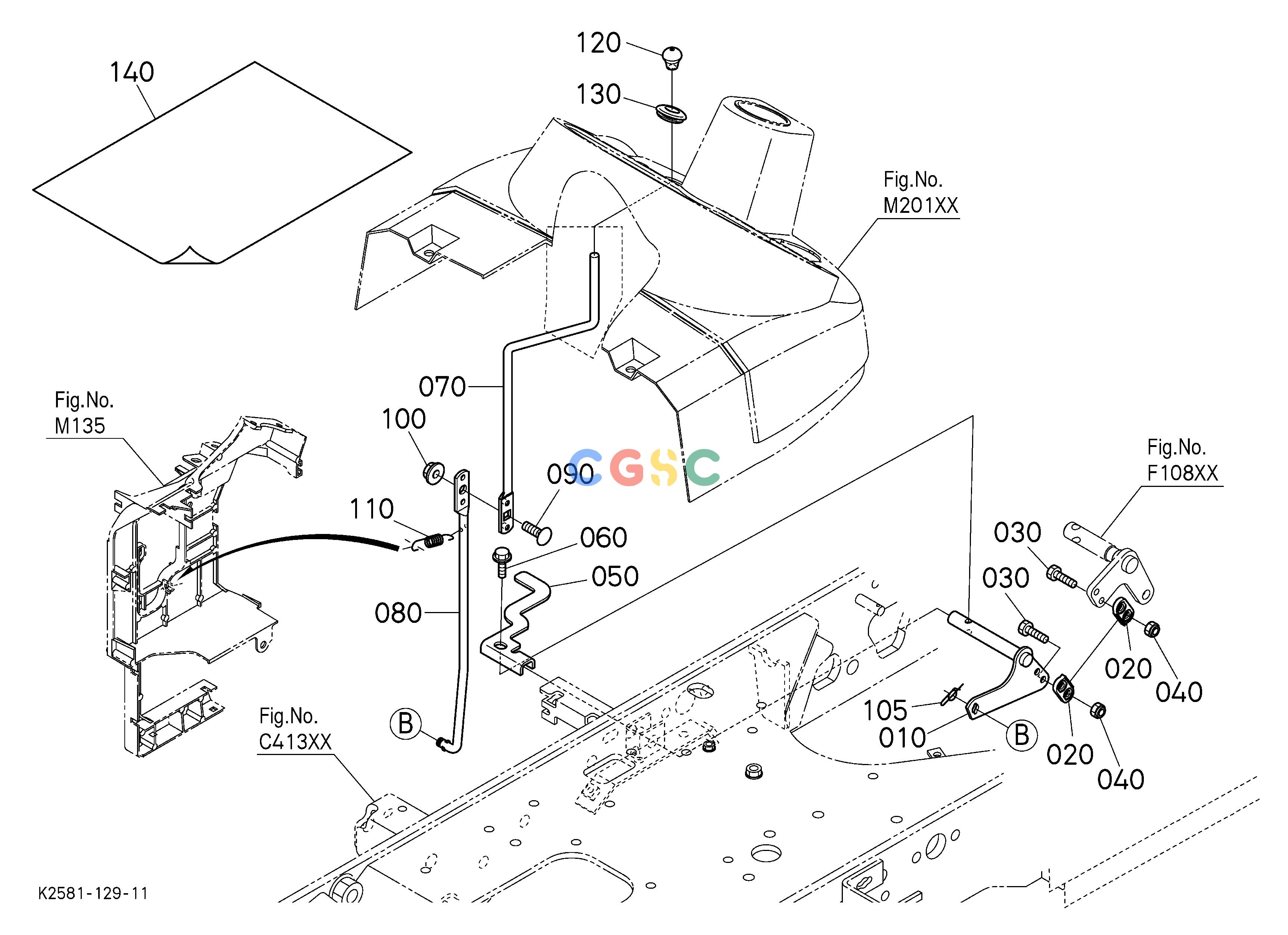

久保田零件查询U83300 CRUISE CONTROL KIT [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
483 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258143413
|
[1] |
ARM CRUISE
|
0.0000(lbs); 0.000
|
| 010. |
K258143414
|
[1] |
ARM CRUISE
|
0.0000(lbs); 0.000
|
| 020. |
K257143420
|
[2] |
LOCK CRUISE
|
0.0286(lbs); 0.013
|
| 020. |
K257143423
|
[2] |
LOCK CRUISE
|
0.0330(lbs); 0.015
|
| 020. |
K257143424
|
[2] |
LOCK CRUISE
|
0.0330(lbs); 0.015
|
| 030. |
0105350616
|
[4] |
BOLT
|
0.0110(lbs); 0.005
|
| 040. |
0255250060
|
[4] |
NUT LOCK
|
0.0044(lbs); 0.002
|
| 050. |
K258143430
|
[1] |
ARM RELEASE
|
0.1760(lbs); 0.080
|
| 060. |
0175450612
|
[1] |
BOLT FLANGE
|
0.0110(lbs); 0.005
|
| 070. |
K258143530
|
[1] |
ROD CRUISE UPPER
|
0.0000(lbs); 0.000
|
| 080. |
K250143522
|
[1] |
ROD CRUISE UNDER
|
0.0000(lbs); 0.000
|
| 090. |
K112291330
|
[1] |
BOLT SHORT SQU.NECK
|
0.0000(lbs); 0.000
|
| 100. |
0275150080
|
[1] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 105. |
K121191120
|
[1] |
RUE RING COTTER
|
0.0022(lbs); 0.001
|
| 110. |
K258143540
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 120. |
K258143560
|
[1] |
GRIP
|
0.0000(lbs); 0.000
|
| 130. |
K258143570
|
[1] |
COVER ROD
|
0.0110(lbs); 0.005
|
| 140. |
9999999999
|
[1] |
MANUAL INSTRUCTION
|
0.0000(lbs); 0.000
|
