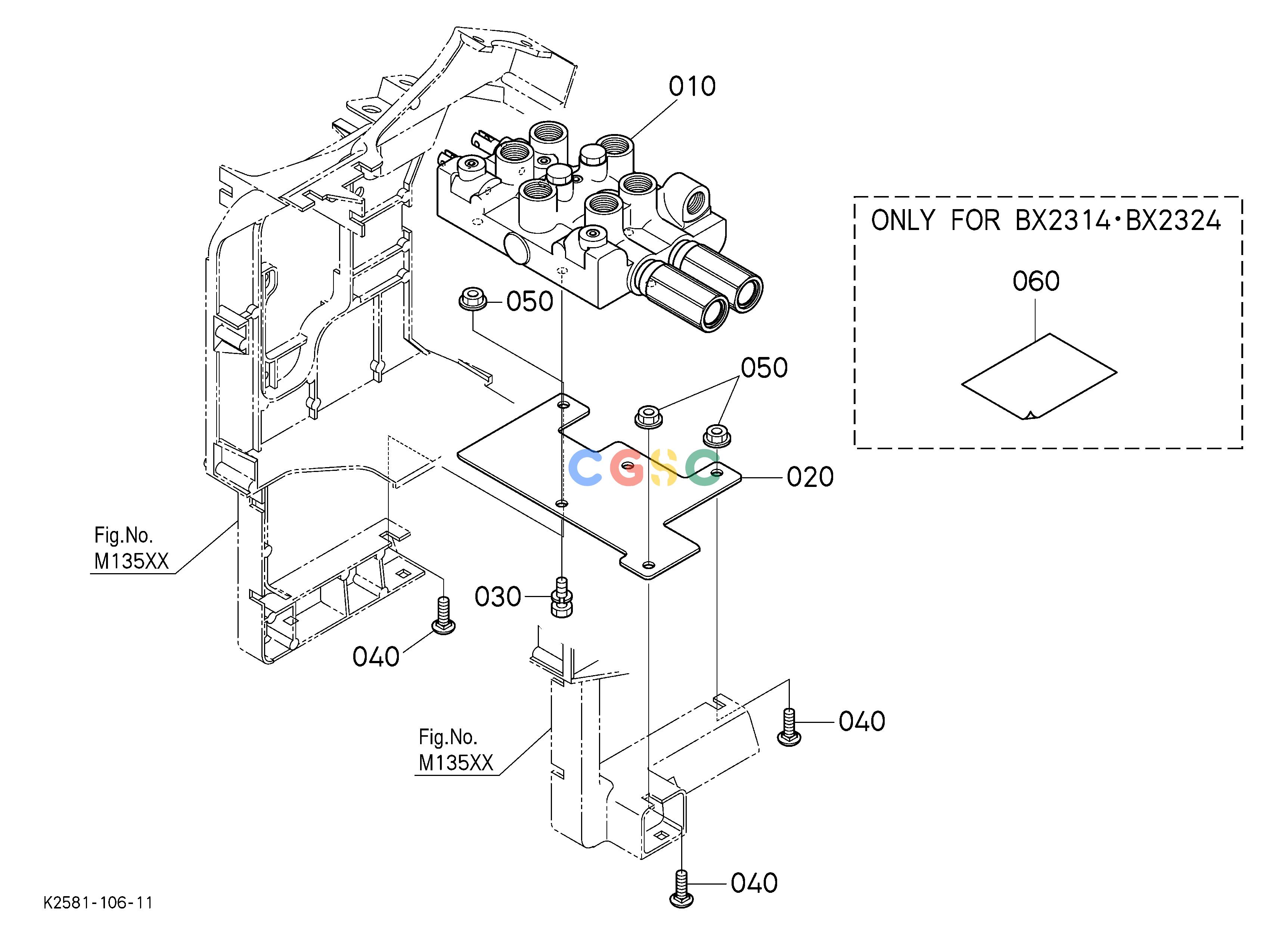

久保田零件查询U95001 FRONT CONTROL VALVE KIT(VALVE) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
275 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW24700100
|
[1] |
ASSY VALVE,CONTROL
|
15.5760(lbs); 7.080
|
| 010. |
YW24700102
|
[1] |
VALVE,CONTROL
|
14.5200(lbs); 6.600
|
| 020. |
7J61261110
|
[1] |
STAY,VALVE
|
0.0000(lbs); 0.000
|
| 030. |
0112360814
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 040. |
K112291330
|
[3] |
BOLT(SHORT SQ. NECK,M8 1.25)
|
0.0000(lbs); 0.000
|
| 050. |
0275150080
|
[3] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 060. |
7J61296390
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
| 060. |
7J61296393
|
[1] |
MANUAL,INSTRUCTION
|
0.0000(lbs); 0.000
|
