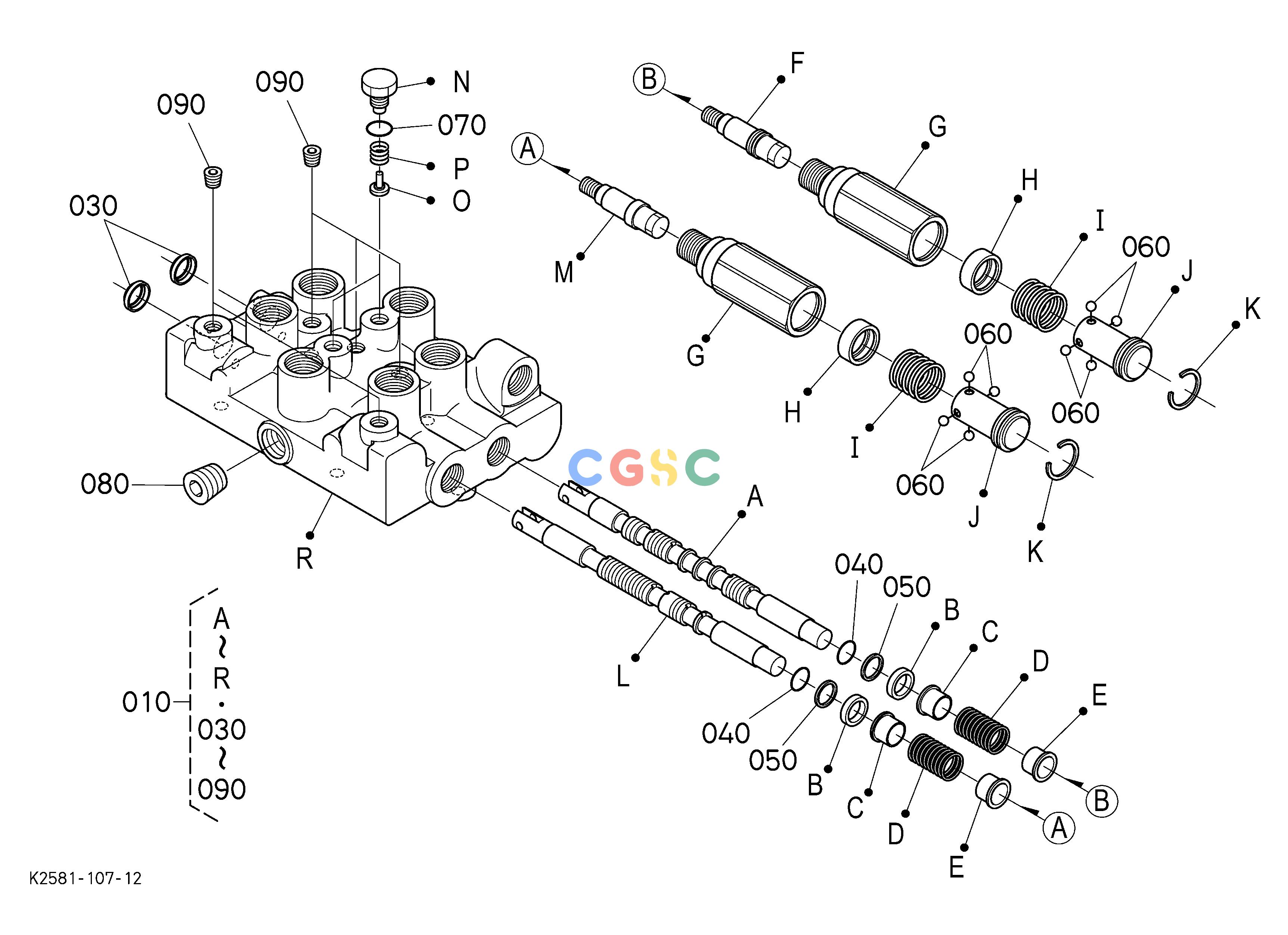

久保田零件查询U95002 FRONT CONTROL VALVE KIT(VALVE) [COMP.PARTS] [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
348 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
YW24700100
|
[1] |
ASSY VALVE,CONTROL
|
15.5760(lbs); 7.080
|
| 010. |
YW24700102
|
[1] |
VALVE,CONTROL
|
14.5200(lbs); 6.600
|
| 030. |
YW07700610
|
[2] |
SEAL,DUST
|
0.0022(lbs); 0.001
|
| 040. |
0481700140
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 050. |
3407666250
|
[2] |
RING,BACK UP
|
0.0022(lbs); 0.001
|
| 060. |
0771501603
|
[8] |
BALL
|
0.0220(lbs); 0.010
|
| 070. |
0481700100
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
YT23200720
|
[1] |
PLUG
|
0.0154(lbs); 0.007
|
| 090. |
YT10700480
|
[5] |
PLUG
|
0.0066(lbs); 0.003
|
