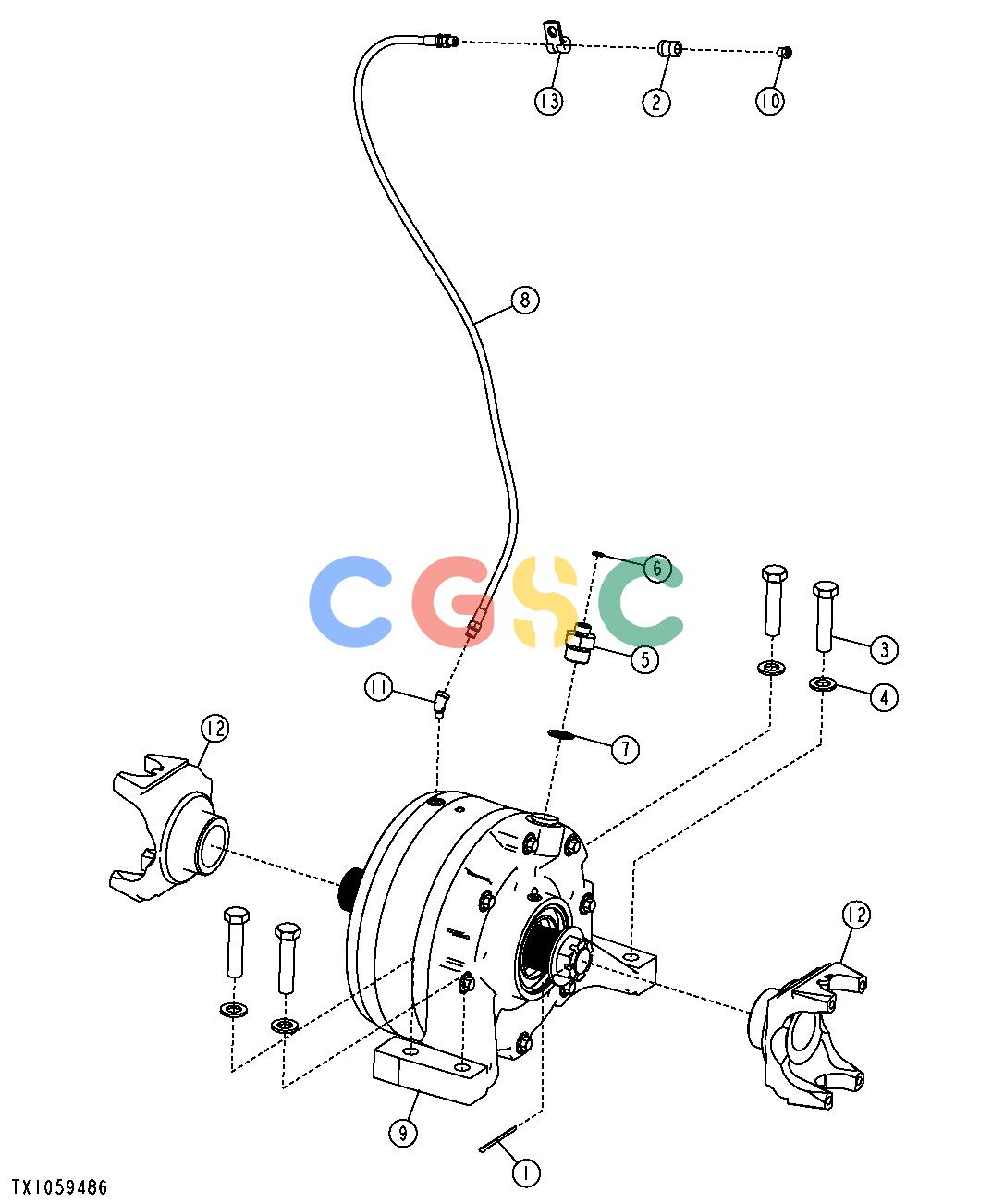

约翰迪尔零件查询RE160302 - AXLE Park Brake MountingEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
11M7025
|
[1] |
Cotter Pin
|
|
| 2. |
15H84
|
[1] |
Coupling
|
|
| 3. |
19M7719
|
[4] |
Cap Screw
|
|
| 4. |
24M7338
|
[4] |
Washer
|
|
| 5. |
38H1338
|
[1] |
Adapter Fitting
|
|
| 6. |
T77613
|
[1] |
O-Ring
|
|
| 7. |
U12547
|
[1] |
O-Ring
|
|
| 8. |
AT207022
|
[1] |
Hydraulic Hose
|
|
| 9. |
........
|
[1] |
Brake
|
|
| 9. |
AT335461
|
[1] |
Brake
|
|
| 10. |
AT208411
|
[1] |
Pressure Relief Valve
|
|
| 11. |
M45937
|
[1] |
Elbow Fitting
|
|
| 12. |
T175448
|
[2] |
Universal Joint Yoke
|
|
| 13. |
T78974
|
[1] |
Clamp
|
|
