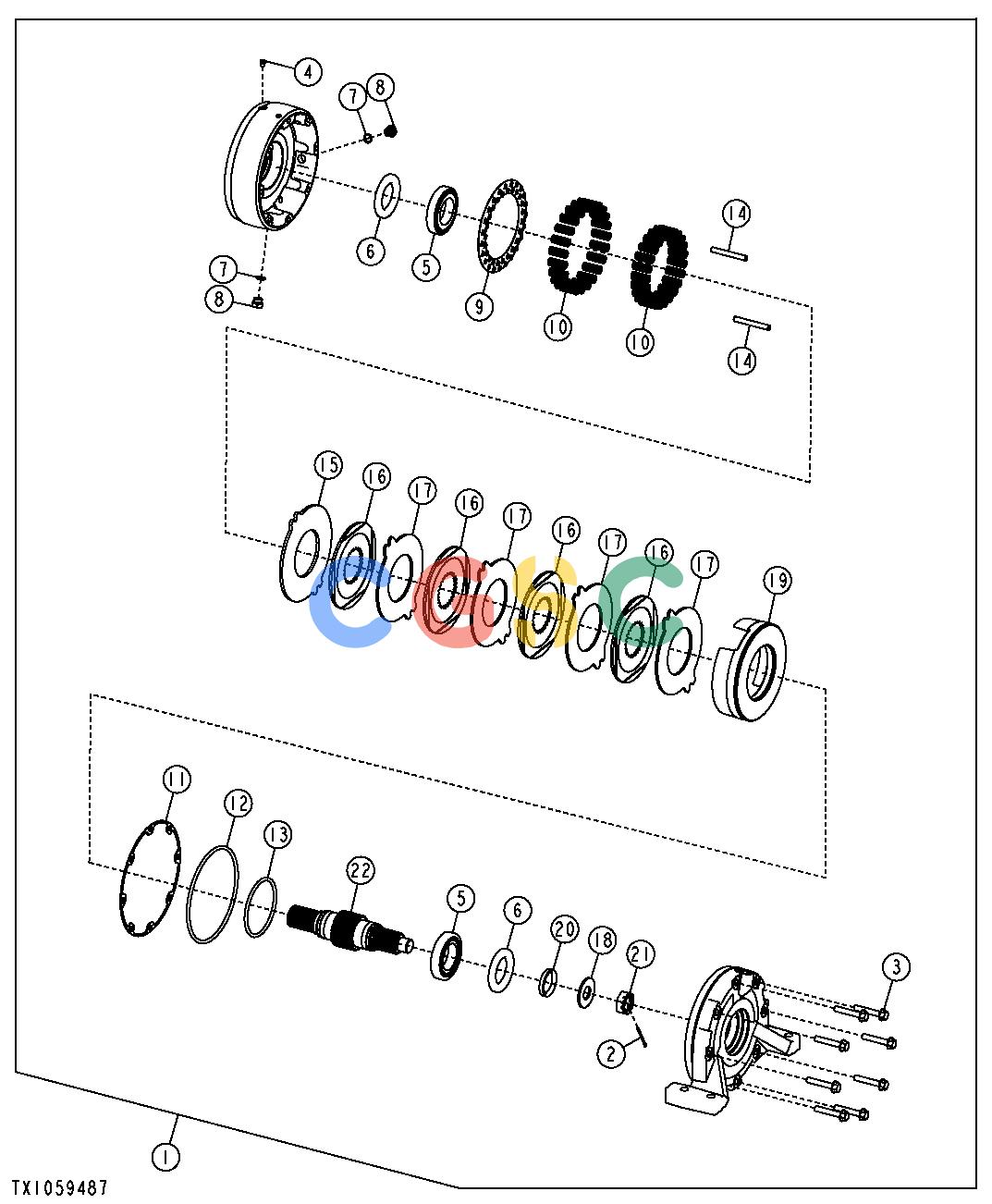

约翰迪尔零件查询RE160302 - AXLE Park BrakeEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
842 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[1] |
Brake
|
|
| 2. |
11M7025
|
[1] |
Cotter Pin
|
|
| 3. |
19M7817
|
[8] |
Screw
|
|
| 4. |
AT208411
|
[1] |
Pressure Relief Valve
|
|
| 5. |
AT209495
|
[2] |
Bearing
|
|
| 6. |
AT225728
|
[2] |
Seal
|
|
| 7. |
R26375
|
[2] |
O-Ring
|
|
| 8. |
R39112
|
[2] |
Fitting
|
|
| 9. |
T167840
|
[1] |
Retainer
|
|
| 10. |
T167841
|
[46] |
Compression Spring
|
|
| 11. |
T167842
|
[1] |
Gasket
|
|
| 12. |
T167843
|
[1] |
O-Ring
|
|
| 13. |
T167845
|
[1] |
O-Ring
|
|
| 14. |
T167943
|
[2] |
Dowel Pin
|
|
| 15. |
T167980
|
[1] |
Disk With Outer Spline
|
|
| 16. |
T167981
|
[4] |
Disk With Inner Spline
|
|
| 17. |
T167982
|
[4] |
Disk With Outer Spline
|
|
| 18. |
T170582
|
[1] |
Washer
|
|
| 19. |
T170607
|
[1] |
Piston
|
|
| 20. |
T173407
|
[1] |
Spacer
|
|
| 21. |
T167848
|
[1] |
Flange Nut
|
|
| 21. |
T226800
|
[1] |
Flange Nut
|
|
| 22. |
........
|
[1] |
Universal Driveshaft
|
|
| 22. |
T226803
|
[1] |
Universal Driveshaft
|
|
