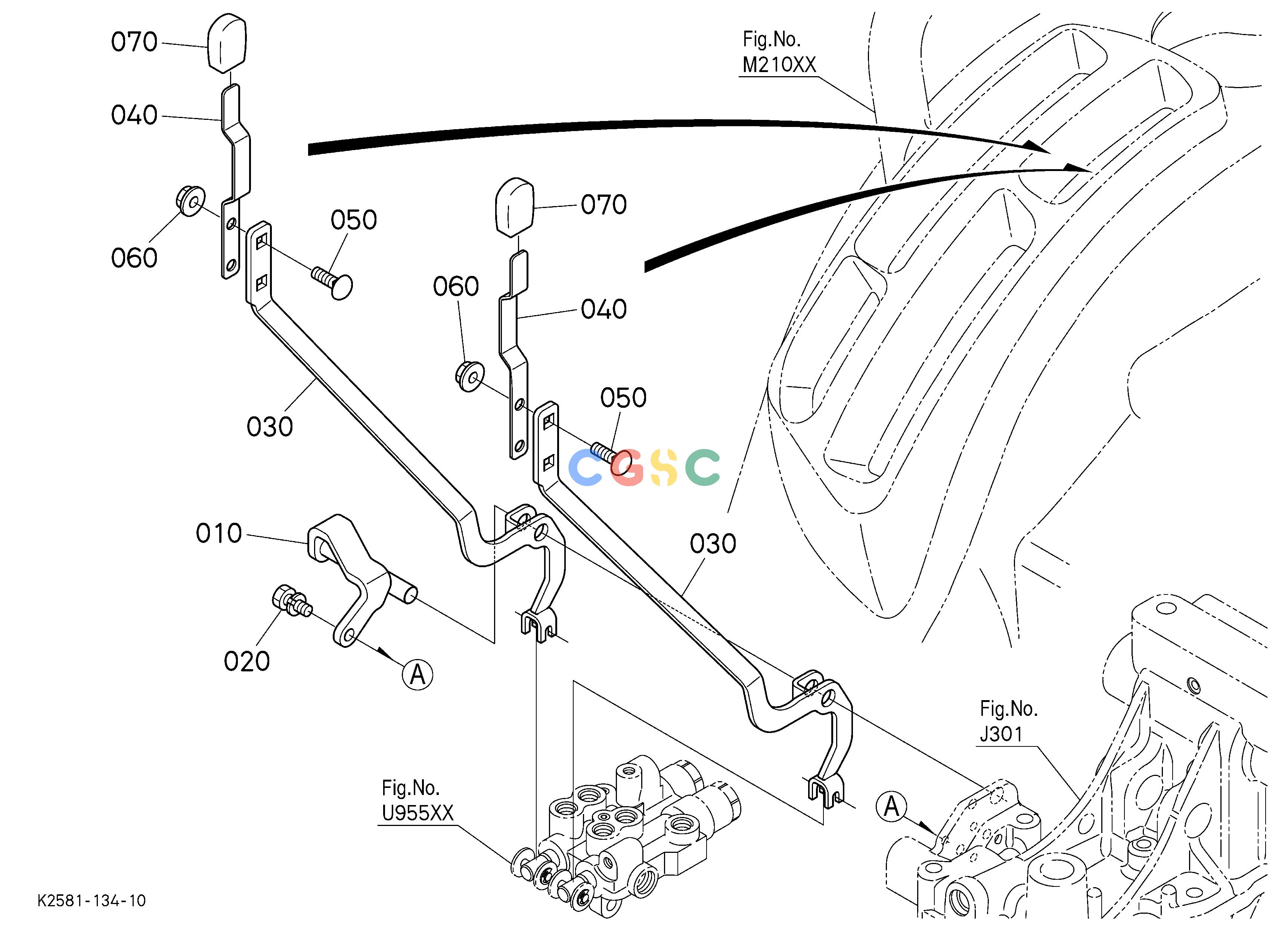

久保田零件查询U95502 REAR CONTROL VALVE KIT(LEVER) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
943 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258337250
|
[1] |
STAY AUX.CONT.VALVE
|
0.0000(lbs); 0.000
|
| 020. |
0112350820
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 030. |
K258337310
|
[2] |
LEVER LOWER AUX.
|
0.0000(lbs); 0.000
|
| 030. |
K258337313
|
[2] |
LEVER LOWER AUX.
|
0.0000(lbs); 0.000
|
| 040. |
K256337350
|
[2] |
LEVER UPPER AUX.
|
0.0682(lbs); 0.031
|
| 040. |
K256337353
|
[2] |
LEVER UPPER AUX.
|
0.0682(lbs); 0.031
|
| 050. |
K112291320
|
[4] |
BOLT SHORT SQU.NECK
|
0.0220(lbs); 0.010
|
| 060. |
0275150080
|
[4] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 070. |
K256337370
|
[2] |
GRIP AUX.CONTR.LEVER
|
0.0220(lbs); 0.010
|
