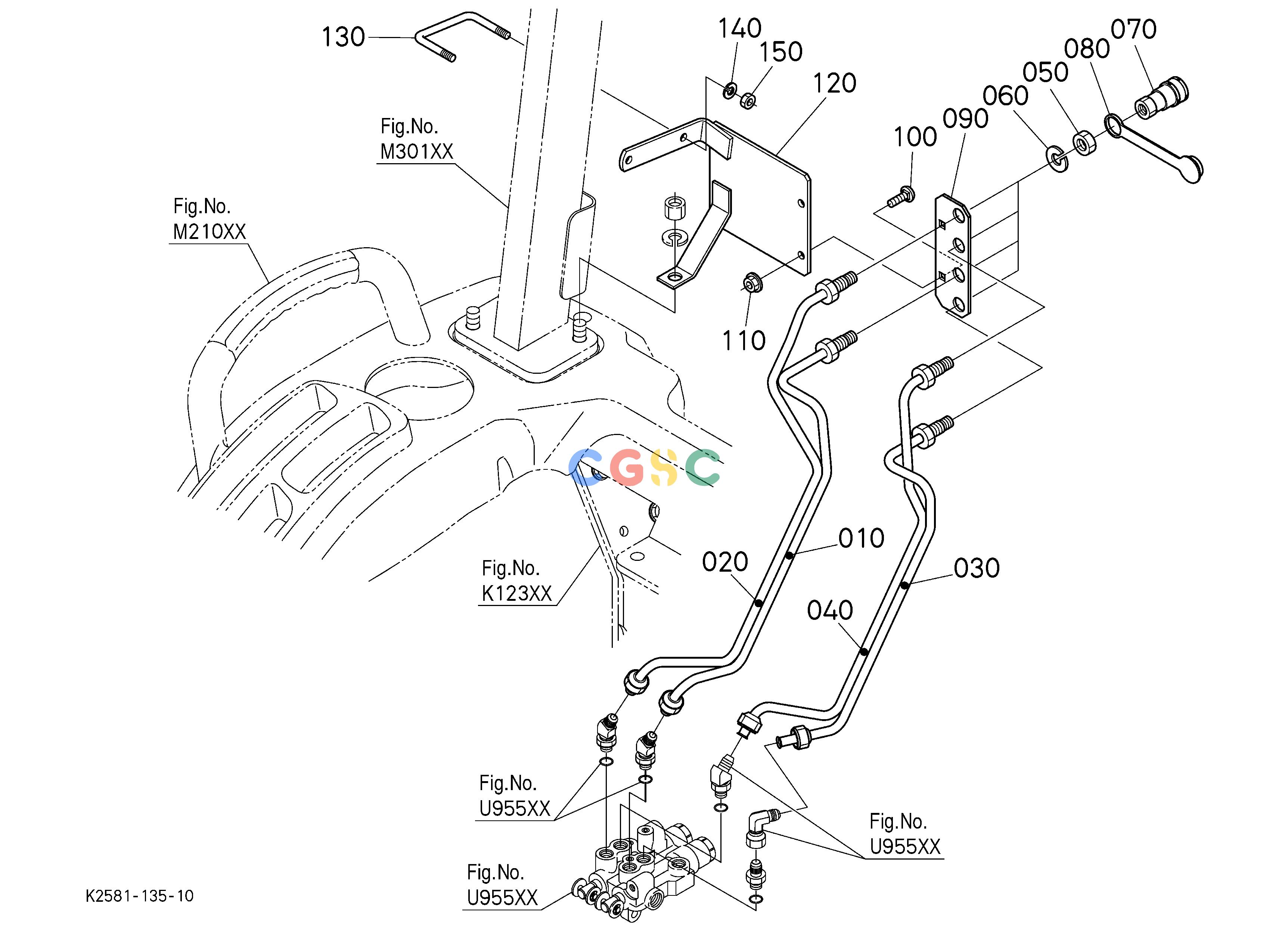

久保田零件查询U95503 REAR CONTROL VALVE KIT(PIPE) [OPTION] OPTIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
343 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258137610
|
[1] |
PIPE
|
0.0000(lbs); 0.000
|
| 020. |
K258137620
|
[1] |
PIPE
|
0.0000(lbs); 0.000
|
| 030. |
K258137630
|
[1] |
PIPE
|
0.0000(lbs); 0.000
|
| 040. |
K258137640
|
[1] |
PIPE
|
0.0000(lbs); 0.000
|
| 050. |
0217450160
|
[4] |
NUT
|
0.0484(lbs); 0.022
|
| 060. |
0451260160
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 070. |
7553666320
|
[4] |
COUPLER
|
0.2860(lbs); 0.130
|
| 070. |
7J61266320
|
[4] |
COUPLER
|
0.0000(lbs); 0.000
|
| 080. |
7J24566340
|
[4] |
PLUG DUST
|
0.0220(lbs); 0.010
|
| 090. |
K258137660
|
[1] |
BRACKET COUPLER
|
0.0000(lbs); 0.000
|
| 100. |
K112291320
|
[2] |
BOLT SHORT SQU.NECK
|
0.0220(lbs); 0.010
|
| 110. |
0275150080
|
[2] |
NUT FLANGE
|
0.0132(lbs); 0.006
|
| 120. |
K258137670
|
[1] |
BRACKET COUPLER
|
0.0000(lbs); 0.000
|
| 130. |
K256196240
|
[1] |
ROD U THREAD
|
0.1496(lbs); 0.068
|
| 140. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 150. |
0205450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
