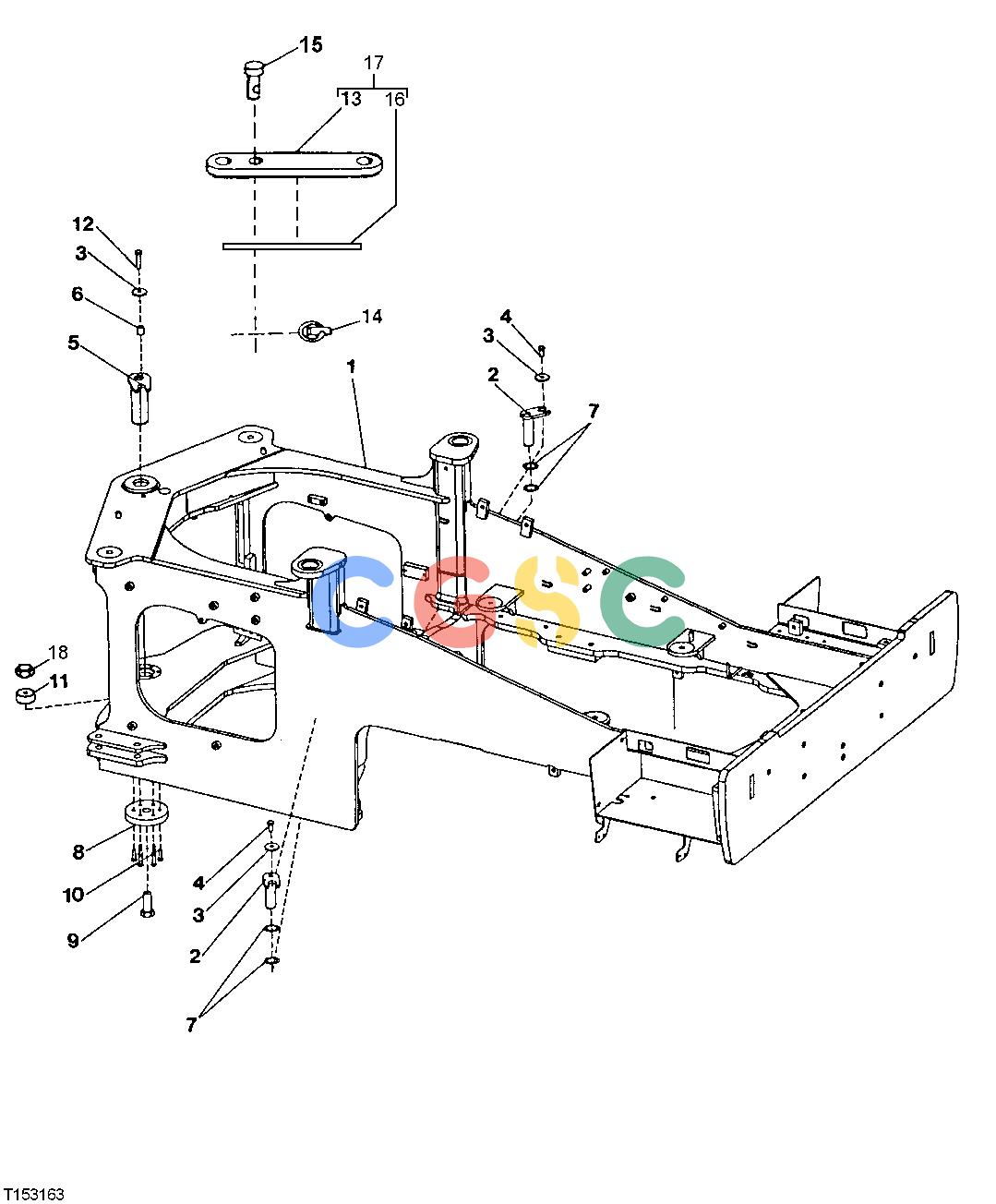

约翰迪尔零件查询RE160302 - AXLE ENGINE FRAME (S.N. -611218)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
773 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[1] |
Frame
|
|
| 2. |
AT345966
|
[2] |
Pin
|
|
| 3. |
T176064
|
[3] |
Bushing
|
|
| 4. |
19M7488
|
[2] |
Cap Screw
|
|
| 5. |
AT206751
|
[1] |
Pin
|
|
| 6. |
T239722
|
[1] |
Sleeve
|
|
| 7. |
24H1576
|
[3] |
Washer
|
|
| 7. |
24H1577
|
[4] |
Washer
|
|
| 8. |
T182446
|
[1] |
Cover
|
|
| 9. |
19M9188
|
[1] |
Cap Screw
|
|
| 10. |
19M7363
|
[6] |
Cap Screw
|
|
| 11. |
T182265
|
[1] |
Bushing
|
|
| 12. |
19M7488
|
[1] |
Cap Screw
|
|
| 13. |
AT226156
|
[1] |
Bar
|
|
| 14. |
AA21292
|
[2] |
Quick Lock Pin
|
|
| 15. |
R125450
|
[2] |
Pin
|
|
| 16. |
T182192
|
[2] |
Safety Sign
|
|
| 17. |
AT226156
|
[1] |
Bar
|
|
| 18. |
14M7290
|
[1] |
Nut
|
|
