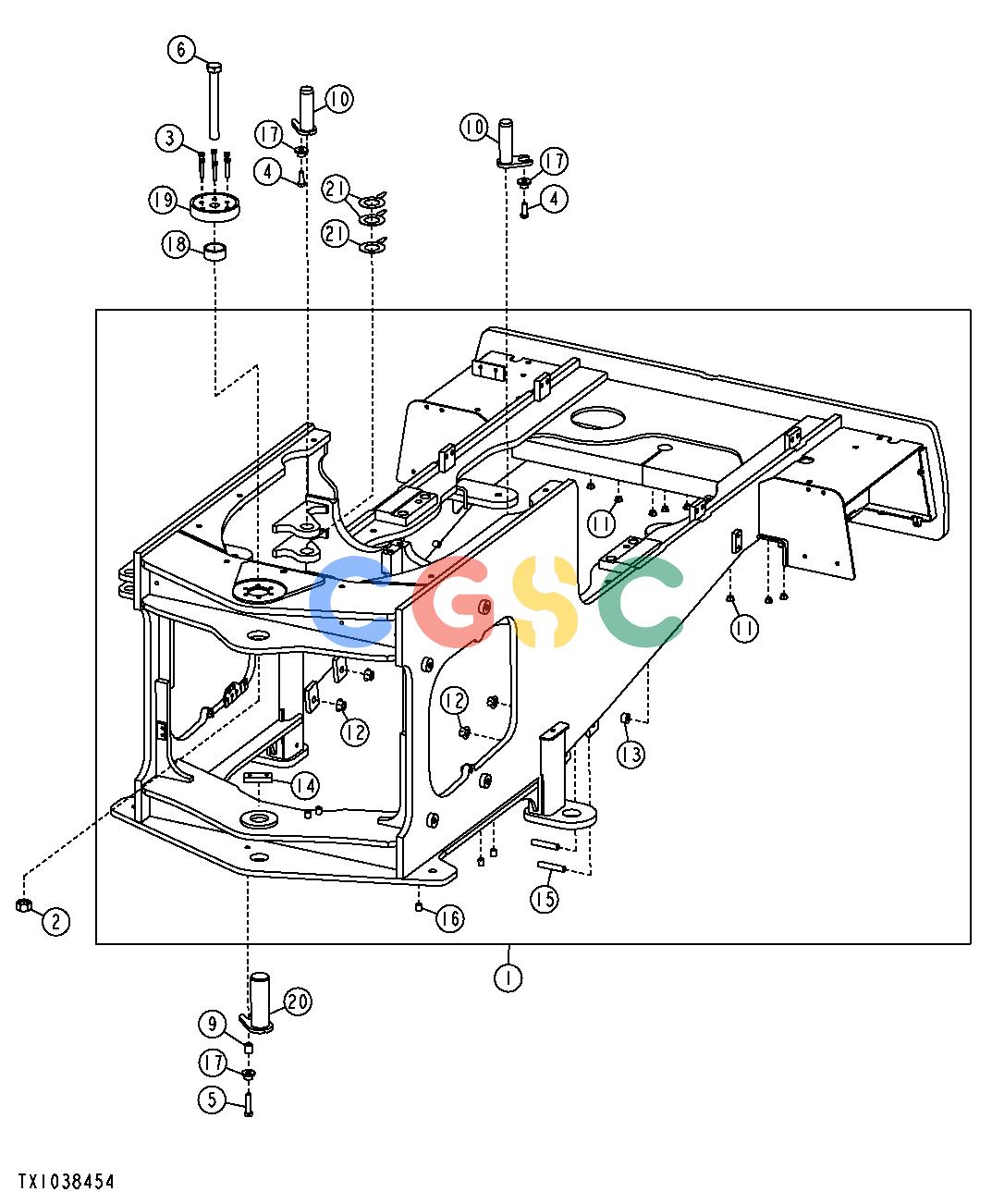

约翰迪尔零件查询RE160302 - AXLE ENGINE FRAME (S.N. 611219-)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
966 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
........
|
[1] |
Frame
|
|
| 2. |
14M7290
|
[1] |
Nut
|
|
| 3. |
19M7363
|
[6] |
Cap Screw
|
|
| 4. |
19M7488
|
[2] |
Cap Screw
|
|
| 5. |
19M7719
|
[1] |
Cap Screw
|
|
| 6. |
19M9188
|
[1] |
Cap Screw
|
|
| 9. |
T239722
|
[1] |
Sleeve
|
|
| 10. |
AT345966
|
[2] |
Pin
|
|
| 11. |
14M7443
|
[10] |
Flange Nut
|
|
| 12. |
14M7474
|
[4] |
Flange Nut
|
|
| 13. |
T125546
|
[1] |
Bushing
|
|
| 14. |
T133290
|
[1] |
Strap
|
|
| 15. |
T195605
|
[2] |
Boss
|
|
| 16. |
T188239
|
[14] |
Bushing
|
|
| 17. |
T176064
|
[3] |
Bushing
|
|
| 18. |
T182265
|
[1] |
Bushing
|
|
| 19. |
T182446
|
[1] |
Cover
|
|
| 20. |
AT206751
|
[1] |
Pin
|
|
| 21. |
T223740
|
[6] |
Shim
|
|
