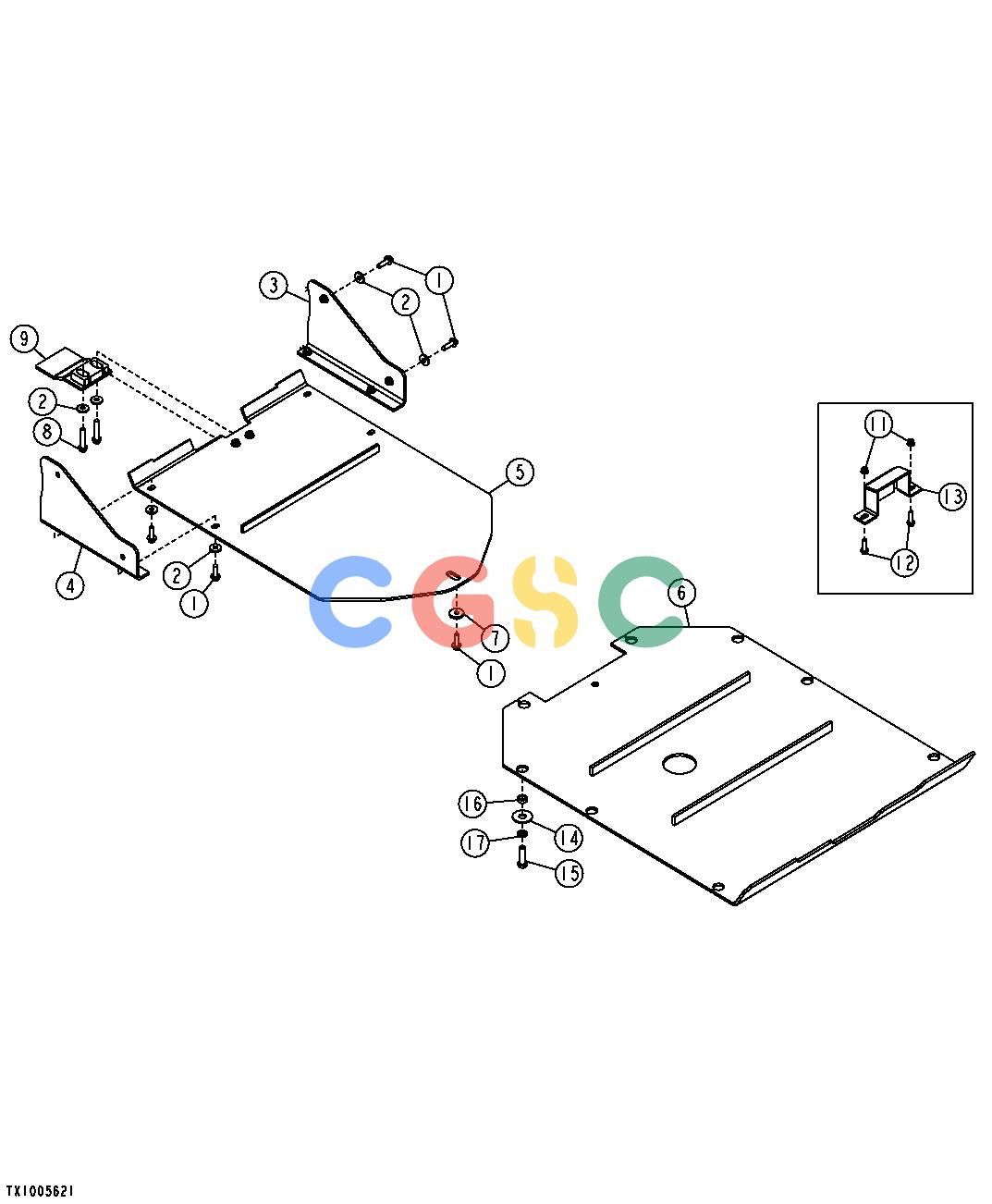

约翰迪尔零件查询RE160302 - AXLE TRANSMISSION BOTTOM GUARD AND FRONT BOTTOM GUARD (S.N. -611218)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
462 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7791
|
[9] |
Bolt
|
|
| 2. |
24M7226
|
[10] |
Washer
|
|
| 3. |
AT207433
|
[1] |
Support
|
|
| 4. |
AT207432
|
[1] |
Support
|
|
| 5. |
AT209083
|
[1] |
Guard
|
|
| 6. |
AT227860
|
[1] |
Guard
|
|
| 7. |
T20217
|
[1] |
Washer
|
|
| 8. |
19M7817
|
[2] |
Screw
|
|
| 9. |
AT221332
|
[1] |
Guard
|
|
| 11. |
14M7400
|
[2] |
Lock Nut
|
|
| 12. |
19M7804
|
[2] |
Screw
|
|
| 13. |
T181642
|
[1] |
Guard
|
|
| 14. |
24M7277
|
[8] |
Washer
|
|
| 15. |
19M7489
|
[8] |
Cap Screw
|
|
| 16. |
T197569
|
[8] |
Bushing
|
|
| 17. |
24M7338
|
[8] |
Washer
|
|
