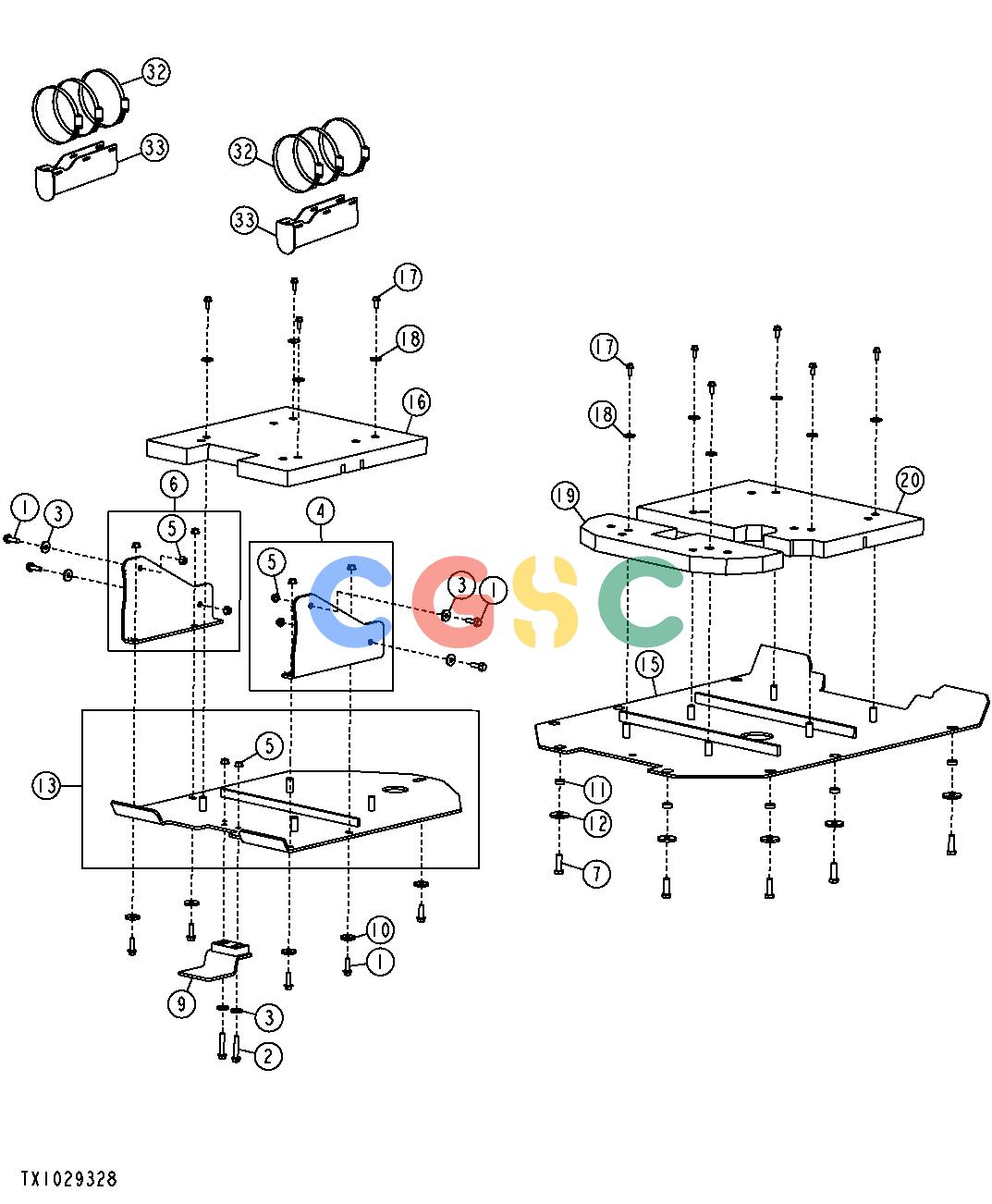

约翰迪尔零件查询RE160302 - AXLE TRANSMISSION BOTTOM GUARD AND FRONT BOTTOM GUARD (S.N. 611219-)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
506 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7791
|
[9] |
Bolt
|
|
| 2. |
19M7817
|
[2] |
Screw
|
|
| 3. |
24M7226
|
[6] |
Washer
|
|
| 4. |
AT207432
|
[1] |
Support
|
|
| 5. |
14M7443
|
[10] |
Flange Nut
|
|
| 6. |
AT207433
|
[1] |
Support
|
|
| 7. |
19M7409
|
[8] |
Cap Screw
|
|
| 9. |
AT317472
|
[1] |
Guard
|
|
| 10. |
T20217
|
[5] |
Washer
|
|
| 11. |
T197569
|
[8] |
Bushing
|
|
| 12. |
T146246
|
[8] |
Washer
|
|
| 13. |
AT317173
|
[1] |
Guard
|
|
| 15. |
AT317068
|
[1] |
Guard
|
|
| 16. |
T225908
|
[1] |
Isolator
|
|
| 17. |
19M7785
|
[10] |
Screw
|
|
| 18. |
24M7101
|
[10] |
Washer
|
|
| 19. |
T217482
|
[1] |
Isolator
|
|
| 20. |
T225944
|
[1] |
Isolator
|
|
| 32. |
TY22495
|
[6] |
Hose Clamp
|
|
| 33. |
AT309401
|
[2] |
Cover
|
|
