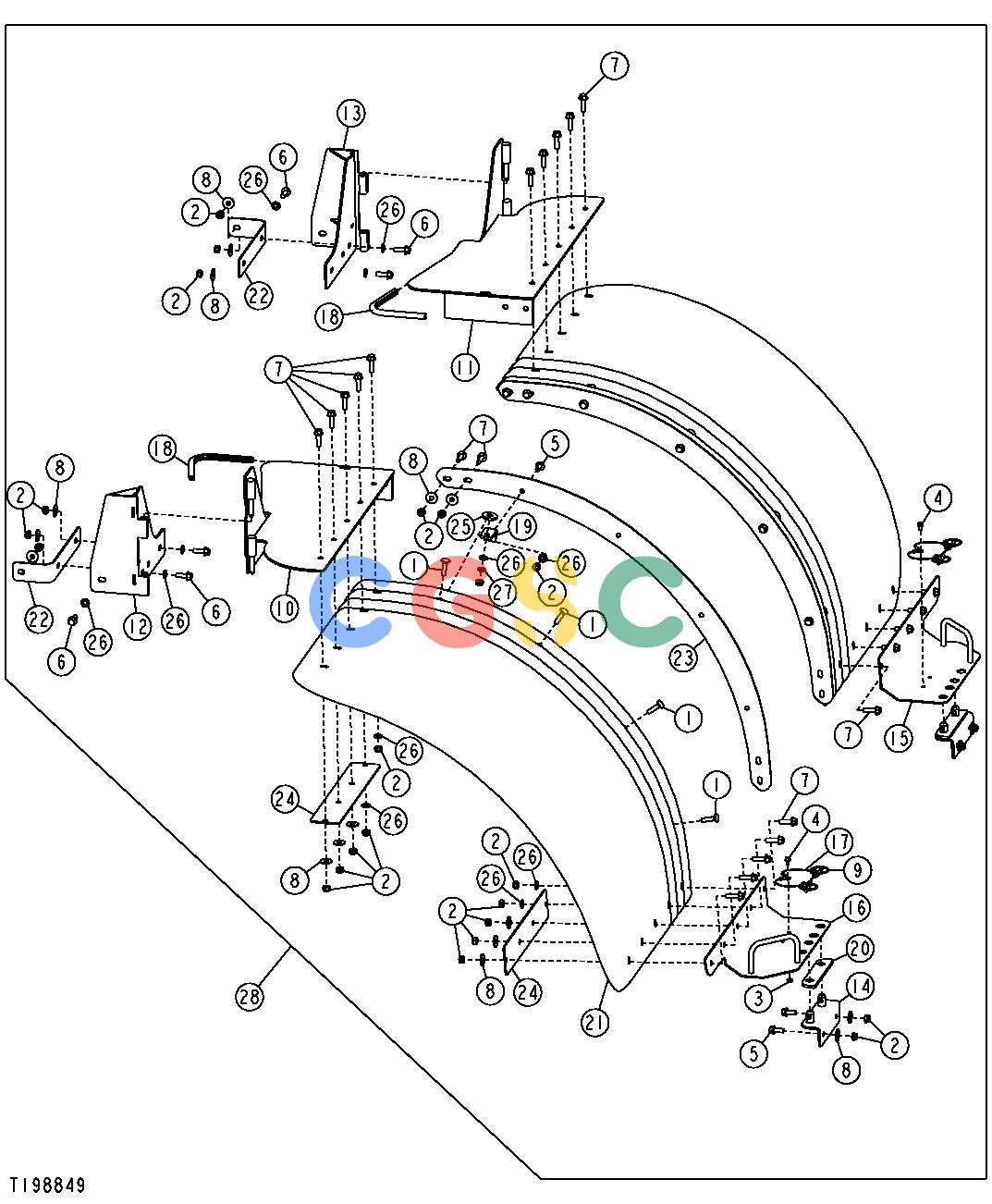

约翰迪尔零件查询RE160302 - AXLE FULL COVERAGE REAR FENDERS (W/O LATCH)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
147 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
03M7195
|
[6] |
Bolt
|
|
| 2. |
14M7167
|
[46] |
Lock Nut
|
|
| 3. |
14M7303
|
[2] |
Flange Nut
|
|
| 4. |
19M7774
|
[2] |
Screw
|
|
| 5. |
19M7785
|
[10] |
Screw
|
|
| 6. |
19M7786
|
[6] |
Screw
|
|
| 7. |
19M7835
|
[24] |
Screw
|
|
| 8. |
24M7296
|
[23] |
Washer
|
|
| 9. |
AA21292
|
[4] |
Quick Lock Pin
|
|
| 10. |
AT305314
|
[1] |
Hinge
|
|
| 11. |
AT305315
|
[1] |
Hinge
|
|
| 12. |
AT301819
|
[1] |
Hinge
|
|
| 13. |
AT301820
|
[1] |
Hinge
|
|
| 14. |
AT304159
|
[2] |
Bracket
|
|
| 15. |
AT304160
|
[1] |
Handle
|
|
| 16. |
AT304161
|
[1] |
Handle
|
|
| 17. |
AT305830
|
[2] |
Wire Rope
|
|
| 18. |
........
|
[1] |
Isolator
|
|
| 19. |
T176357
|
[6] |
Angle
|
|
| 20. |
T201305
|
[2] |
Pad
|
|
| 21. |
T204302
|
[2] |
Fender
|
|
| 22. |
........
|
[2] |
Angle
|
|
| 23. |
T203965
|
[2] |
Plate
|
|
| 24. |
T204644
|
[4] |
Plate
|
|
| 25. |
T22381
|
[6] |
Washer
|
|
| 26. |
24M7239
|
[34] |
Washer
|
|
| 27. |
14M7152
|
[6] |
Nut
|
|
| 28. |
........
|
[1] |
Field Installation Kit
|
|
