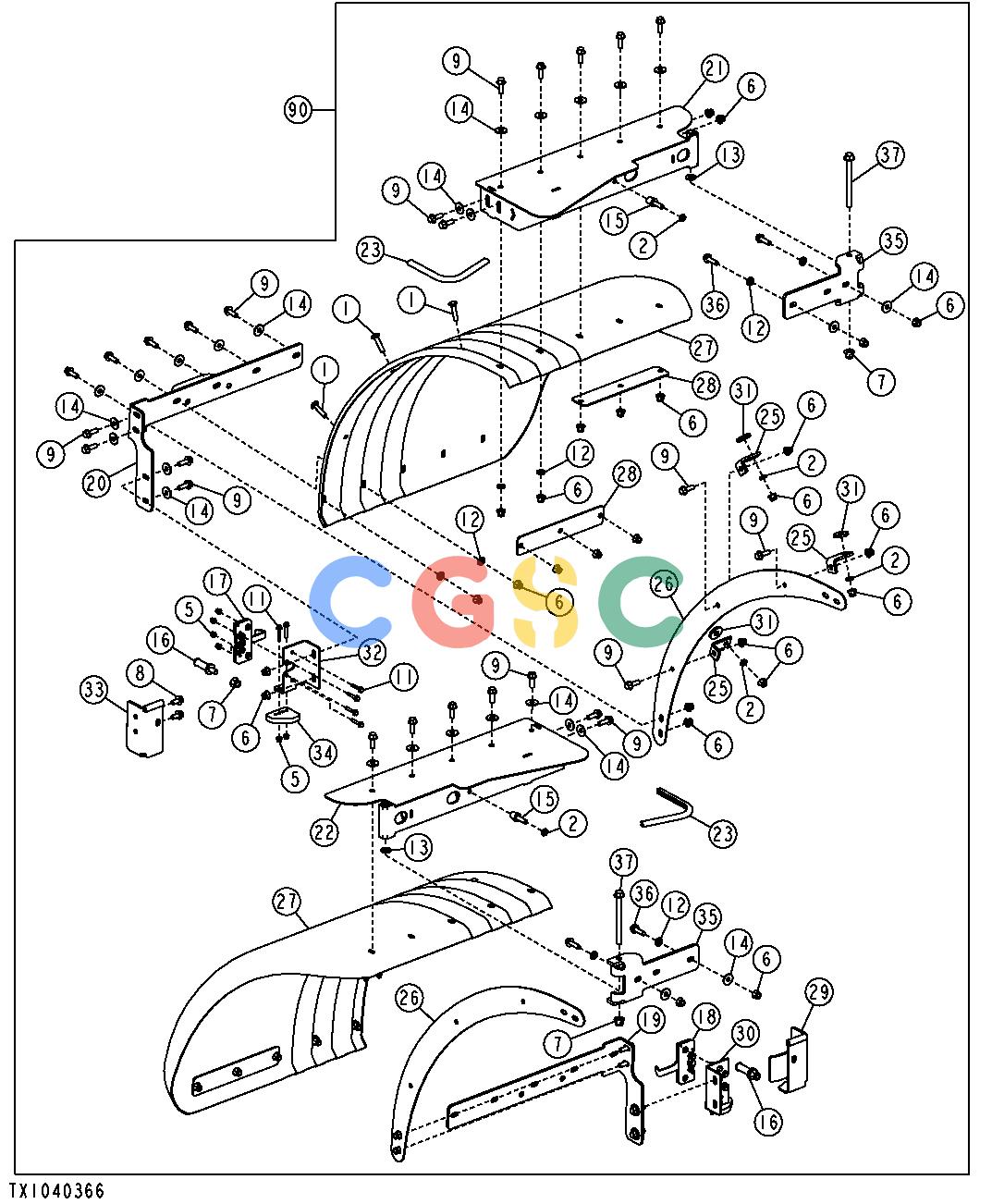

约翰迪尔零件查询RE160302 - AXLE FULL COVERAGE REAR FENDERS (W/LATCH)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 944 次

Pos.	Part No	Qty	Parts name	Comments
1.	03M7195	[6]	Bolt	M10 X 45
2.	14M7152	[8]	Nut	M10
5.	14M7397	[12]	Lock Nut	M6
6.	14M7400	[48]	Lock Nut	M10
7.	14M7401	[4]	Lock Nut	M12
8.	19M7784	[4]	Screw	M10 X 20
9.	19M7786	[38]	Screw	M10 X 30
11.	19M7833	[12]	Screw	M6 X 35
12.	24M7239	[12]	Washer	10.700 X 21 X 2.500 MM
13.	24M7240	[2]	Washer	13 X 25 X 3 MM
14.	24M7296	[36]	Washer	10.500 X 30 X 2.500 MM
15.	AT219974	[2]	Bumper
16.	AT301711	[2]	Striker
17.	AT322382	[1]	Latch	(LH)
18.	AT322383	[1]	Latch	(RH)
19.	AT331034	[1]	Bracket	(RH)
20.	AT331036	[1]	Bracket	(LH)
21.	AT397355	[1]	Hinge	(LH) (SUB FOR AT331070)
22.	AT397356	[1]	Hinge	(RH) (SUB FOR AT331071)
23.	........	[2]	Rubber Mount	(MAKE FROM T58056) (CTL 1 FT. (305 MM))
24.	T174271	[1]	Plug	NOT ILLUSTRATED
25.	T176357	[6]	Angle
26.	T203965	[2]	Plate
27.	T204302	[2]	Fender
28.	T204644	[4]	Plate
29.	T221186	[1]	Bracket
30.	T223645	[1]	Bracket
31.	T22381	[6]	Washer
32.	T223814	[1]	Bracket
33.	T224462	[1]	Bracket
34.	T224498	[2]	Pad
35.	T224529	[2]	Bracket
36.	19M7835	[4]	Screw	M10 X 35
37.	19M8737	[2]	Screw	M12 X 140
90.	........	[1]	Field Installation Kit	(AT312172 NLA)
