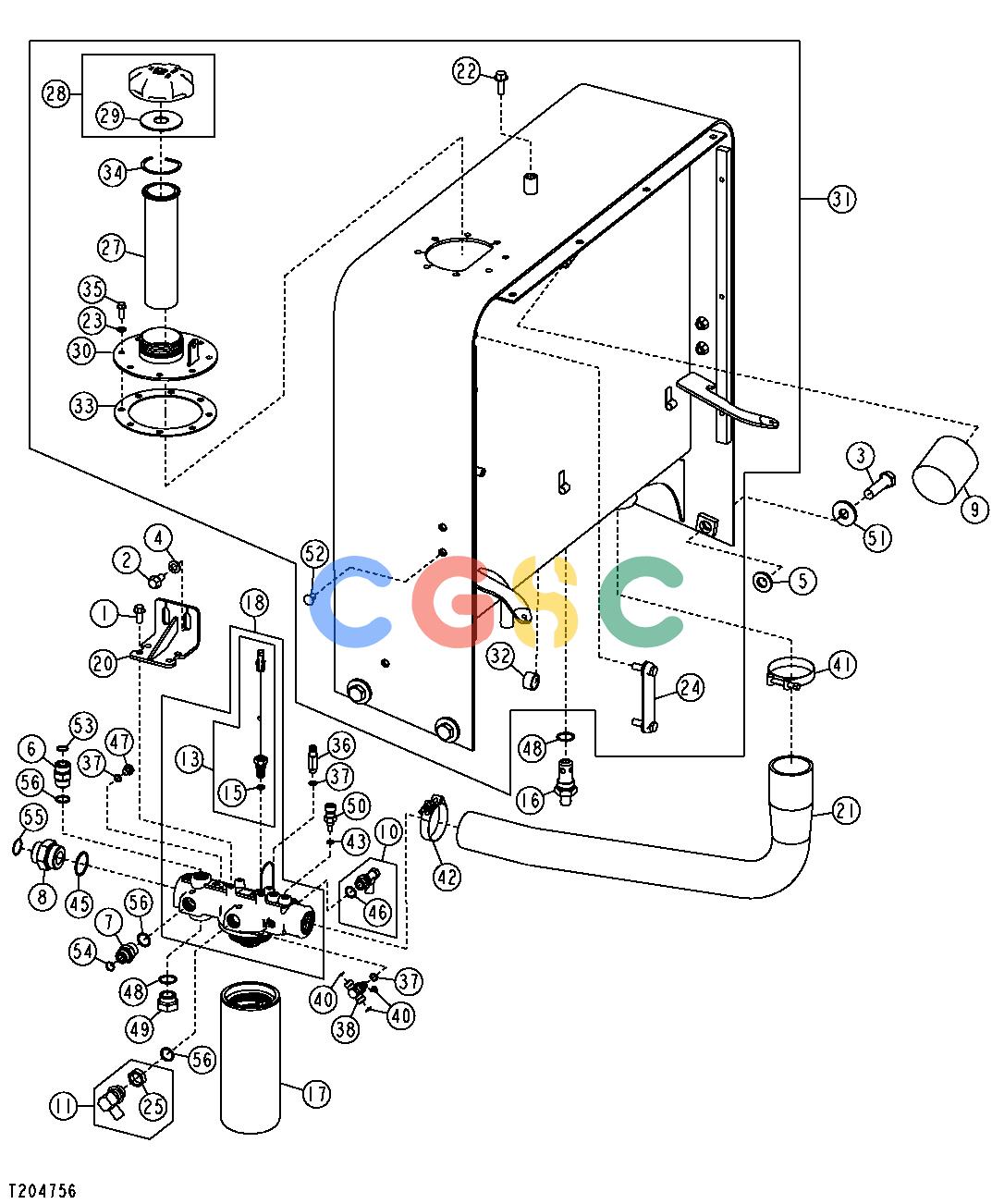

约翰迪尔零件查询RE160302 - AXLE HYDRAULIC OIL RESERVOIR (S.N. -611218)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 650 次

Pos.	Part No	Qty	Parts name	Comments
1.	19M7785	[4]	Screw	M10 X 25
2.	19M7788	[2]	Screw	M12 X 25
3.	19M8639	[4]	Cap Screw	M20 X 70
4.	24M7240	[2]	Washer	13 X 25 X 3 MM
5.	24M7242	[2]	Washer	21.400 X 42 X 5 MM
6.	38H1163	[1]	Adapter Fitting
7.	38H1329	[1]	Adapter Fitting
8.	38H1595	[1]	Adapter Fitting
9.	AM39653	[1]	Oil Filter
10.	AT152180	[1]	Drain Valve
11.	AT21574	[1]	Fitting
13.	AT307045	[1]	Pressure Switch	(SUB FOR AT280924)
15.	P46051	[1]	O-Ring
16.	AT221897	[1]	Check Valve
17.	AT310905	[1]	Oil Filter	(SUB FOR AT228474)
18.	AT224797	[1]	Filter Head
20.	AT228747	[1]	Bracket
21.	AT223658	[1]	Hose
22.	19M7790	[1]	Screw	M12 X 35
23.	24H1136	[8]	Washer	11/32" X 11/16" X 0.065"
24.	AT227279	[1]	Level Gauge
25.	R27390	[1]	Nut
27.	AT161638	[1]	Strainer
28.	AT177950	[1]	Filler Cap
29.	........	[1]	Gasket	(NSEP)
30.	AT225156	[1]	Housing
31.	AT227583	[1]	Hydraulic Reservoir
32.	28H1642	[1]	Bushing	1.049" X 1.315" X 3/4"
33.	T179363	[1]	Gasket
34.	T39155	[1]	Snap Ring
35.	T81403	[8]	Screw
36.	M72389	[1]	Adapter Fitting
37.	R26448	[3]	O-Ring
38.	AT224266	[1]	Tee Fitting
40.	T77613	[3]	O-Ring
41.	RE52702	[1]	Clamp	(SUB FOR AT37476)
42.	AH170895	[1]	Clamp	(SUB FOR AT221359)
43.	R26286	[1]	O-Ring
45.	R26773	[1]	O-Ring
46.	R26906	[1]	O-Ring
47.	R27218	[1]	Fitting Plug
48.	R29936	[2]	O-Ring
49.	R36636	[1]	Fitting Plug
50.	RE38310	[1]	Sensor
51.	T128096	[4]	Washer
52.	T174271	[2]	Plug
53.	T77858	[1]	O-Ring
54.	T77932	[1]	O-Ring
55.	T78612	[1]	O-Ring
56.	U12547	[3]	O-Ring
