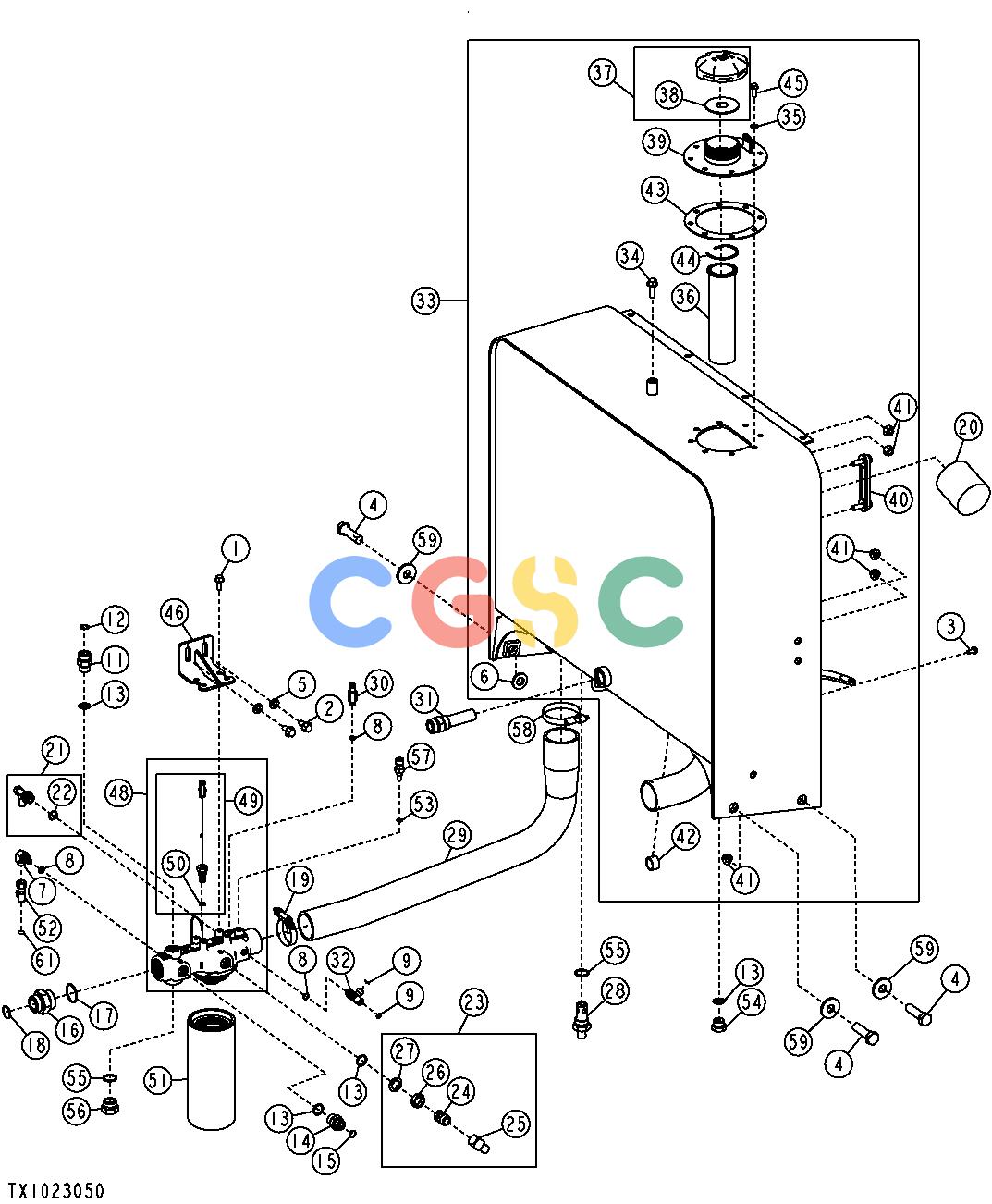

约翰迪尔零件查询RE160302 - AXLE HYDRAULIC OIL RESERVOIR (S.N. 611219-)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 403 次

Pos.	Part No	Qty	Parts name	Comments
1.	19M7785	[4]	Screw	M10 X 25
2.	19M7788	[2]	Screw	M12 X 25
3.	19M7865	[1]	Screw	M8 X 16
4.	19M8639	[4]	Cap Screw	M20 X 70
5.	24M7240	[2]	Washer	13 X 25 X 3 MM
6.	24M7242	[2]	Washer	21.400 X 42 X 5 MM
7.	38H1004	[1]	Elbow Fitting
8.	R26448	[3]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
9.	T77613	[3]	O-Ring	9.250 X 1.780 MM (0.364" X 0.070")
11.	38H1163	[1]	Adapter Fitting
12.	T77858	[1]	O-Ring	18.771 X 1.778 MM (0.739" X 0.070")
13.	U12547	[4]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
14.	38H1329	[1]	Adapter Fitting
15.	T77932	[1]	O-Ring	15.596 X 1.778 MM (0.614" X 0.070")
16.	38H1595	[1]	Adapter Fitting
17.	R26773	[1]	O-Ring	43.688 X 2.997 MM (1.720" X 0.118")
18.	T78612	[1]	O-Ring	29.870 X 1.780 MM (1.176" X 0.070")
19.	AH170895	[1]	Clamp
20.	AM39653	[1]	Oil Filter
21.	AT152180	[1]	Drain Valve
22.	R26906	[1]	O-Ring	19.177 X 2.464 MM (0.755" X 0.097")
23.	AT21574	[1]	Fitting
24.	........	[1]	Fitting	(SUB AT21574) (R27388 NA)
25.	........	[1]	Hose Fitting	(SUB AT18905)
26.	R27390	[1]	Nut	26.975 MM (1-1/16")
27.	........	[1]	Washer	(SUB AT21574) (R27391 NA)
28.	AT221897	[1]	Check Valve
29.	AT223658	[1]	Hose
30.	M72389	[1]	Adapter Fitting
31.	AT219727	[1]	Fitting
32.	AT224266	[1]	Tee Fitting
33.	AT227583	[1]	Hydraulic Reservoir
34.	19M7790	[1]	Screw	M12 X 35
35.	24H1136	[8]	Washer	11/32" X 11/16" X 0.065"
36.	AT161638	[1]	Strainer
37.	AT177950	[1]	Filler Cap
38.	........	[1]	Gasket	(NSEP)
39.	AT225156	[1]	Housing
40.	AT227279	[1]	Level Gauge
41.	14M7443	[8]	Flange Nut	M12
42.	28H1642	[1]	Bushing	1.049" X 1.315" X 3/4"
43.	T179363	[1]	Gasket
44.	T39155	[1]	Snap Ring
45.	T81403	[8]	Screw	M8 X 25
46.	AT228747	[1]	Bracket
48.	AT224797	[1]	Filter Head
49.	AT307045	[1]	Pressure Switch
50.	P46051	[1]	O-Ring	10.770 X 2.616 MM (0.424" X 0.103")
51.	AT310905	[1]	Oil Filter
52.	AT320593	[1]	Fitting
53.	R26286	[1]	O-Ring	10.516 X 1.829 MM (0.414" X 0.072")
54.	R27175	[1]	Drain Plug
55.	R29936	[2]	O-Ring	29.743 X 2.946 MM (1.171" X 0.116")
56.	R36636	[1]	Fitting Plug
57.	RE38310	[1]	Sensor
58.	RE52702	[1]	Clamp
59.	T128096	[4]	Washer	21 X 53.800 X 6 MM (0.827" X 2.118" X 0.236")
61.	T217792	[1]	Label
