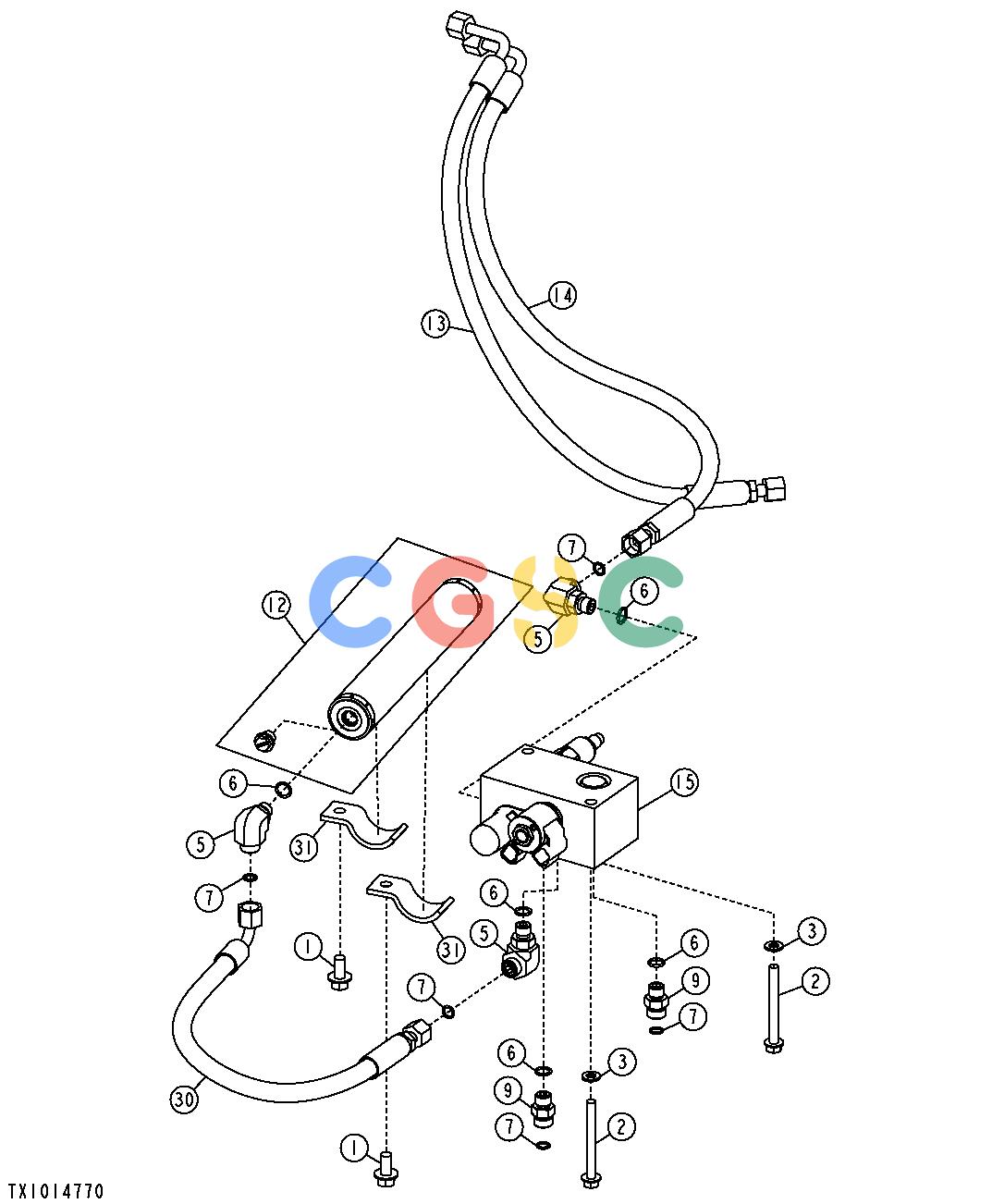

约翰迪尔零件查询RE160302 - AXLE PRESSURE REGULATOR VALVE FITTINGS (S.N. 611219-)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
961 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19M7784
|
[2] |
Screw
|
|
| 2. |
19M8039
|
[2] |
Screw
|
|
| 3. |
24M7238
|
[2] |
Washer
|
|
| 5. |
38H1004
|
[1] |
Elbow Fitting
|
|
| 6. |
R26448
|
[1] |
O-Ring
|
|
| 7. |
T77613
|
[1] |
O-Ring
|
|
| 9. |
38H1160
|
[1] |
Adapter Fitting
|
|
| 12. |
AT376347
|
[1] |
Accumulator Kit
|
|
| 13. |
AT354609
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 14. |
AT301930
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 15. |
AT333904
|
[1] |
Hydraulic Pressure Valve
|
|
| 30. |
AT81931
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 31. |
R68904
|
[2] |
Clamp
|
|
