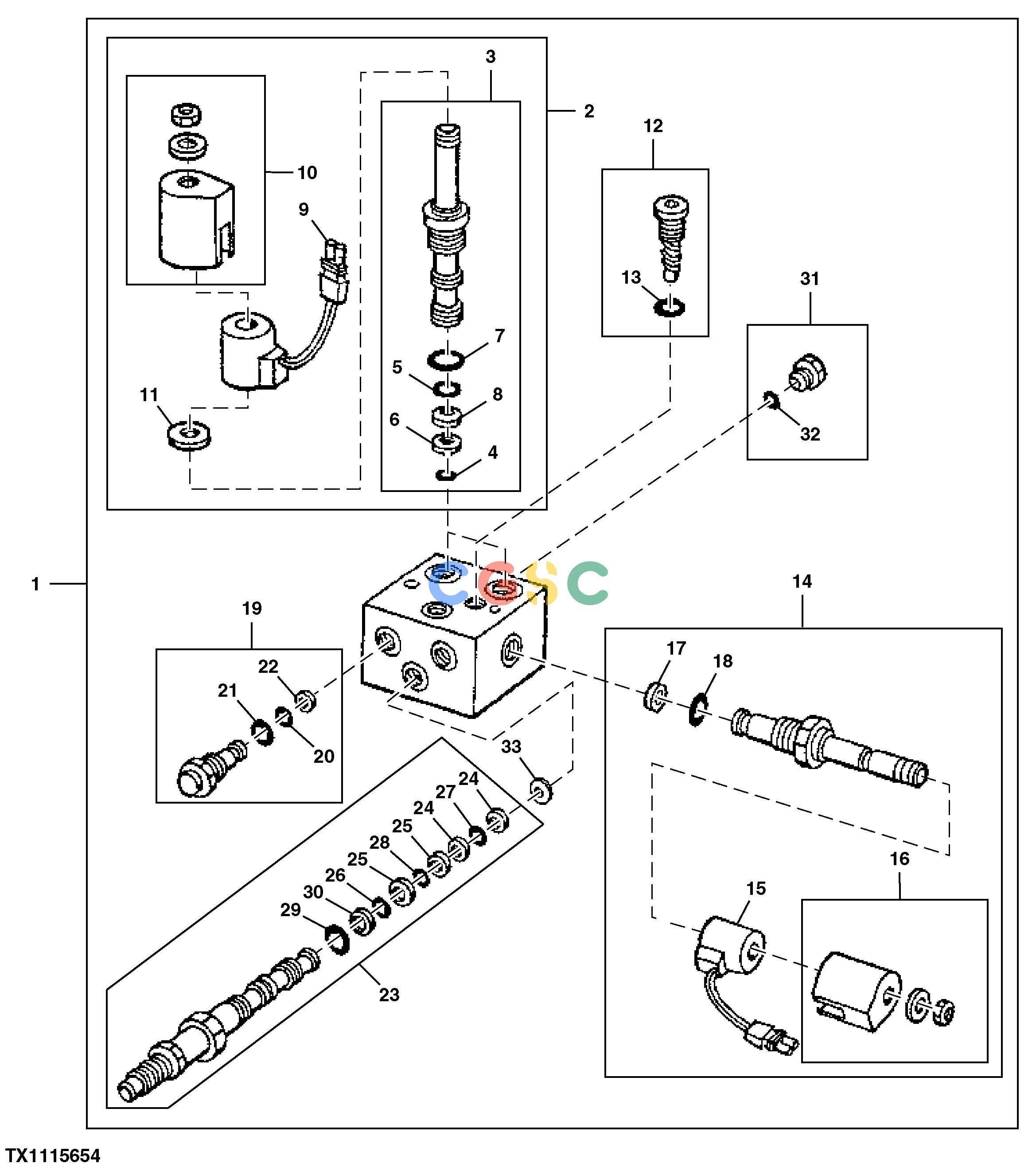

约翰迪尔零件查询RE160302 - AXLE Pressure Reducing Manifold ( - 590067)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 701 次

Pos.	Part No	Qty	Parts name	Comments
1.	AT203487	[1]	Hyd Actuated Control Valve	PRESSURE REDUCING MANIFOLD
2.	AT139431	[2]	Solenoid Valve	PILOT ENABLE SOLENOID VALVE DIFFERENTIAL LOCK SOLENOID VALVE
3.	AT139432	[1]	Hyd Actuated Control Valve
4.	R28776	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
5.	R33259	[1]	O-Ring	13.995 X 1.778 MM (0.551" X 0.070")
6.	R42926	[1]	Back-Up Ring
7.	R47151	[1]	O-Ring	19.177 X 2.464 MM (0.755" X 0.097")
8.	T81247	[1]	Back-Up Ring
9.	AT139433	[1]	Electrical Coil
10.	AT139434	[1]	Housing Kit
11.	T130847	[1]	Plate
12.	AT159938	[1]	Pressure Relief Valve
13.	R28782	[1]	O-Ring	8.915 X 1.829 MM (0.351" X 0.072")
14.	AT208424	[1]	Solenoid Valve	BOOM DOWN SOLENOID VALVE
15.	AT139433	[1]	Electrical Coil
16.	AT139434	[1]	Housing Kit
17.	R42926	[1]	Back-Up Ring
18.	R47151	[1]	O-Ring	19.177 X 2.464 MM (0.755" X 0.097")
19.	AT208425	[2]	Check Valve
20.	A3917R	[1]	O-Ring	9.246 X 1.778 MM (0.364" X 0.070")
21.	R47150	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
22.	T106208	[1]	Back-Up Ring
23.	AT208426	[1]	Hyd Actuated Control Valve	SOURCE VALVE / PRESSURE REDUCING VALVE
24.	A36431	[1]	Back-Up Ring
25.	A36432	[1]	Back-Up Ring
26.	R27116	[1]	Bushing
27.	R28776	[1]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
28.	R33259	[1]	O-Ring	13.995 X 1.778 MM (0.551" X 0.070")
29.	R47151	[1]	O-Ring	19.177 X 2.464 MM (0.755" X 0.097")
30.	T35985	[1]	Back-Up Ring
31.	AT49216	[1]	Fitting Plug
32.	T70177	[1]	O-Ring	11.887 X 1.981 MM (0.468" X 5/64")
33.	T170615	[1]	Washer	0.0000 X 15.773 X 1.519 MM (0" X 0.621" X 0.060")
