约翰迪尔零件查询1400 - AXLE SECONDARY STEERING KIT (TORQUE CONVERTER) (FACTORY)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 336 次

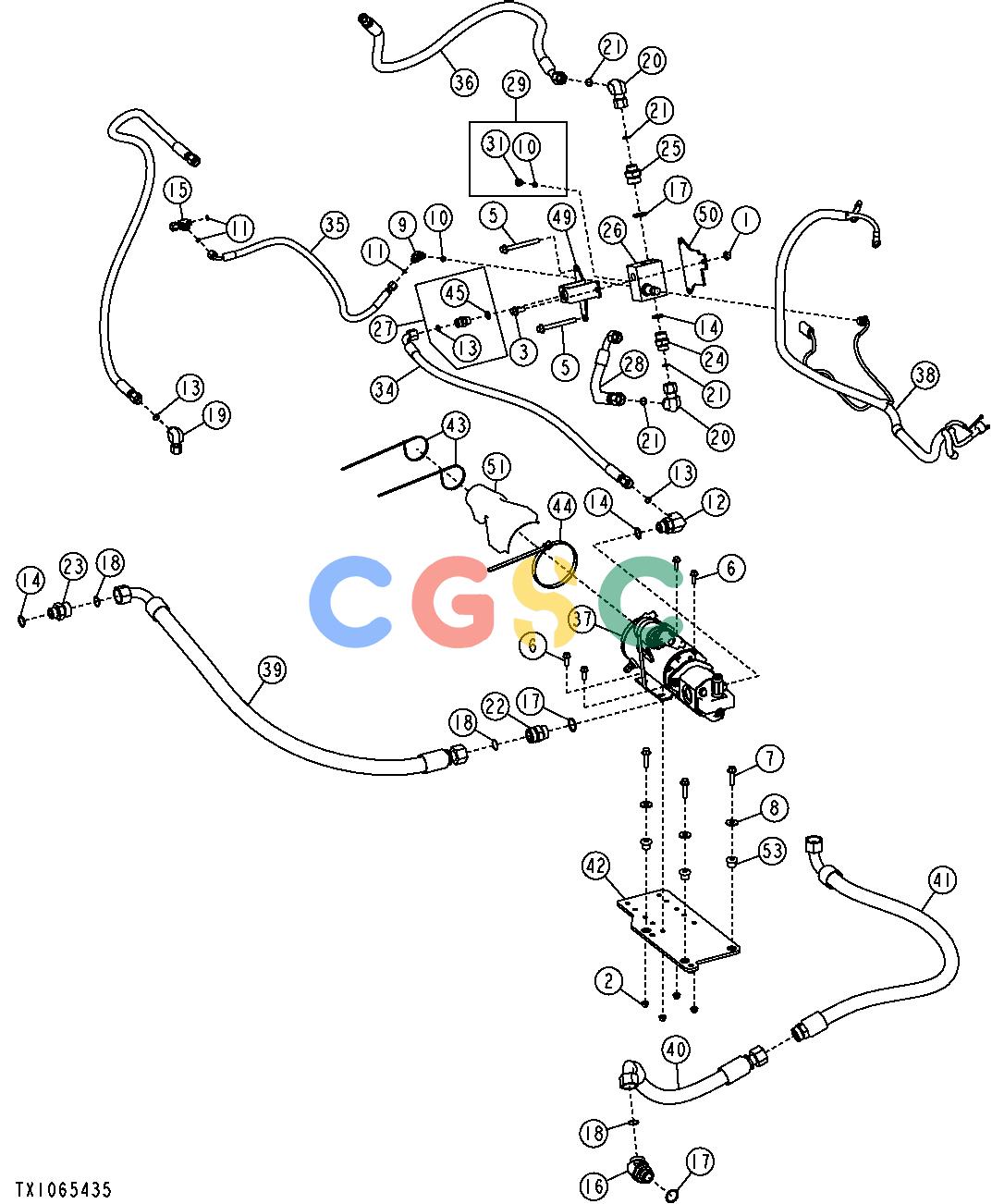

Pos.	Part No	Qty	Parts name	Comments
1.	14M7296	[1]	Flange Nut	M10
2.	14M7524	[4]	Flange Nut	M8
3.	19M7785	[3]	Screw	M10 X 25
5.	19M7812	[2]	Screw	M10 X 100
6.	19M7867	[4]	Screw	M8 X 25
7.	19M8162	[3]	Screw	M10 X 40
8.	24M7296	[3]	Washer	10.500 X 30 X 2.500 MM
9.	38H1003	[1]	Elbow Fitting
10.	R28782	[1]	O-Ring	(SUB FOR 38H1003)
11.	T77814	[1]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
12.	38H1013	[1]	Elbow Fitting
13.	T77857	[1]	O-Ring
14.	U12547	[1]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
15.	38H1029	[1]	Tee Fitting
16.	38H1049	[1]	Elbow Fitting
17.	R29936	[1]	O-Ring
18.	T76938	[1]	O-Ring	23.520 X 1.780 MM (0.926" X 0.070")
19.	38H1095	[1]	Elbow Fitting
20.	38H1096	[1]	Elbow Fitting
21.	T77932	[1]	O-Ring	15.596 X 1.778 MM (0.614" X 0.070")
22.	38H1164	[1]	Adapter Fitting
23.	38H1179	[1]	Adapter Fitting	(SUB FOR 38H1431)
24.	38H1329	[1]	Adapter Fitting
25.	38H1447	[1]	Adapter Fitting
26.	AT117264	[1]	Switch
27.	AT141527	[1]	Check Valve	(INCLUDES R26375 AND T77857)
27.	R26375	[1]	O-Ring
27.	T77857	[1]	O-Ring
28.	AT183657	[1]	Hydraulic Hose - Fabricate	1" X 263 MM (10-1/2") X 1"
29.	AT223648	[1]	Fitting
31.	R51031	[1]	Fitting
34.	AT317957	[1]	Hydraulic Hose - Fabricate
35.	AT317958	[1]	Hydraulic Hose - Fabricate
36.	AT317959	[1]	Hydraulic Hose - Fabricate
37.	AT344580	[1]	Pump
38.	AT345505	[1]	Wiring Harness
39.	AT347144	[1]	Hydraulic Hose - Fabricate
40.	AT349616	[1]	Hydraulic Hose - Fabricate
41.	AT349617	[1]	Hydraulic Hose - Fabricate
42.	AT356390	[1]	Plate
43.	H77698	[2]	Tie Band
44.	N189220	[2]	Tie Band
45.	R26375	[1]	O-Ring
49.	T163583	[1]	Strap
50.	T163655	[1]	Bracket
51.	T236549	[1]	Guard
53.	U42208	[3]	Isolator
