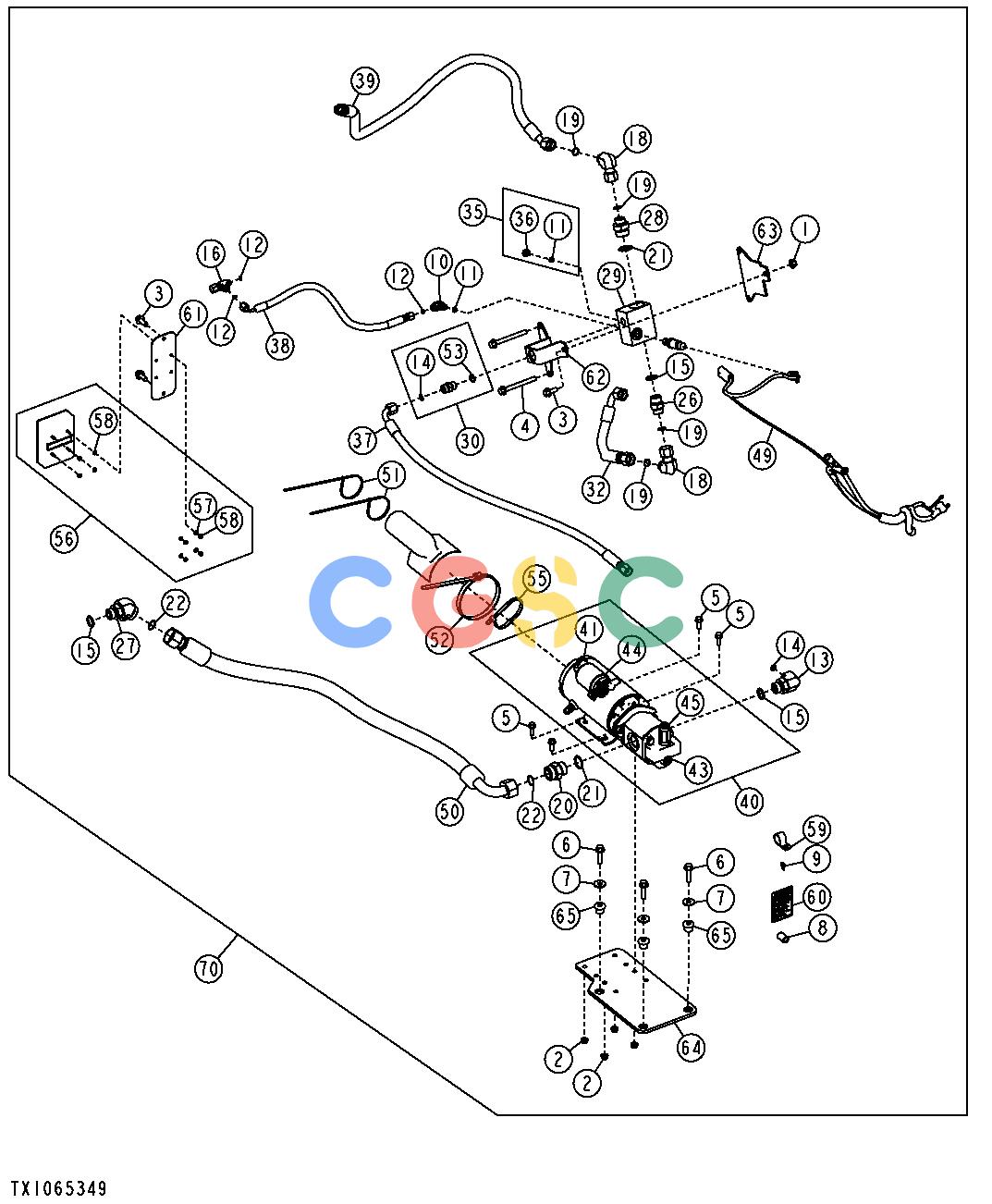

约翰迪尔零件查询1400 - AXLE SECONDARY STEERING (DIRECT DRIVE) (FIELD)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 711 次

Pos.	Part No	Qty	Parts name	Comments
1.	14M7296	[1]	Flange Nut	M10
2.	14M7524	[4]	Flange Nut	M8
3.	19M7785	[3]	Screw	M10 X 25
4.	19M7812	[2]	Screw	M10 X 100
5.	19M7867	[4]	Screw	M8 X 25
6.	19M8162	[3]	Screw	M10 X 40
7.	24M7296	[3]	Washer	10.500 X 30 X 2.500 MM
8.	28H3389	[1]	Spacer	0.423" X 0.675" X 1"
9.	57M7689	[1]	Fuse
10.	38H1095	[1]	Elbow Fitting	(SUB FOR 38H1003)
11.	R28782	[2]	O-Ring
12.	T77814	[3]	O-Ring
13.	38H1013	[1]	Elbow Fitting
14.	T77857	[2]	O-Ring
15.	U12547	[3]	O-Ring
16.	38H1029	[1]	Tee Fitting
18.	38H1096	[2]	Elbow Fitting
19.	T77932	[4]	O-Ring	15.596 X 1.778 MM (0.614" X 0.070")
20.	38H1164	[1]	Adapter Fitting
21.	R29936	[2]	O-Ring
22.	T76938	[2]	O-Ring
26.	38H1329	[1]	Adapter Fitting
27.	38H1179	[1]	Adapter Fitting	(SUB FOR 38H1431)
28.	38H1447	[1]	Adapter Fitting
29.	AT117264	[1]	Switch
30.	AT141527	[1]	Check Valve	(INCLUDES R26375 AND T77857)
30.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
30.	T77857	[1]	O-Ring
32.	AT183657	[1]	Hydraulic Hose - Fabricate
35.	AT223648	[1]	Fitting
36.	R51031	[1]	Fitting
37.	AT317957	[1]	Hydraulic Hose - Fabricate	13/16" X 890 MM (35") X 13/16"
38.	AT182993	[1]	Hydraulic Hose - Fabricate
39.	AT195299	[1]	Hydraulic Hose - Fabricate
40.	AT344580	[1]	Pump
41.	AT345320	[1]	Hydraulic Motor	(ADDITIONAL COMPONENTS ON SEPARATE PAGES)
41.	AT345719	[1]	Seal Kit
43.	AT345721	[1]	Pump	(ADDITIONAL COMPONENTS ON SEPARATE PAGES)
44.	AT345722	[1]	Switch	(ADDITIONAL COMPONENTS ON SEPARATE PAGES)
45.	AT345723	[1]	Pressure Relief Valve	(ADDITIONAL COMPONENTS ON SEPARATE PAGES)
45.	AT170991	[1]	O-Ring Kit	(ALSO ORDER U12547)
49.	AT345509	[1]	Wiring Harness
50.	AT347144	[1]	Hydraulic Hose - Fabricate	36.5252" X 1270 MM (50") X 36.5252"
51.	H77698	[2]	Tie Band
52.	N189220	[1]	Tie Band	SEE FUSE BOX
53.	R26375	[1]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
55.	R76477	[1]	Tie Band
56.	RE15428	[1]	Timer
57.	12H379	[4]	Lock Washer	0.164"
58.	14H1072	[8]	Nut	0.164"
59.	T102934	[1]	Clamp
60.	T146443	[1]	Safety Sign
61.	T150265	[1]	Plate
62.	T163583	[1]	Strap
63.	T163655	[1]	Bracket
64.	T244266	[1]	Plate	(SUB FOR T235366)
65.	U42208	[3]	Isolator
70.	AT346562	[1]	Field Installation Kit	(ALSO ORDER T236549)(WHOLE GOODS)
71.	T236549	[1]	Guard	(FACTORY INSTALLED)
