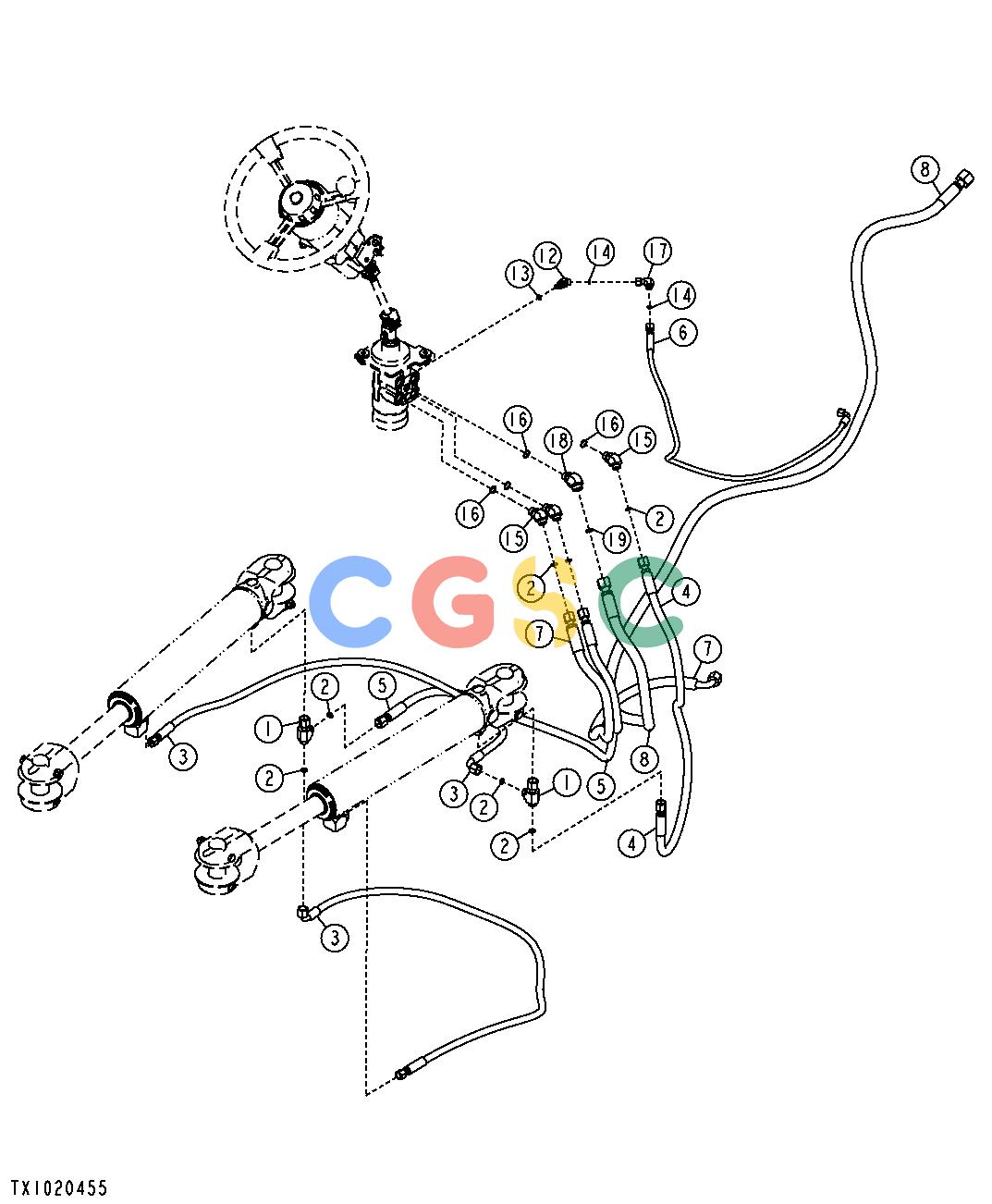

约翰迪尔零件查询1400 - AXLE STEERING VALVE TO CYLINDER HYDRAULIC HOSES AND PRIORITY VALVE (TC)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 935 次

Pos.	Part No	Qty	Parts name	Comments
1.	38H1031	[2]	Tee Fitting
2.	T77857	[6]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
3.	AT158165	[2]	Hydraulic Hose - Fabricate	17.4752" X 1673 MM (65-3/4") X 13/16"
4.	AT180219	[1]	Hydraulic Hose - Fabricate	13/16" X 1397 MM (55") X 13/16"
5.	AT195452	[1]	Hydraulic Hose - Fabricate	13/16" X 1536 MM (60-1/2") X 13/16"
6.	AT317954	[1]	Hydraulic Hose - Fabricate	9/16" X 1214 MM (47-3/4") X 9/16"
7.	AT317955	[1]	Hydraulic Hose - Fabricate	13/16" X 1163 MM (45-3/4") X 1"
8.	AT317956	[1]	Hydraulic Hose - Fabricate	1" X 2582 MM (101-3/4") X 30.1752"
12.	38H1044	[2]	Elbow Fitting
13.	R28782	[2]	O-Ring	8.915 X 1.829 MM (0.351" X 0.072")
14.	T77814	[4]	O-Ring	7.650 X 1.780 MM (0.301" X 0.070")
15.	38H1046	[2]	Elbow Fitting
16.	R26375	[4]	O-Ring	16.358 X 2.210 MM (0.644" X 0.087")
17.	38H1093	[2]	Elbow Fitting
18.	38H1602	[1]	Elbow Fitting
19.	T77932	[2]	O-Ring	15.596 X 1.778 MM (0.614" X 0.070")
20.	........	[1]	Molding	(MAKE FROM (1) T164263)(NOT ILLUSTRATED)
