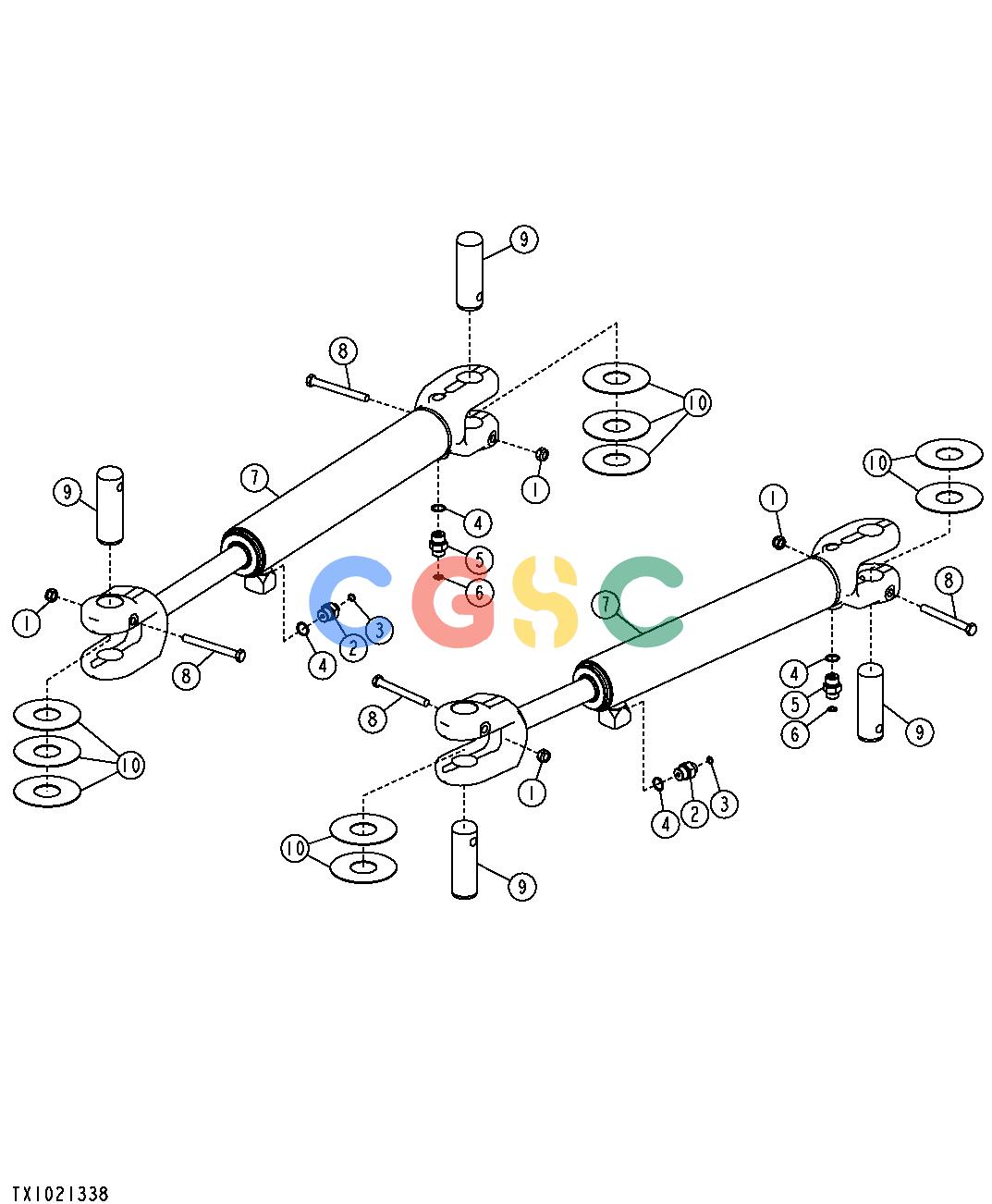

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 14M7319 | [4] | Lock Nut | M12 |
| 2. | 38H1175 | [2] | Adapter Fitting | |
| 3. | T77857 | [1] | O-Ring | 12.421 X 1.778 MM (0.489" X 0.070") |
| 4. | U12547 | [2] | O-Ring | 23.470 X 2.946 MM (0.924" X 0.116") |
| 5. | 38H1338 | [2] | Adapter Fitting | |
| 6. | T77613 | [1] | O-Ring | 9.250 X 1.780 MM (0.364" X 0.070") |
| 7. | AH213303 | [2] | Hydraulic Cylinder | 90 X 50 MM STANDARD |
| 7. | AH219905 | [2] | Hydraulic Cylinder | 100 X 56 MM LARGE |
| 8. | T142262 | [4] | Cap Screw | M12 X 115 |
| 9. | T147990 | [4] | Pin Fastener | 44.916 X 134 MM (1.768" X 5.276") |
| 10. | T163930 | [10] | Thrust Washer | 46 X 116 X 1.650 MM (1.811" X 4.567" X 0.065") |
