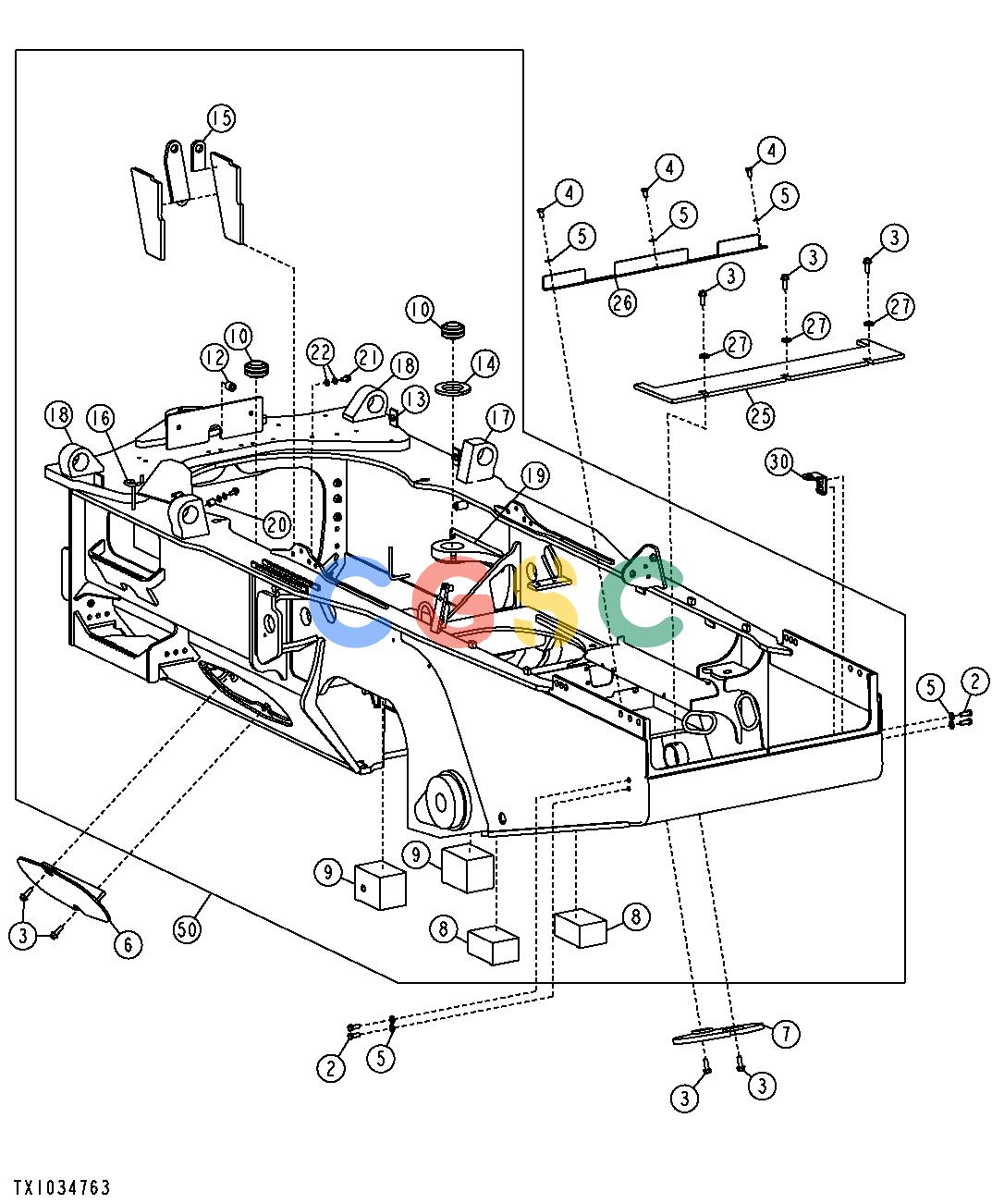

约翰迪尔零件查询1400 - AXLE ENGINE FRAMEEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
353 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
19M8011
|
[4] |
Cap Screw
|
|
| 3. |
19M7790
|
[9] |
Screw
|
|
| 4. |
19M8017
|
[3] |
Cap Screw
|
|
| 5. |
24M7047
|
[7] |
Washer
|
|
| 6. |
AT140352
|
[2] |
Door
|
|
| 7. |
AT196744
|
[1] |
Door
|
|
| 8. |
T208667
|
[1] |
Support
|
|
| 8. |
T208668
|
[1] |
Support
|
|
| 9. |
T208561
|
[1] |
Support
|
|
| 9. |
T208560
|
[1] |
Support
|
|
| 10. |
AT157173
|
[2] |
Self-Aligning Bushing
|
|
| 12. |
T121416
|
[8] |
Bushing
|
|
| 13. |
T130362
|
[2] |
Strap
|
|
| 14. |
T161173
|
[4] |
Washer
|
|
| 15. |
T162008
|
[1] |
Strap
|
|
| 16. |
T162096
|
[1] |
Hook
|
|
| 17. |
T162638
|
[2] |
Plate
|
|
| 18. |
T162639
|
[2] |
Plate
|
|
| 19. |
AT327884
|
[2] |
Support
|
|
| 20. |
T72414
|
[10] |
Bushing
|
|
| 21. |
19M7784
|
[1] |
Screw
|
|
| 22. |
24M7239
|
[1] |
Washer
|
|
| 25. |
T223533
|
[1] |
Isolator
|
|
| 26. |
T224318
|
[1] |
Angle
|
|
| 27. |
T29342
|
[1] |
Washer
|
|
| 30. |
AT330973
|
[1] |
Bracket
|
|
| 50. |
AT329490
|
[1] |
Frame
|
|
| 50. |
AT328008
|
[1] |
Frame
|
|
