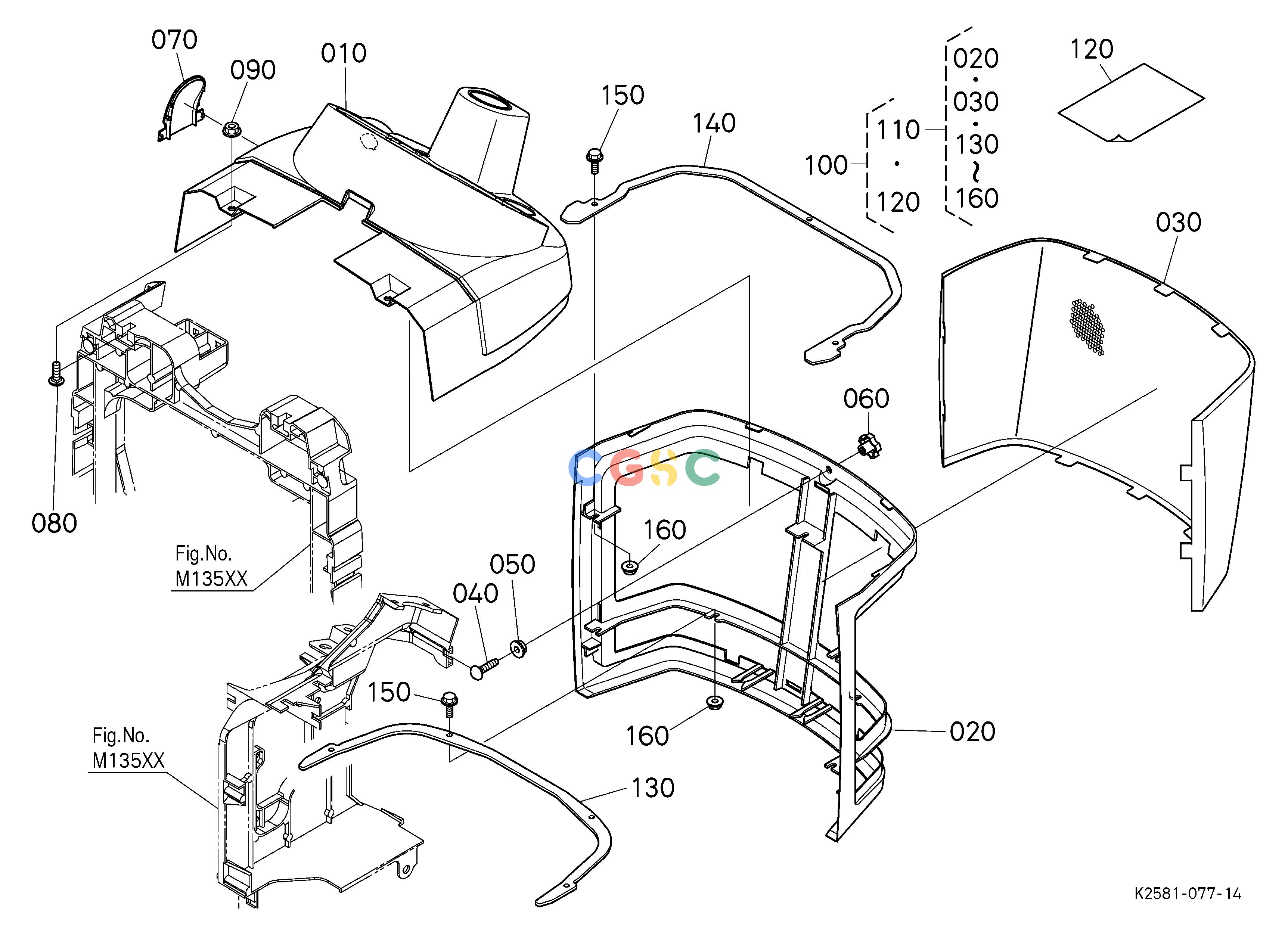

久保田零件查询M20101 PANEL FRAME HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
306 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K250157113
|
[1] |
PANEL,UPPER
|
0.0000(lbs); 0.000
|
| 010. |
K250157114
|
[1] |
PANEL,UPPER
|
1.7160(lbs); 0.780
|
| 020. |
K250157136
|
[1] |
PANEL,UNDER
|
1.2320(lbs); 0.560
|
| 030. |
K250157140
|
[1] |
PLATE,AIR SCREEN U.
|
0.0000(lbs); 0.000
|
| 030. |
K250157143
|
[1] |
AIR(INTAKE,SCREEN)
|
0.0000(lbs); 0.000
|
| 040. |
K265157170
|
[1] |
BOLT,SHORT SQU.NECK
|
0.0352(lbs); 0.016
|
| 050. |
0275150080
|
[1] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 060. |
K256157170
|
[1] |
NUT,KNOB
|
0.0330(lbs); 0.015
|
| 070. |
K258157914
|
[1] |
COVER,PANEL MOWER
|
0.0440(lbs); 0.020
|
| 080. |
K112291330
|
[2] |
BOLT(SHORT SQ. NECK,M8 1.25)
|
0.0000(lbs); 0.000
|
| 080. |
K112291332
|
[2] |
BOLT(SHORT SQ. NECK,
|
0.0330(lbs); 0.015
|
| 090. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 100. |
K250195712
|
[1] |
KIT PANEL,LOWER
|
0.0000(lbs); 0.000
|
| 110. |
K250195722
|
[1] |
ASSY PANEL LOWER
|
0.0000(lbs); 0.000
|
| 120. |
K258195730
|
[1] |
MANUAL,PANEL LOWER
|
0.0000(lbs); 0.000
|
| 130. |
K250157920
|
[1] |
PLATE, PANEL UNDER
|
0.6820(lbs); 0.310
|
| 140. |
K250157930
|
[1] |
PLATE, PANEL UNDER
|
0.7700(lbs); 0.350
|
| 150. |
0175450614
|
[7] |
BOLT, FLANGE
|
0.0110(lbs); 0.005
|
| 160. |
0275150060
|
[7] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
