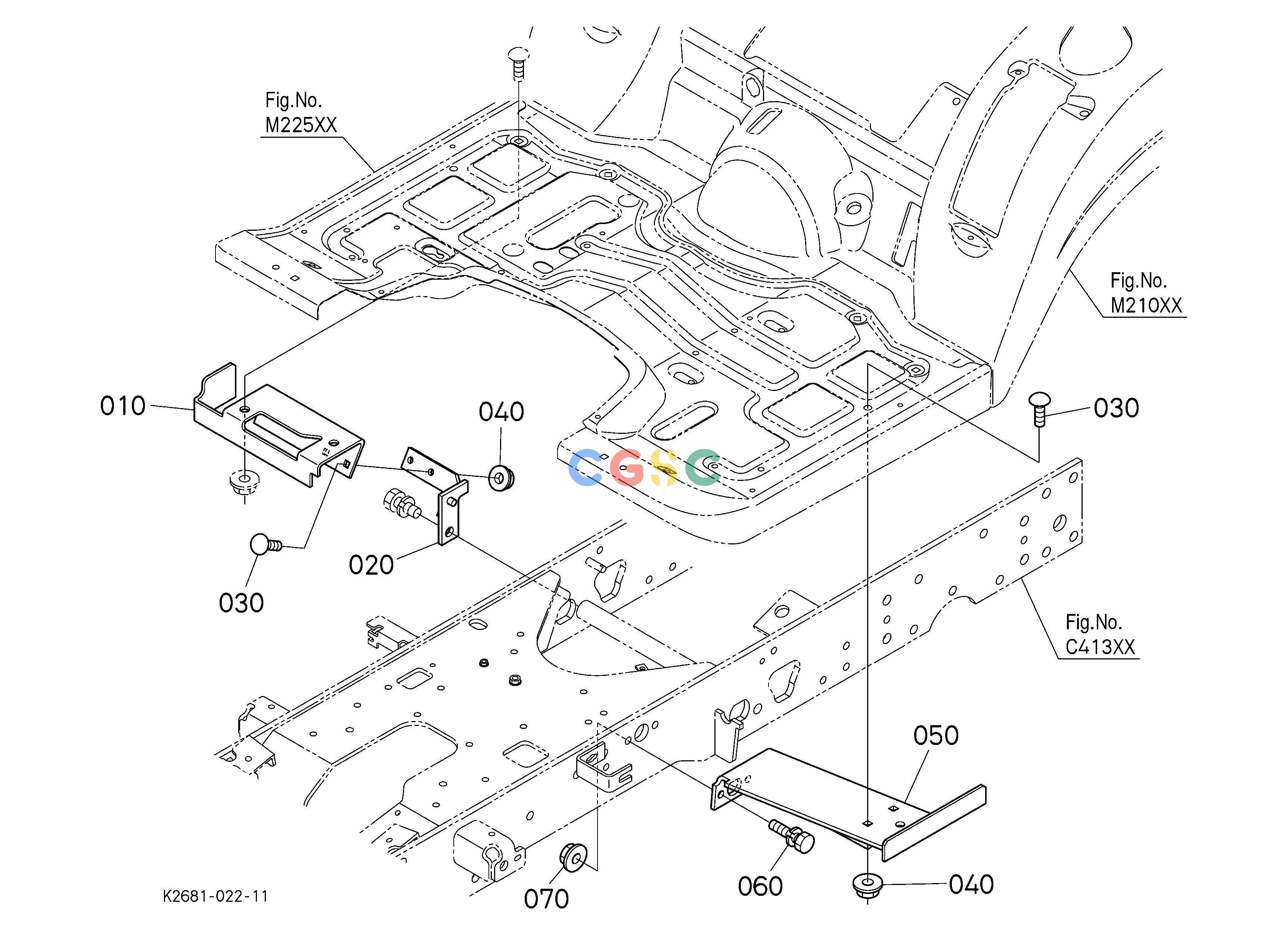

久保田零件查询M22601 STEP STAY HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
927 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K260155180
|
[1] |
STAY,STEP RH
|
0.0000(lbs); 0.000
|
| 020. |
K265155192
|
[1] |
STAY,STEP RH
|
0.0000(lbs); 0.000
|
| 030. |
K112291330
|
[3] |
BOLT(SHORT SQ. NECK,M8 1.25)
|
0.0000(lbs); 0.000
|
| 030. |
K112291332
|
[3] |
BOLT(SHORT SQ. NECK,
|
0.0330(lbs); 0.015
|
| 040. |
0275150080
|
[3] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
K258155172
|
[1] |
STAY,STEP LH
|
0.0000(lbs); 0.000
|
| 050. |
K258155173
|
[1] |
STAY,STEP LH
|
0.0000(lbs); 0.000
|
| 060. |
0113351040
|
[2] |
BOLT,SEMS
|
0.0660(lbs); 0.030
|
| 060. |
0113351035
|
[2] |
BOLT,SEMS
|
0.0660(lbs); 0.030
|
| 070. |
0277150100
|
[2] |
NUT,FLANGE
|
0.0110(lbs); 0.005
|
