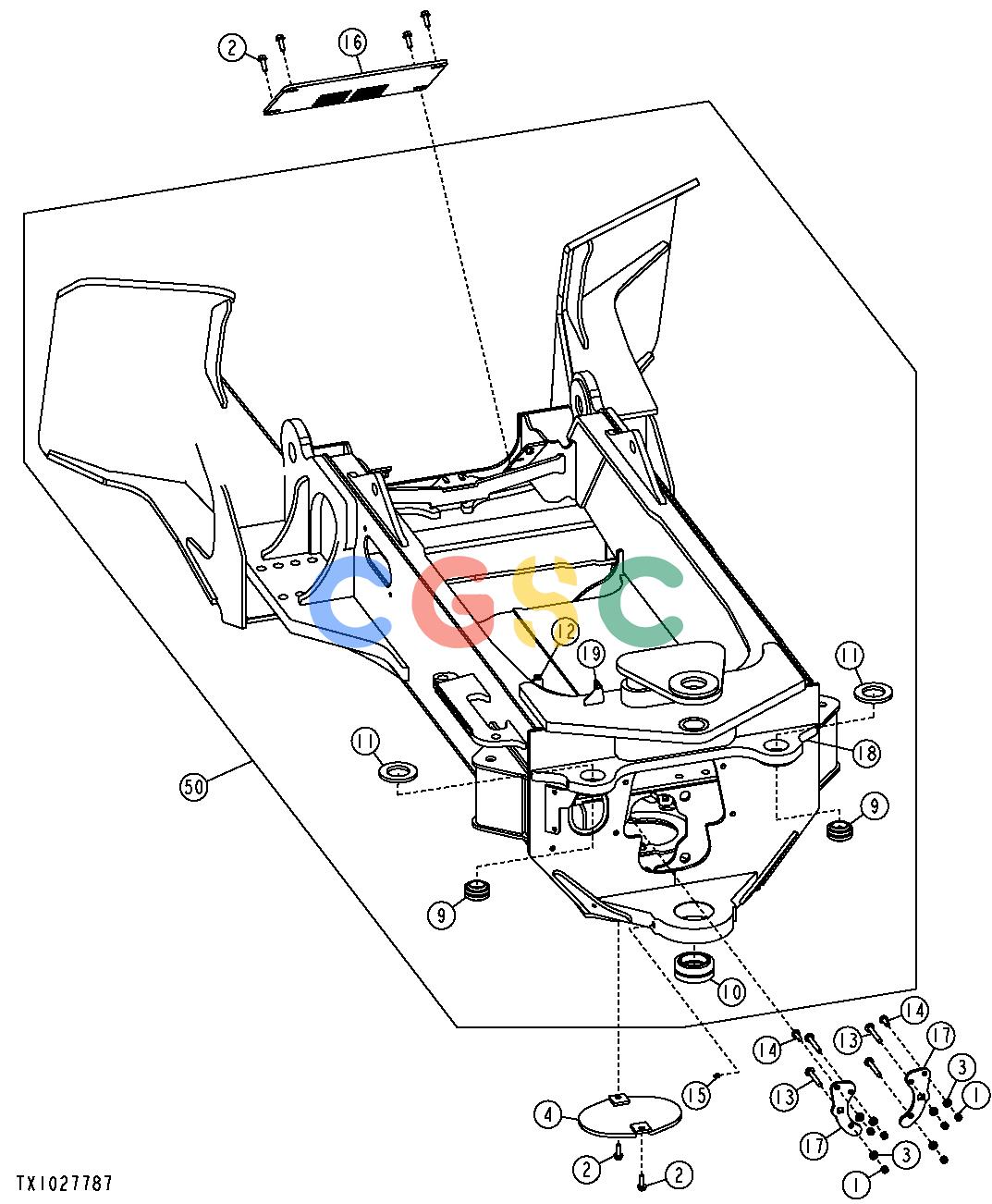

约翰迪尔零件查询1400 - AXLE EQUIPMENT FRAME - CABLEEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
684 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7275
|
[2] |
Nut
|
|
| 1. |
14M7275
|
[6] |
Nut
|
|
| 2. |
19M7790
|
[12] |
Screw
|
|
| 2. |
19M7790
|
[12] |
Screw
|
|
| 3. |
24M7240
|
[2] |
Washer
|
|
| 3. |
24M7240
|
[12] |
Washer
|
|
| 4. |
AT196746
|
[1] |
Plate
|
|
| 4. |
AT196746
|
[1] |
Plate
|
|
| 9. |
AT157173
|
[4] |
Self-Aligning Bushing
|
|
| 10. |
AT175578
|
[1] |
Self-Aligning Bushing
|
|
| 11. |
T161173
|
[4] |
Washer
|
|
| 12. |
T72414
|
[4] |
Bushing
|
|
| 13. |
H154928
|
[4] |
Bolt
|
|
| 14. |
H212944
|
[2] |
Bolt
|
|
| 14. |
H212944
|
[2] |
Bolt
|
|
| 15. |
JD7759
|
[2] |
Lubrication Fitting
|
|
| 16. |
T186274
|
[1] |
Cover
|
|
| 17. |
T228367
|
[2] |
Bearing Housing W/O Bearing
|
|
| 17. |
T228367
|
[2] |
Bearing Housing W/O Bearing
|
|
| 18. |
AT326702
|
[1] |
Support
|
|
| 19. |
T210039
|
[1] |
Bracket
|
|
| 50. |
AT338744
|
[1] |
Frame
|
|
