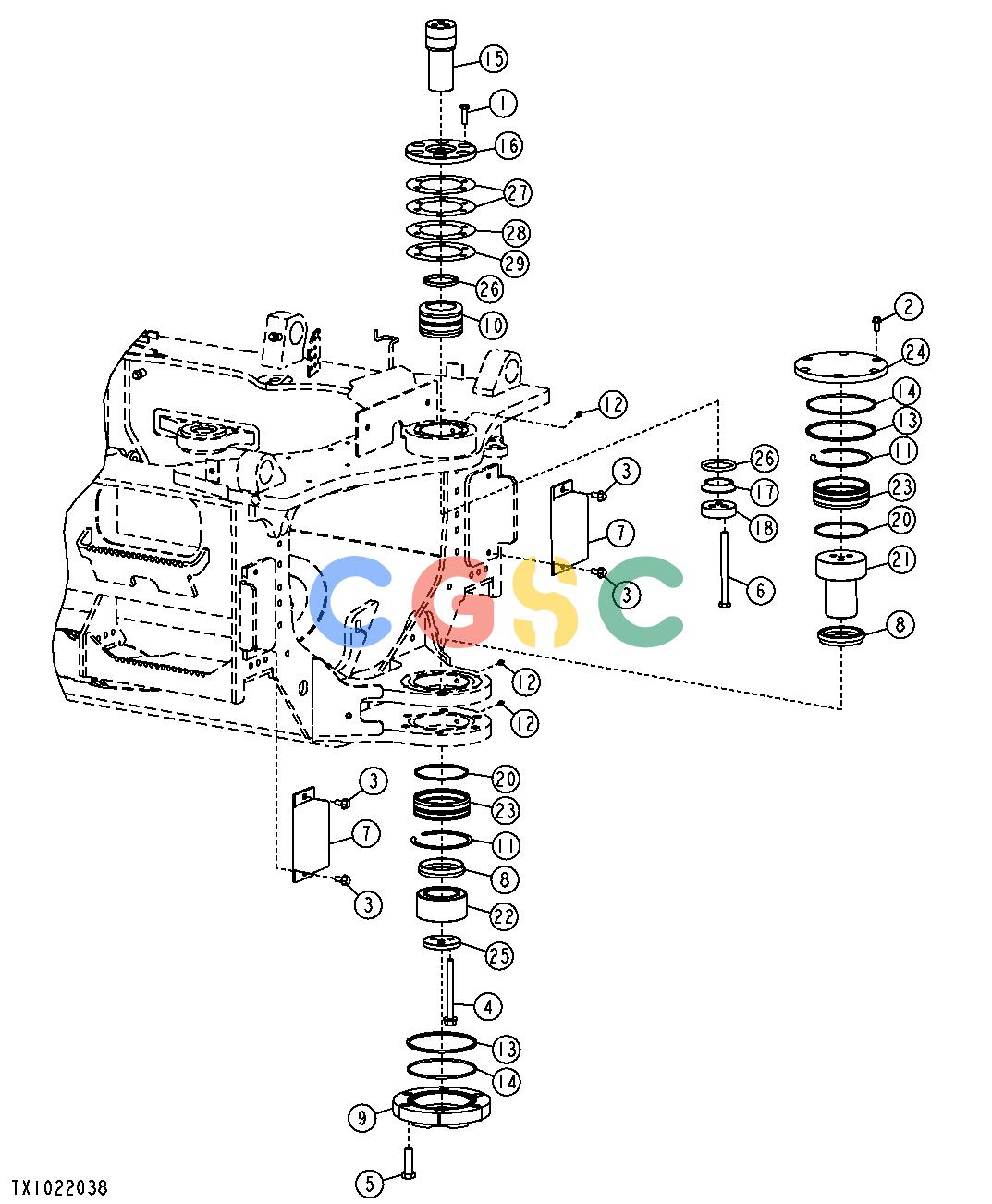

Pos.	Part No	Qty	Parts name	Comments
1.	19M7493	[6]	Cap Screw	M12 X 40
2.	19M7785	[6]	Screw	M10 X 25
3.	19M7788	[4]	Screw	M12 X 25
4.	19M7960	[3]	Screw	M16 X 160
5.	19M8638	[6]	Cap Screw	M20 X 65
6.	19M9000	[3]	Cap Screw	M16 X 190
7.	AT142028	[2]	Bumper
8.	AT178191	[2]	Seal
9.	AT331942	[1]	Guard
10.	AT61251	[1]	Self-Aligning Bushing
11.	F811075	[2]	Snap Ring
12.	JD7759	[3]	Lubrication Fitting
13.	R64074	[2]	O-Ring	170.820 X 5.330 MM (6.725" X 0.210")
14.	R89632	[2]	Ring	170.815 X 5.334 MM (6.725" X 0.210")
15.	T184599	[1]	Pin Fastener
16.	T236799	[1]	Cover	(SUB FOR T184600)
17.	T184602	[1]	Locking Collar
18.	T184604	[4]	Spacer
20.	T237675	[2]	Seal	(SUB FOR T224211)
21.	T224229	[1]	Pin
22.	T224238	[1]	Bushing
23.	T224248	[2]	Bushing	130.254 X 144.800 X 44.500 MM (5.128" X 5.701" X 1.752")
24.	T224255	[1]	Cover
25.	T224314	[1]	Spacer
26.	T60752	[2]	Seal
27.	T236801	[2]	Shim	(SUB FOR T64492)
28.	T236807	[1]	Shim	(SUB FOR T64493)
29.	T236808	[1]	Shim	0.127 MM (SUB FOR T64494)
