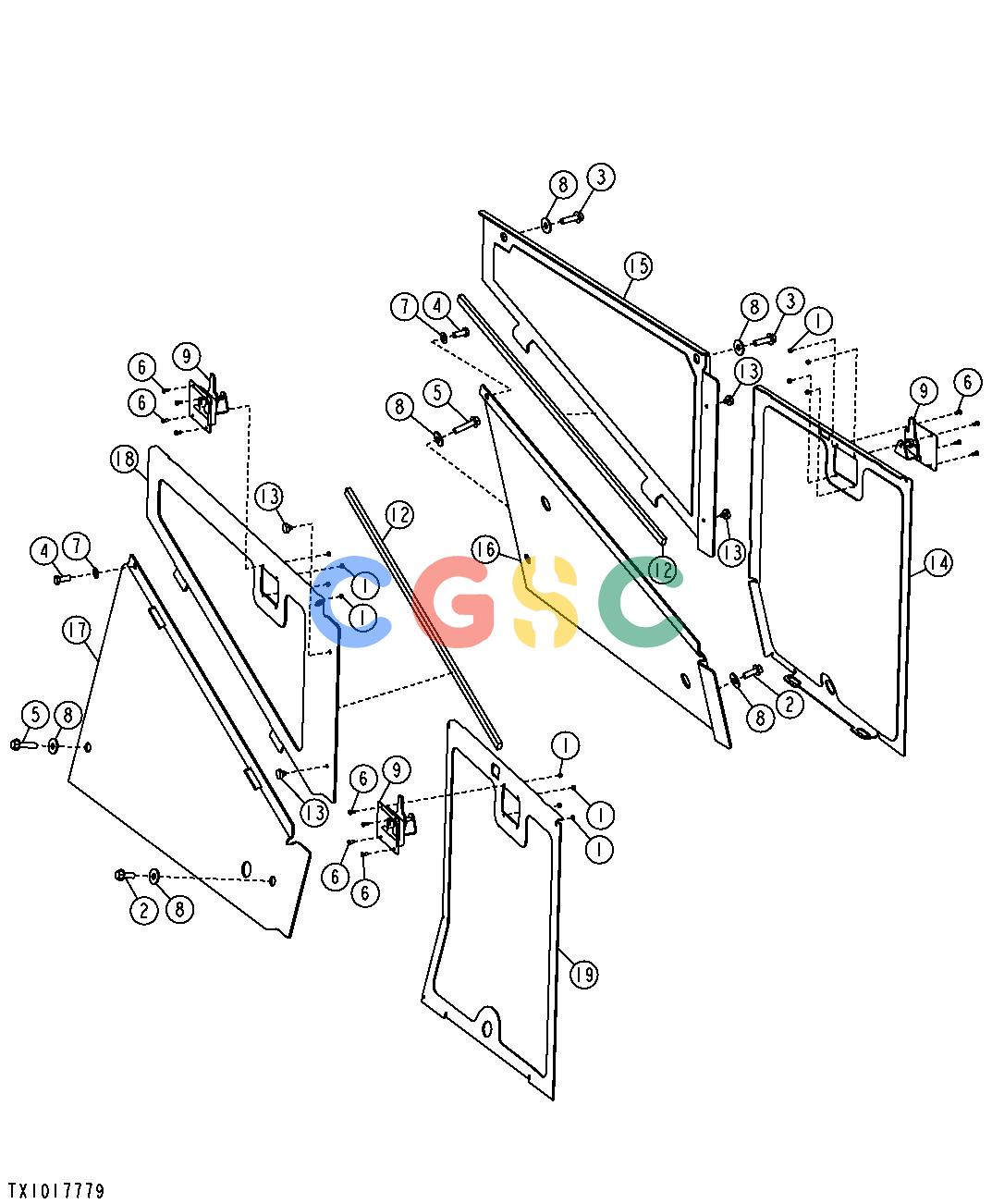

约翰迪尔零件查询1400 - AXLE ENGINE SIDE SHIELDSEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 574 次

Pos.	Part No	Qty	Parts name	Comments
1.	14M7265	[12]	Lock Nut	M5
2.	19M7790	[2]	Screw	M12 X 35
3.	19M7813	[2]	Screw	M12 X 45
4.	19M8011	[2]	Cap Screw	M12 X 30
5.	19M8112	[2]	Screw	M12 X 55
6.	21M7265	[12]	Screw	M5 X 12
7.	24H1849	[2]	Washer	17/32" X 1" X 0.036"
8.	24M7180	[6]	Washer	13 X 37 X 3 MM
9.	AT165600	[3]	Latch
12.	........	[1]	Weatherstrip	(MAKE FROM T162998)(CTL)
13.	T50926	[4]	Bumper
14.	AT320555	[1]	Shield	LEFT FRONT (DEERE)
14.	AT320560	[1]	Shield	LEFT FRONT (TIMBERJACK)
15.	AT322899	[1]	Shield	UPPER LEFT REAR (DEERE)
15.	AT322897	[1]	Shield	UPPER LEFT REAR (TIMBERJACK)
16.	T214482	[1]	Shield	LOWER LEFT REAR (DEERE)
16.	T214486	[1]	Shield	LOWER LEFT REAR (TIMBERJACK)
17.	T214481	[1]	Shield	LOWER RIGHT REAR (DEERE)
17.	T214485	[1]	Shield	LOWER RIGHT REAR (TIMBERJACK)
18.	AT320556	[1]	Shield	UPPER RIGHT REAR (DEERE)
18.	AT320561	[1]	Shield	UPPER RIGHT REAR (TIMBERJACK)
19.	AT320554	[1]	Shield	RIGHT FRONT (DEERE)
19.	AT320559	[1]	Shield	RIGHT FRONT (TIMBERJACK)
20.	........	[1]	Isolator	(MAKE FROM (1) T66419)(CTL) (NOT ILLUSTRATED)
