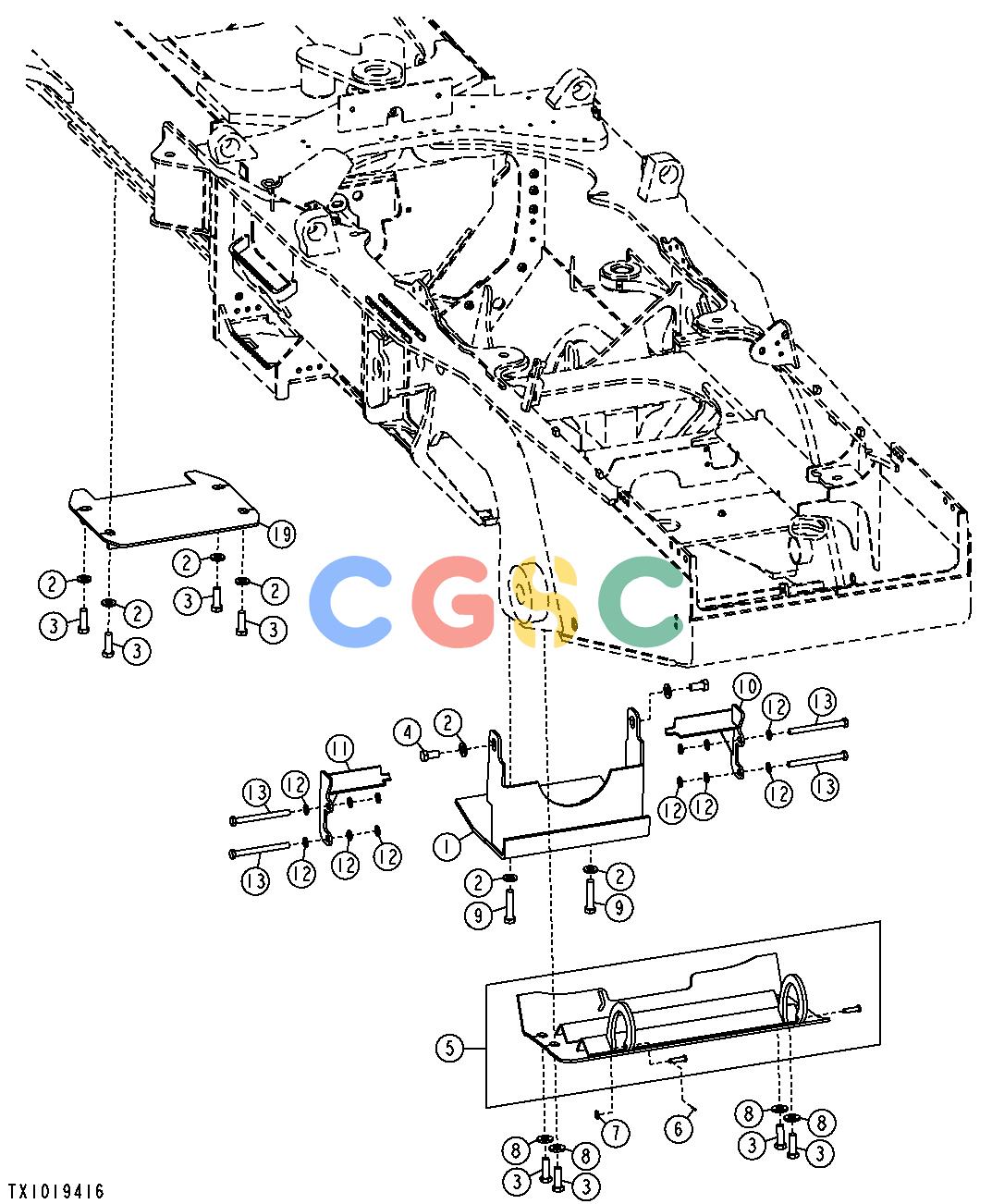

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT195711 | [1] | Door | |
| 2. | 24M7242 | [8] | Washer | 21.400 X 42 X 5 MM |
| 3. | 19M8224 | [8] | Cap Screw | M20 X 60 |
| 4. | 19M7946 | [2] | Cap Screw | M20 X 40 |
| 5. | AT195710 | [1] | Door | |
| 6. | 11M7059 | [1] | Cotter Pin | 3.200 X 20 MM |
| 7. | 24M7047 | [1] | Washer | 13 X 24 X 2.500 MM |
| 8. | T151797 | [4] | Washer | |
| 9. | 19M8147 | [2] | Cap Screw | M20 X 90 (1400 SERIES AXLES) |
| 10. | AT193475 | [1] | Guard | (LEFT SIDE) |
| 11. | AT193476 | [1] | Guard | (RIGHT SIDE) |
| 12. | 24M7338 | [8] | Washer | 17 X 30 X 3 MM |
| 13. | 19M8190 | [4] | Cap Screw | M16 X 180 (1400 SERIES AXLE) |
| 19. | AT350614 | [1] | Door | (SUB FOR AT193048) |
