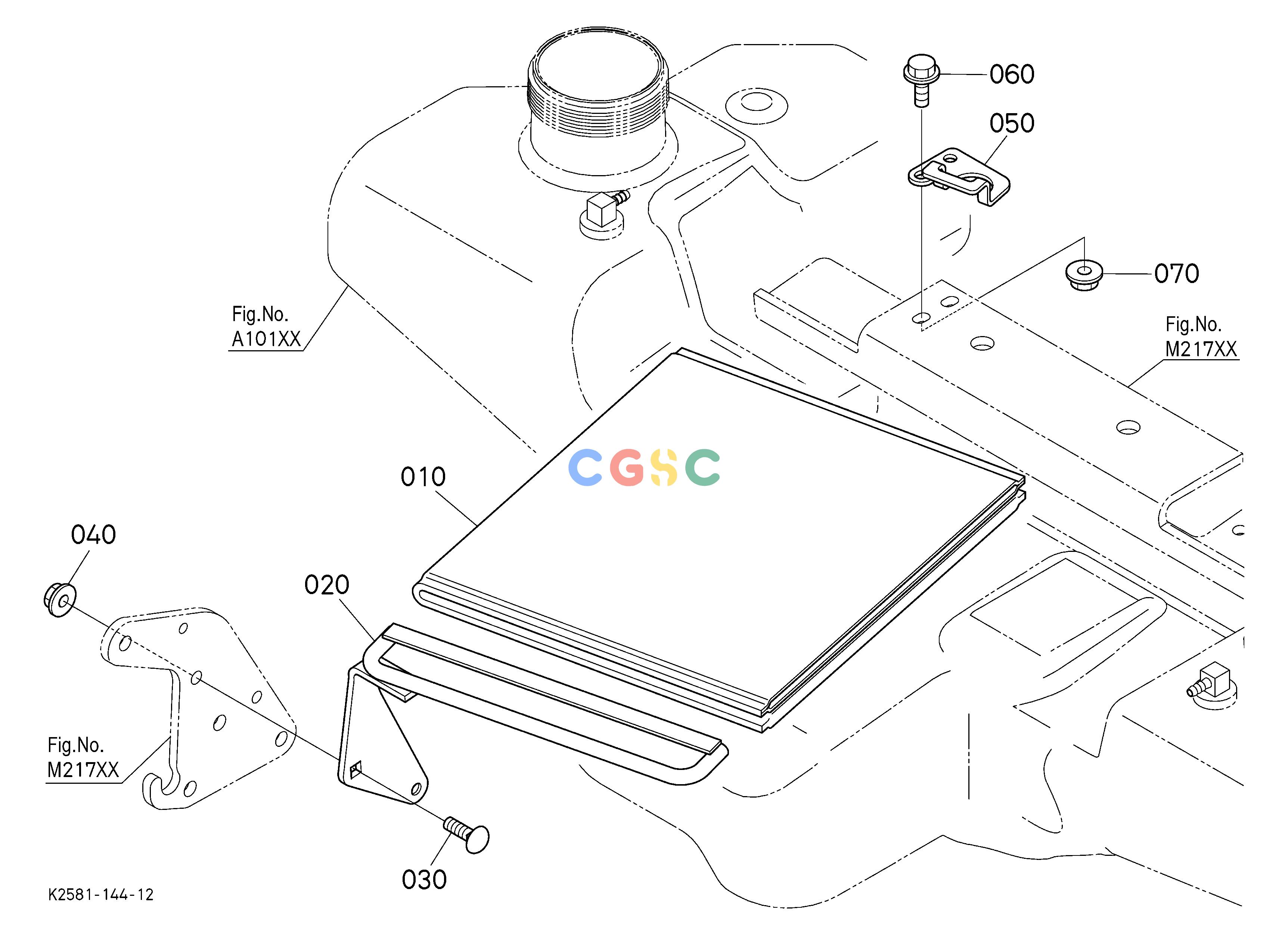

久保田零件查询M25000 MANUAL HOLDER HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
828 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
K258172170
|
[1] |
BAG,MANUAL
|
0.2860(lbs); 0.130
|
| 020. |
K258172152
|
[1] |
HOLDER,MANUAL
|
0.0000(lbs); 0.000
|
| 020. |
K258172153
|
[1] |
HOLDER(MANUAL)
|
0.0000(lbs); 0.000
|
| 030. |
K112291330
|
[1] |
BOLT(SHORT SQ. NECK,M8 1.25)
|
0.0000(lbs); 0.000
|
| 030. |
K112291332
|
[1] |
BOLT(SHORT SQ. NECK,
|
0.0330(lbs); 0.015
|
| 040. |
0275150080
|
[1] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
| 050. |
K258172163
|
[1] |
STOPPER,MANUAL
|
0.0000(lbs); 0.000
|
| 050. |
K258172164
|
[1] |
STOPPER,MANUAL
|
0.0000(lbs); 0.000
|
| 060. |
0175450820
|
[2] |
BOLT,FLANGE
|
0.0330(lbs); 0.015
|
| 070. |
0275150080
|
[2] |
NUT,FLANGE
|
0.0132(lbs); 0.006
|
