约翰迪尔零件查询1400 - AXLE PRESSURIZED WATER SYSTEMEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 584 次

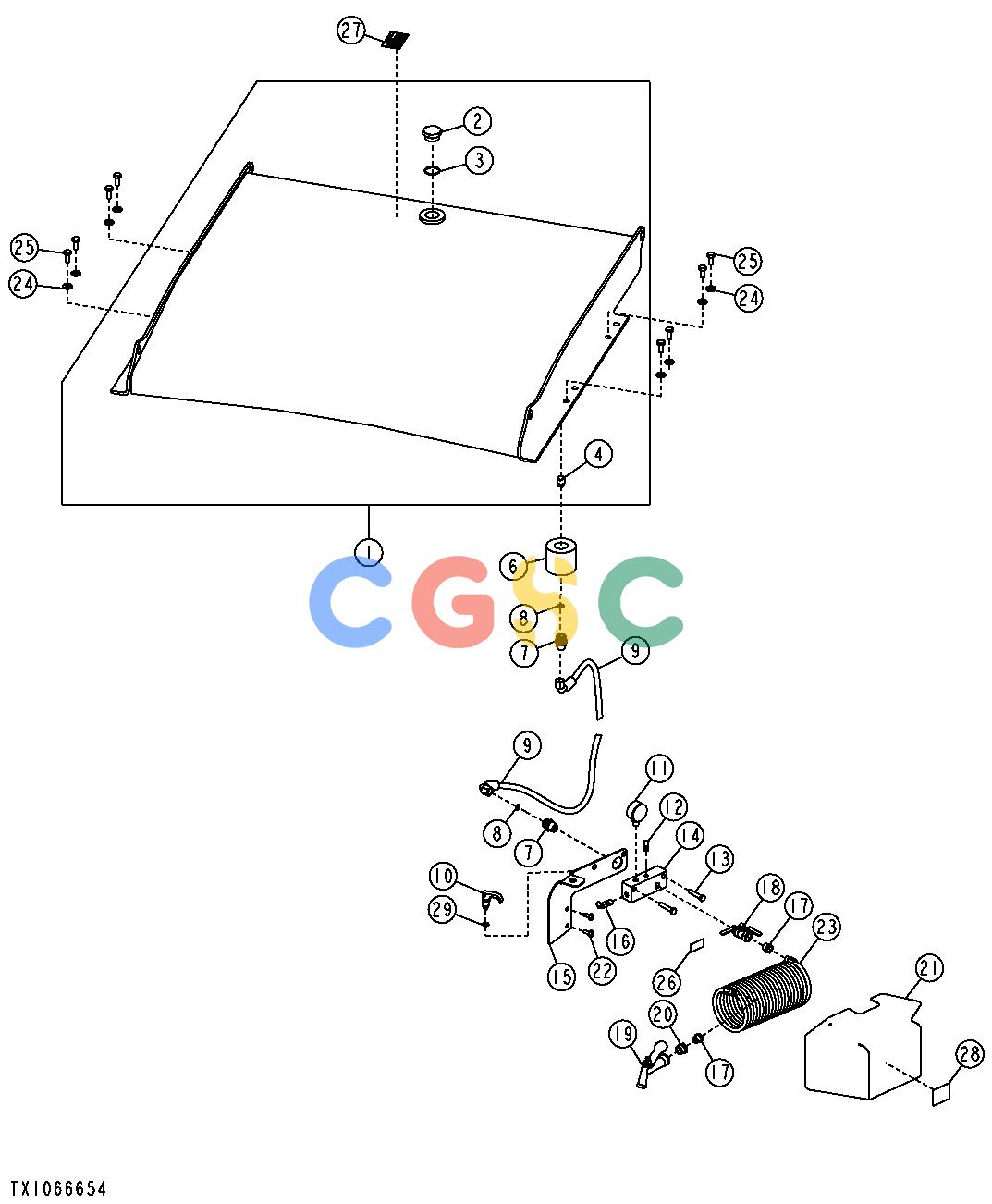

Pos.	Part No	Qty	Parts name	Comments
1.	AT322574	[1]	Tank	(JD)
1.	AT193165	[1]	Tank	(TJ)
2.	T54099	[1]	Fitting
3.	U13639	[1]	O-Ring	37.465 X 2.997 MM (1.475" X 0.118")
4.	15H584	[1]	Pipe Plug	1/2"
6.	T144340	[1]	Seal
7.	M87683	[2]	Adapter Fitting
8.	T77857	[2]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
9.	AT379639	[1]	Hydraulic Hose - Fabricate	13/16" X 2056 MM (81") X 13/16" (SUB FOR AT190306)
10.	AT222150	[1]	Latch
11.	AT379313	[1]	Pressure Gauge	(SUB FOR AT119708)
12.	AT119575	[1]	Fitting
13.	19M8600	[2]	Cap Screw	M10 X 50
14.	T183677	[1]	Manifold
15.	AT418090	[1]	Bracket	(SUB FOR AT189171)
16.	AT144065	[1]	Pressure Relief Valve
17.	15H586	[2]	Adapter Fitting	3/8"
18.	AT144066	[1]	Hand Operated Valve
19.	AT119576	[1]	Nozzle
20.	AT119908	[1]	Elbow Fitting
21.	T318384	[1]	Cover	(SUB FOR T183529)
22.	19M7868	[2]	Screw	M8 X 30
22.	28H3450	[2]	Spacer	0.364" X 0.540" X 1/2"
23.	AT119837	[1]	Hose
24.	24M7240	[8]	Washer	13 X 25 X 3 MM
25.	19M7872	[8]	Cap Screw	M12 X 25
26.	AT180556	[1]	Label
27.	T147462	[1]	Label
28.	T183594	[1]	Label
29.	24M7238	[1]	Washer	8.700 X 17 X 2 MM
