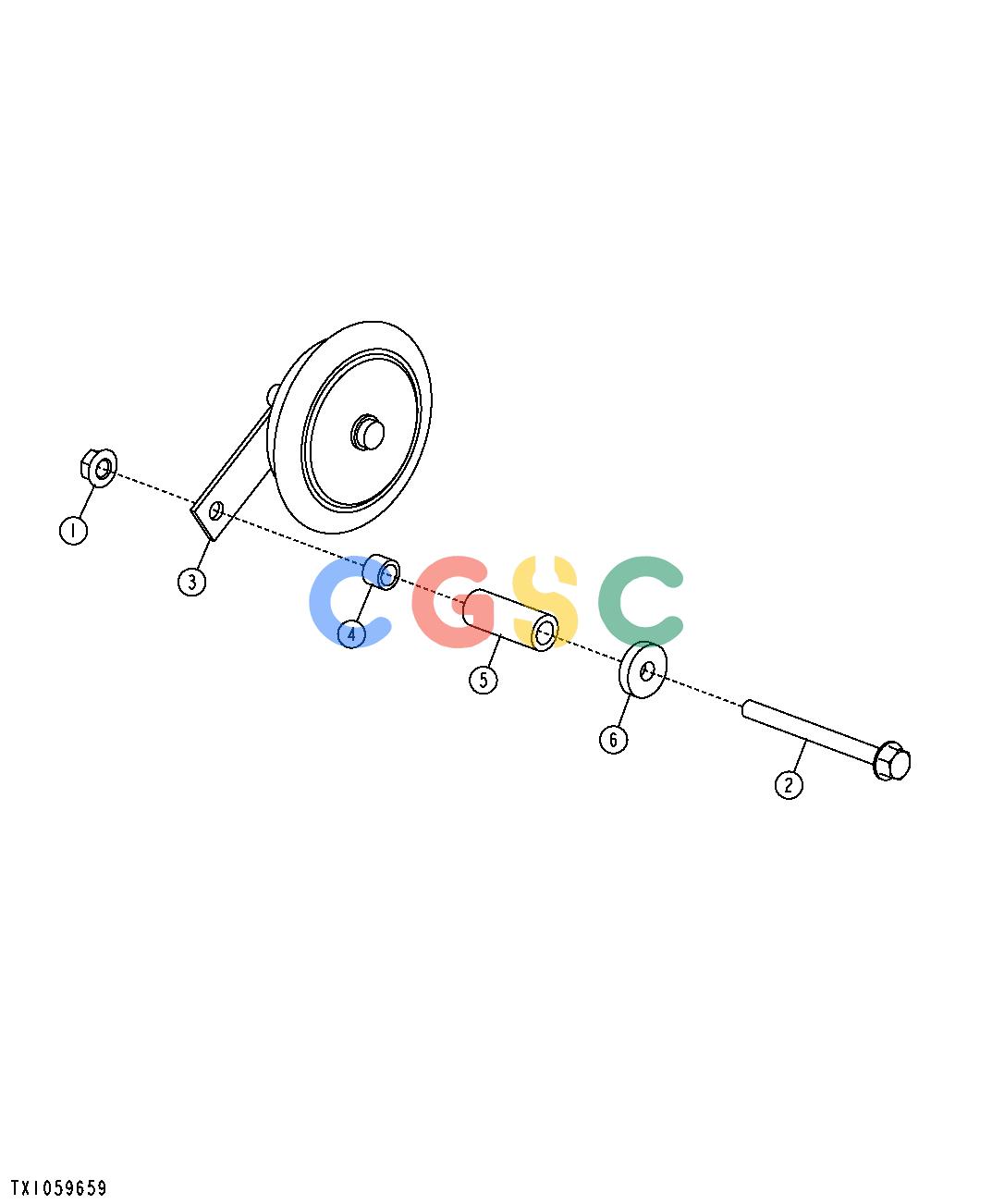

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 14M7298 | [1] | Flange Nut | M8 |
| 2. | 19M7913 | [1] | Screw | M8 X 90 |
| 3. | ........ | [1] | Horn | (ORDER AT226281) |
| 4. | Z32264 | [1] | Spacer | |
| 5. | 28H3377 | [1] | Bushing | 0.423" X 0.675" X 1-3/4" |
| 6. | 24H1621 | [1] | Washer | 11/32" X 1" X 0.220" |
广数供应链运营团队, 15 02月, 2025，浏览： 204 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 14M7298 | [1] | Flange Nut | M8 |
| 2. | 19M7913 | [1] | Screw | M8 X 90 |
| 3. | ........ | [1] | Horn | (ORDER AT226281) |
| 4. | Z32264 | [1] | Spacer | |
| 5. | 28H3377 | [1] | Bushing | 0.423" X 0.675" X 1-3/4" |
| 6. | 24H1621 | [1] | Washer | 11/32" X 1" X 0.220" |
