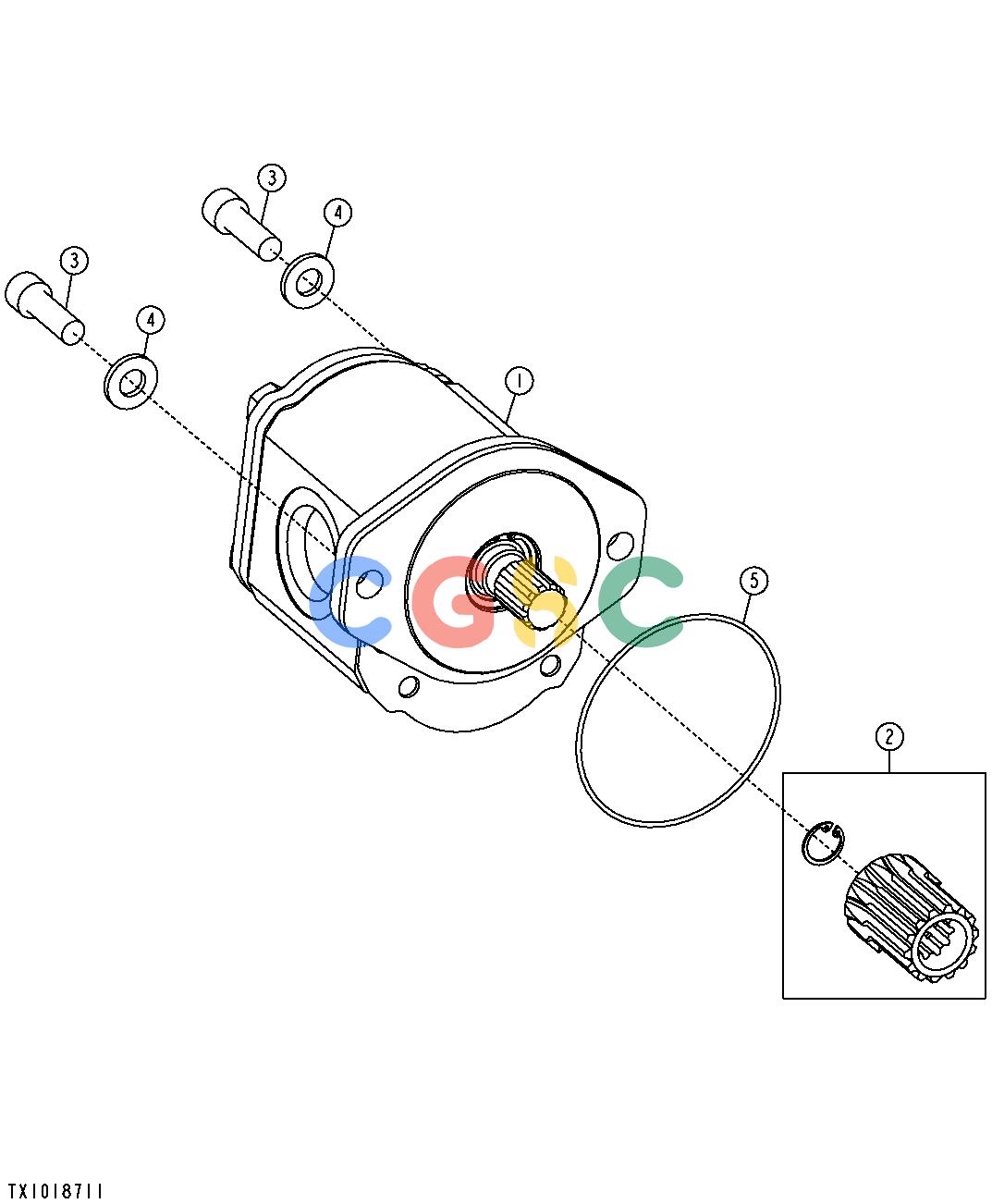

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | AT325862 | [1] | Hydraulic Pump | TORQUE CONVERTER |
| 1. | AT329832 | [1] | Hydraulic Pump | DIRECT DRIVE |
| 2. | YZ106286 | [1] | Sleeve | |
| 3. | 19M8881 | [4] | Screw | M10 X 30 SUB FOR 19H2929 |
| 4. | 24M7239 | [4] | Washer | 10.700 X 21 X 2.500 MM |
| 5. | E65288 | [1] | O-Ring | 82.271 X 1.778 MM (3.239" X 0.070") |
| 6. | AU14063 | [1] | Hose Fitting | NOT ILLUSTRATED FAN PUMP SUCTION ALSO ORDER R29936 |
| 6. | R29936 | [1] | O-Ring | 29.743 X 2.946 MM (1.171" X 0.116") |
| 7. | 38H1163 | [1] | Adapter Fitting | NOT ILLUSTRATED FAN PUMP OUTPUT ALSO ORDER T77858 AND U12547 |
| 7. | T77858 | [1] | O-Ring | 18.771 X 1.778 MM (0.739" X 0.070") |
| 7. | U12547 | [1] | O-Ring | 23.470 X 2.946 MM (0.924" X 0.116") |
