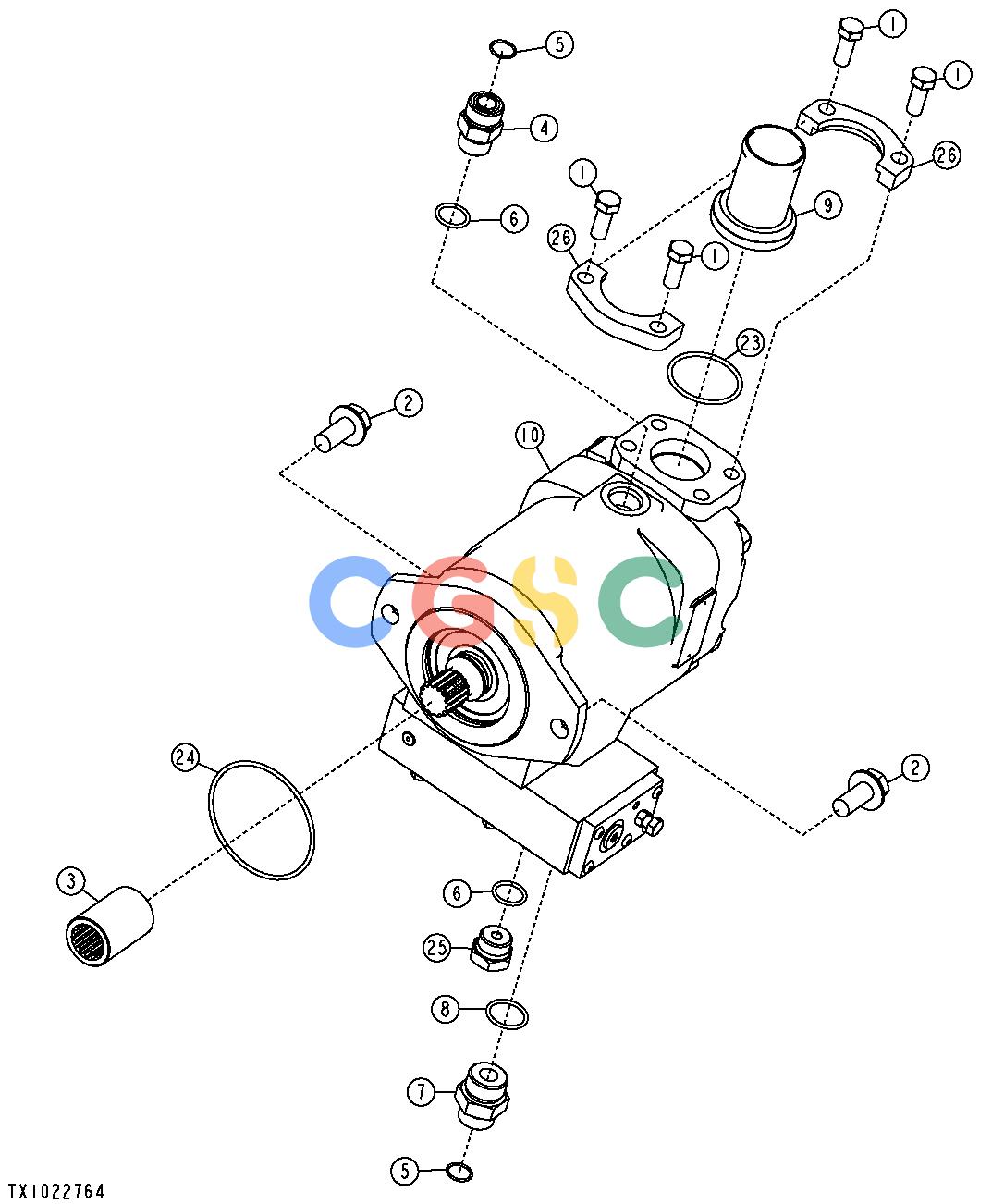

约翰迪尔零件查询1400 - AXLE HYDRAULIC PUMP AND FITTINGS (38GPM) (DIRECT DRIVE)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
773 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
19H2898
|
[4] |
Cap Screw
|
|
| 2. |
19M7843
|
[2] |
Screw
|
|
| 3. |
4001456
|
[1] |
Sleeve
|
|
| 4. |
38H1163
|
[1] |
Adapter Fitting
|
|
| 5. |
T77858
|
[2] |
O-Ring
|
|
| 6. |
U12547
|
[2] |
O-Ring
|
|
| 7. |
38H1194
|
[1] |
Adapter Fitting
|
|
| 8. |
R29936
|
[1] |
O-Ring
|
|
| 9. |
AT133586
|
[1] |
Oil Line
|
|
| 10. |
AT353936
|
[1] |
Hydraulic Pump
|
|
| 10. |
AT354752
|
[1] |
Control Valve
|
|
| 23. |
F1870R
|
[1] |
O-Ring
|
|
| 24. |
F37030242
|
[1] |
O-Ring
|
|
| 25. |
R27175
|
[1] |
Drain Plug
|
|
| 26. |
R37023
|
[2] |
Flange Fitting
|
|
