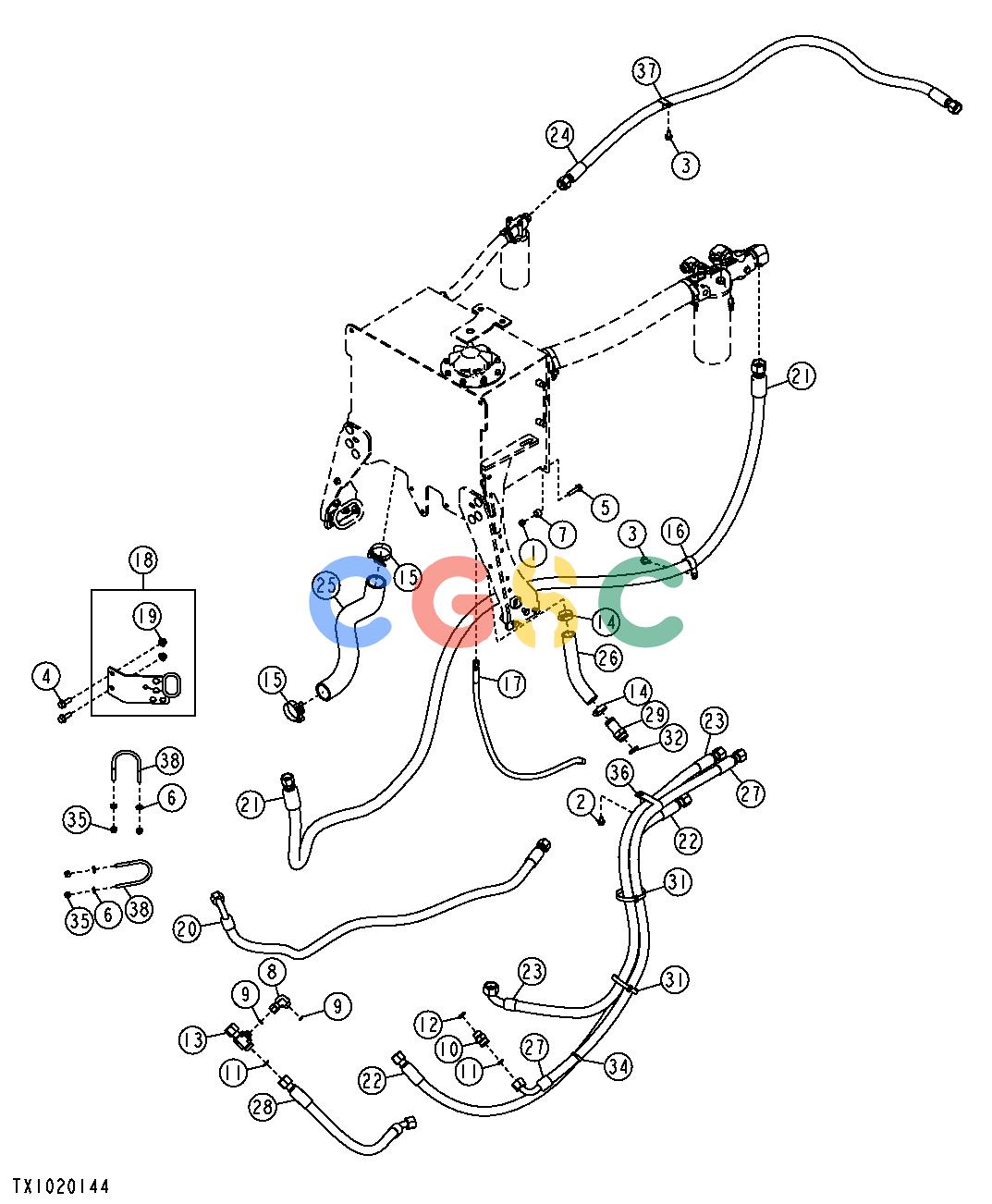

约翰迪尔零件查询1400 - AXLE MAIN HYDRAULIC LINES (848H)EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
953 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
14M7517
|
[1] |
Lock Nut
|
|
| 2. |
19M7783
|
[1] |
Screw
|
|
| 3. |
19M7784
|
[2] |
Screw
|
|
| 4. |
19M7790
|
[2] |
Screw
|
|
| 5. |
19M7805
|
[1] |
Screw
|
|
| 6. |
24M7239
|
[4] |
Washer
|
|
| 7. |
28H3400
|
[1] |
Spacer
|
|
| 8. |
38H1095
|
[1] |
Elbow Fitting
|
|
| 9. |
T77857
|
[1] |
O-Ring
|
|
| 10. |
38H1163
|
[1] |
Adapter Fitting
|
|
| 11. |
T77858
|
[1] |
O-Ring
|
|
| 12. |
U12547
|
[1] |
O-Ring
|
|
| 13. |
38H1532
|
[1] |
Tee Fitting
|
|
| 14. |
AH105968
|
[2] |
Hose Clamp
|
|
| 15. |
AT362404
|
[2] |
Clamp
|
|
| 16. |
AT121321
|
[1] |
Hose Clamp
|
|
| 17. |
AT115942
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 18. |
AT394060
|
[1] |
Bracket
|
|
| 19. |
14M7443
|
[2] |
Flange Nut
|
|
| 20. |
AT357751
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 21. |
AT318210
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 22. |
AT318211
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 23. |
AT318213
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 24. |
AT318214
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 25. |
AT325858
|
[1] |
Hose
|
|
| 26. |
AT329590
|
[1] |
Hose
|
|
| 27. |
AT329848
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 28. |
AT332148
|
[1] |
Hydraulic Hose - Fabricate
|
|
| 29. |
AU14063
|
[1] |
Hose Fitting
|
|
| 31. |
N189220
|
[2] |
Tie Band
|
|
| 32. |
R29936
|
[1] |
O-Ring
|
|
| 34. |
R76477
|
[2] |
Tie Band
|
|
| 35. |
T11234
|
[4] |
Lock Nut
|
|
| 36. |
T149597
|
[2] |
Clamp
|
|
| 37. |
T162675
|
[2] |
Clamp
|
|
| 38. |
T164223
|
[2] |
U-Bolt
|
|
| 39. |
........
|
[1] |
Isolator
|
|
