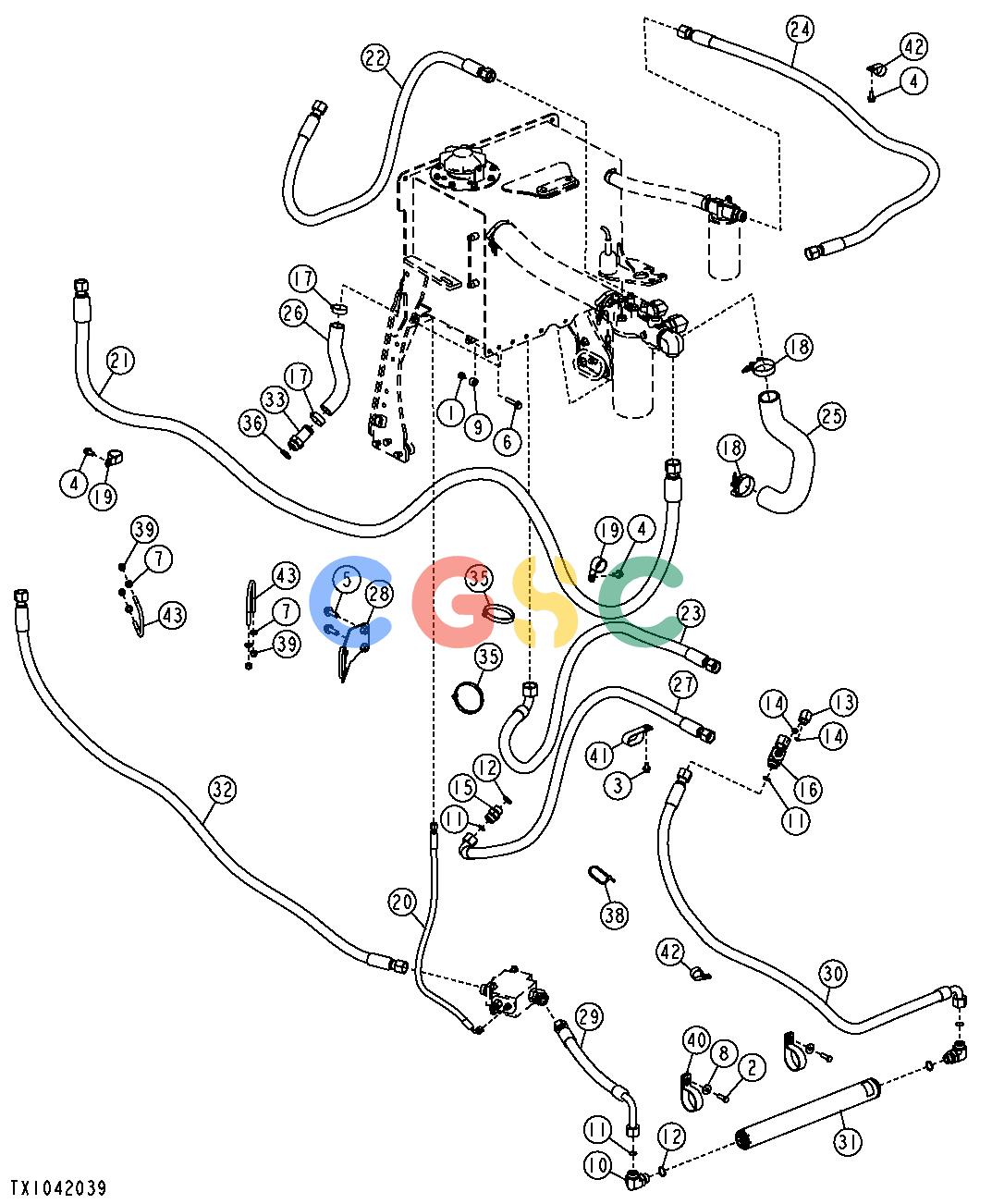

约翰迪尔零件查询1400 - AXLE MAIN HYDRAULIC LINES (848H) (SN 615175-)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 662 次

Pos.	Part No	Qty	Parts name	Comments
1.	14M7517	[1]	Lock Nut	M10
2.	19M7662	[2]	Cap Screw	M10 X 30
3.	19M7783	[1]	Screw	M10 X 16
4.	19M7784	[3]	Screw	M10 X 20
5.	19M7790	[2]	Screw	M12 X 35
6.	19M7806	[1]	Screw	M10 X 50
7.	24M7239	[4]	Washer	10.700 X 21 X 2.500 MM
8.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
9.	28H3400	[1]	Spacer	0.546" X 0.840" X 9/16"
10.	38H1007	[2]	Elbow Fitting
11.	T77858	[1]	O-Ring
12.	U12547	[1]	O-Ring
13.	38H1095	[1]	Elbow Fitting
14.	T77857	[1]	O-Ring
15.	38H1163	[1]	Adapter Fitting
16.	38H1532	[1]	Tee Fitting
17.	AH105968	[2]	Hose Clamp
18.	AT362404	[2]	Clamp	(SUB FOR AT105289 AND 700580500)
19.	AT121321	[2]	Hose Clamp
20.	AT140240	[1]	Hydraulic Hose - Fabricate
21.	AT318210	[1]	Hydraulic Hose - Fabricate
22.	AT318211	[1]	Hydraulic Hose - Fabricate
23.	AT318213	[1]	Hydraulic Hose - Fabricate
24.	AT318214	[1]	Hydraulic Hose - Fabricate
25.	AT325858	[1]	Hose
26.	AT329590	[1]	Hose
27.	AT329848	[1]	Hydraulic Hose - Fabricate
28.	AT394060	[1]	Bracket	(SUB FOR AT341139 AND AT371281)
29.	AT347091	[1]	Hydraulic Hose - Fabricate
30.	AT347165	[1]	Hydraulic Hose - Fabricate
31.	AT352550	[1]	Attenuator
32.	AT357751	[1]	Hydraulic Hose - Fabricate
33.	AU14063	[1]	Hose Fitting
35.	N189220	[1]	Tie Band
36.	R29936	[1]	O-Ring
38.	R76477	[1]	Tie Band
39.	T11234	[4]	Lock Nut
40.	T246484	[2]	Clamp	(SUB FOR T118385)
41.	T149597	[1]	Clamp
42.	T162675	[2]	Clamp
43.	T164223	[2]	U-Bolt
