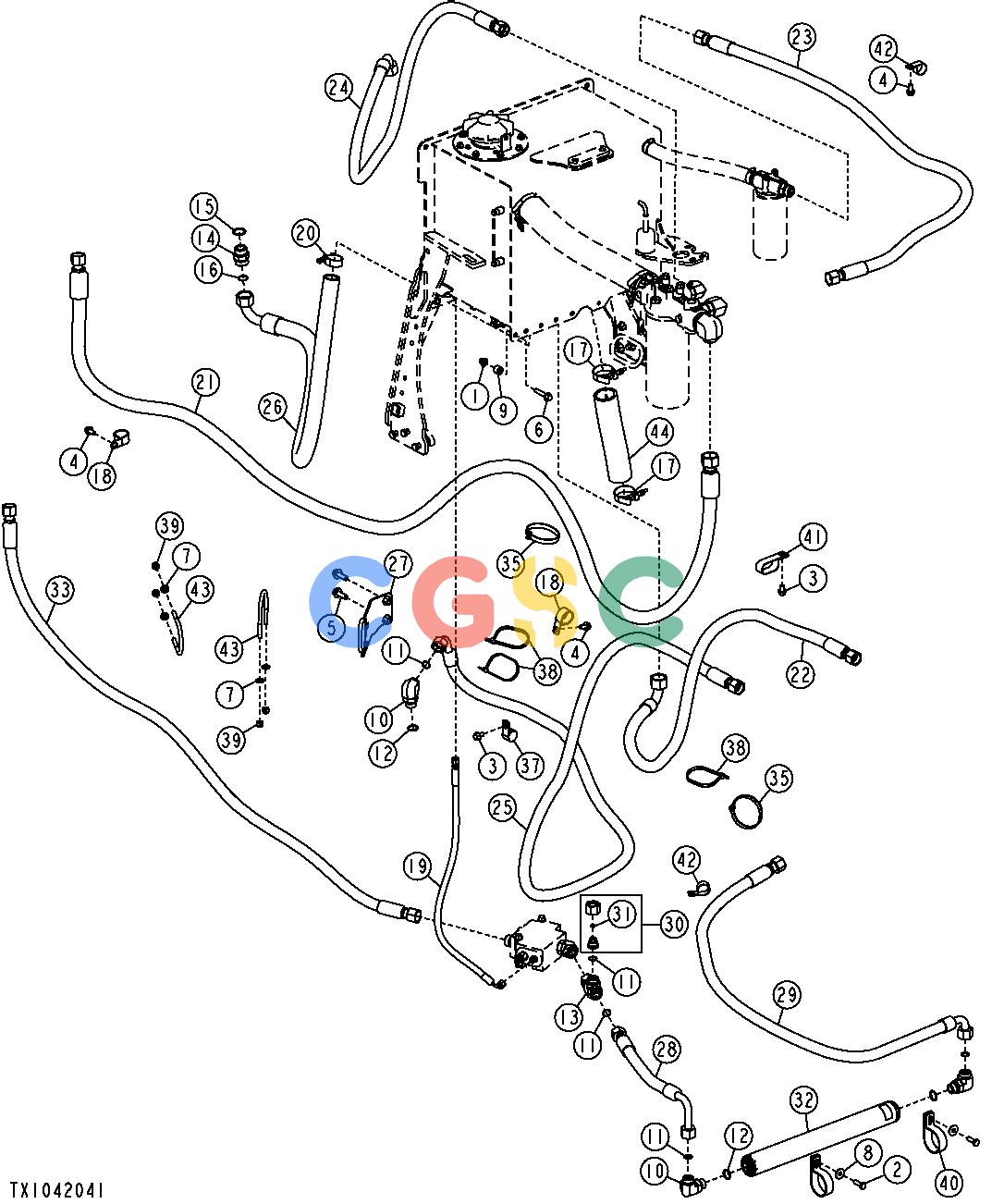

约翰迪尔零件查询1400 - AXLE MAIN HYDRAULIC LINES (748H) (SN 615175-)EPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 329 次

Pos.	Part No	Qty	Parts name	Comments
1.	14M7400	[1]	Lock Nut	M10
2.	19M7662	[2]	Cap Screw	M10 X 30
3.	19M7783	[2]	Screw	M10 X 16
4.	19M7784	[3]	Screw	M10 X 20
5.	19M7790	[2]	Screw	M12 X 35
6.	19M7806	[1]	Screw	M10 X 50
7.	24M7239	[4]	Washer	10.700 X 21 X 2.500 MM
8.	24M7296	[2]	Washer	10.500 X 30 X 2.500 MM
9.	28H3400	[1]	Spacer	0.546" X 0.840" X 9/16"
10.	38H1007	[3]	Elbow Fitting
11.	T77858	[3]	O-Ring
12.	U12547	[3]	O-Ring
13.	38H1033	[1]	Tee Fitting
14.	38H1164	[1]	Adapter Fitting
15.	R29936	[1]	O-Ring
16.	T76938	[1]	O-Ring
17.	AT362404	[2]	Clamp	(SUB FOR AT105289 AND 700580500)
18.	AT121321	[2]	Hose Clamp
19.	AT140240	[1]	Hydraulic Hose - Fabricate
20.	AT152191	[1]	Hose Clamp
21.	AT318210	[1]	Hydraulic Hose - Fabricate
22.	AT318213	[1]	Hydraulic Hose - Fabricate
23.	AT318214	[1]	Hydraulic Hose - Fabricate
24.	AT318651	[1]	Hydraulic Hose - Fabricate
25.	AT318653	[1]	Hydraulic Hose - Fabricate
26.	AT327480	[1]	Hydraulic Hose - Fabricate
27.	AT394060	[1]	Bracket	(SUB FOR AT341139 AND AT371281)
28.	AT347092	[1]	Hydraulic Hose - Fabricate
29.	AT347165	[1]	Hydraulic Hose - Fabricate
30.	........	[1]	Adapter Fitting
31.	T77613	[1]	O-Ring
32.	AT352550	[1]	Attenuator
33.	AT357751	[1]	Hydraulic Hose - Fabricate	(SUB FOR AT318209)
35.	N189220	[1]	Tie Band
37.	R46667	[1]	Clamp
38.	R76477	[1]	Tie Band
39.	T11234	[4]	Lock Nut
40.	T246484	[2]	Clamp	(SUB FOR T118385)
41.	T149597	[1]	Clamp
42.	T162675	[2]	Clamp
43.	T164223	[2]	U-Bolt
44.	T213876	[1]	Hydraulic Hose - Fabricate
