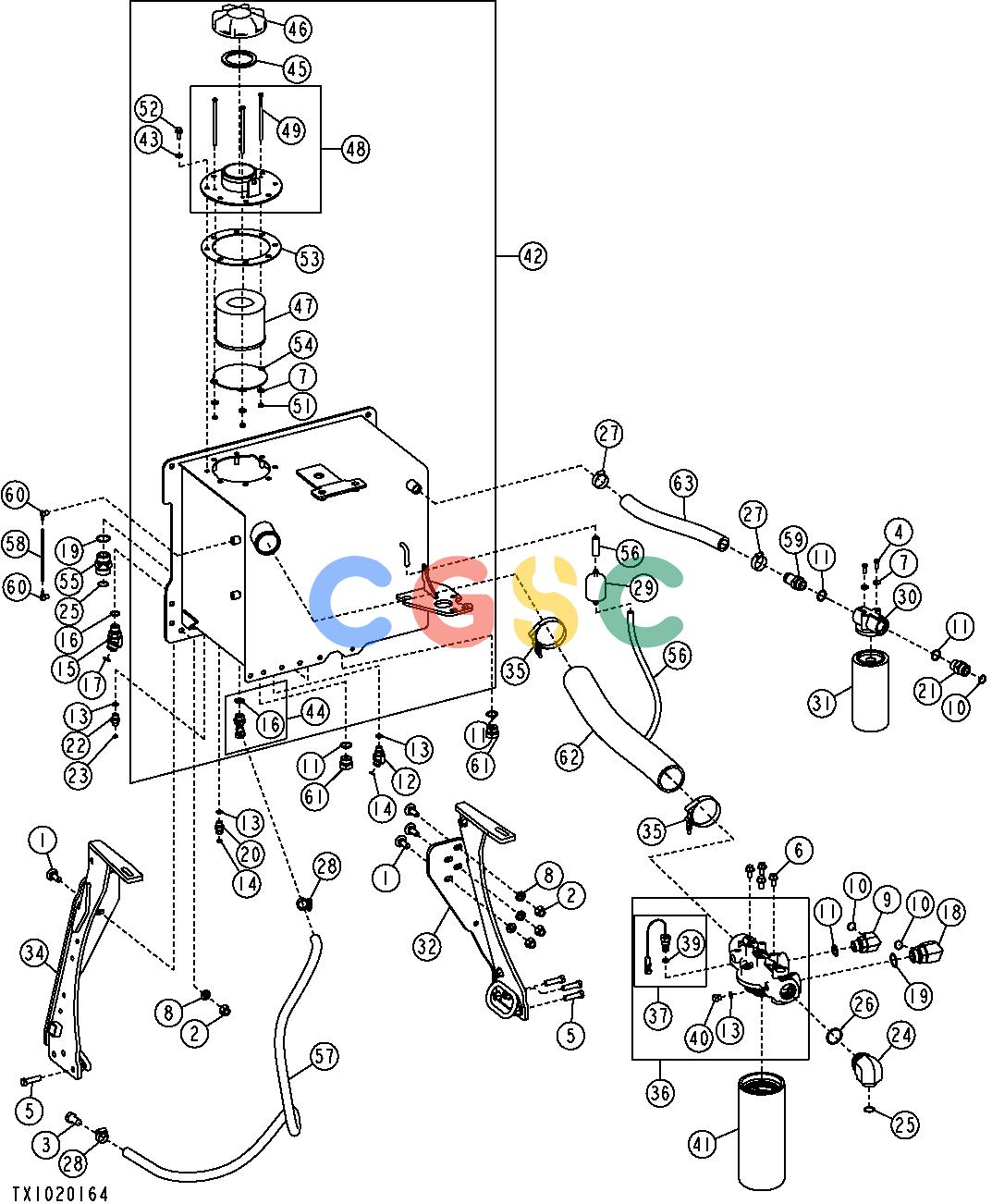

约翰迪尔零件查询1400 - AXLE HYDRAULIC RESERVOIREPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
03M7083
|
[6] |
Bolt
|
|
| 2. |
14M7401
|
[6] |
Lock Nut
|
|
| 3. |
19H1833
|
[1] |
Cap Screw
|
|
| 4. |
19H3869
|
[2] |
Cap Screw
|
|
| 5. |
19M7496
|
[6] |
Cap Screw
|
|
| 6. |
19M7784
|
[4] |
Screw
|
|
| 7. |
24M7139
|
[5] |
Washer
|
|
| 8. |
24M7240
|
[6] |
Washer
|
|
| 9. |
38H1007
|
[1] |
Elbow Fitting
|
|
| 10. |
T77858
|
[3] |
O-Ring
|
|
| 11. |
U12547
|
[5] |
O-Ring
|
|
| 12. |
38H1045
|
[1] |
Elbow Fitting
|
|
| 13. |
R26448
|
[4] |
O-Ring
|
|
| 14. |
T77613
|
[2] |
O-Ring
|
|
| 15. |
38H1047
|
[1] |
Elbow Fitting
|
|
| 16. |
R26906
|
[2] |
O-Ring
|
|
| 17. |
T77932
|
[1] |
O-Ring
|
|
| 18. |
38H1052
|
[1] |
Elbow Fitting
|
|
| 19. |
R29936
|
[2] |
O-Ring
|
|
| 20. |
38H1160
|
[1] |
Adapter Fitting
|
|
| 21. |
38H1163
|
[1] |
Adapter Fitting
|
|
| 22. |
38H1168
|
[1] |
Adapter Fitting
|
|
| 23. |
T77814
|
[1] |
O-Ring
|
|
| 24. |
38H1325
|
[1] |
Elbow Fitting
|
|
| 25. |
T76938
|
[1] |
O-Ring
|
|
| 26. |
U13639
|
[1] |
O-Ring
|
|
| 27. |
AH105968
|
[2] |
Hose Clamp
|
|
| 28. |
AR21837
|
[2] |
Hose Clamp
|
|
| 29. |
AT101565
|
[1] |
Air Filter
|
|
| 30. |
AT182208
|
[1] |
Filter Head
|
|
| 31. |
AT182209
|
[1] |
Oil Filter
|
|
| 32. |
AT193941
|
[1] |
Support
|
|
| 34. |
AT195225
|
[1] |
Support
|
|
| 35. |
AT198270
|
[2] |
Clamp
|
|
| 36. |
AT192374
|
[1] |
Filter Head
|
|
| 37. |
AT192373
|
[1] |
Switch Kit
|
|
| 39. |
T186154
|
[1] |
O-Ring
|
|
| 40. |
R27218
|
[1] |
Fitting Plug
|
|
| 41. |
AT308274
|
[1] |
Oil Filter
|
|
| 42. |
AT315399
|
[1] |
Hydraulic Reservoir
|
|
| 43. |
24H1136
|
[8] |
Washer
|
|
| 44. |
AT152180
|
[1] |
Drain Valve
|
|
| 45. |
T103461
|
[1] |
Sealing Washer
|
|
| 46. |
T191207
|
[1] |
Filler Cap
|
|
| 47. |
AT312946
|
[1] |
Strainer
|
|
| 48. |
AT312947
|
[1] |
Housing
|
|
| 49. |
19M8827
|
[3] |
Screw
|
|
| 51. |
H168961
|
[3] |
Lock Nut
|
|
| 52. |
T164946
|
[8] |
Screw
|
|
| 53. |
T179363
|
[1] |
Gasket
|
|
| 54. |
T210660
|
[1] |
Plate
|
|
| 55. |
AT318185
|
[1] |
Check Valve
|
|
| 56. |
........
|
[AR] |
Bulk Hose
|
|
| 57. |
........
|
[AR] |
Bulk Hose
|
|
| 58. |
........
|
[AR] |
Level Gauge
|
|
| 59. |
AT354413
|
[1] |
Hose Fitting
|
|
| 60. |
N115724
|
[4] |
Elbow Fitting
|
|
| 61. |
R27175
|
[4] |
Drain Plug
|
|
| 62. |
T212189
|
[1] |
Hose
|
|
| 63. |
T212934
|
[1] |
Hydraulic Hose - Fabricate
|
|
