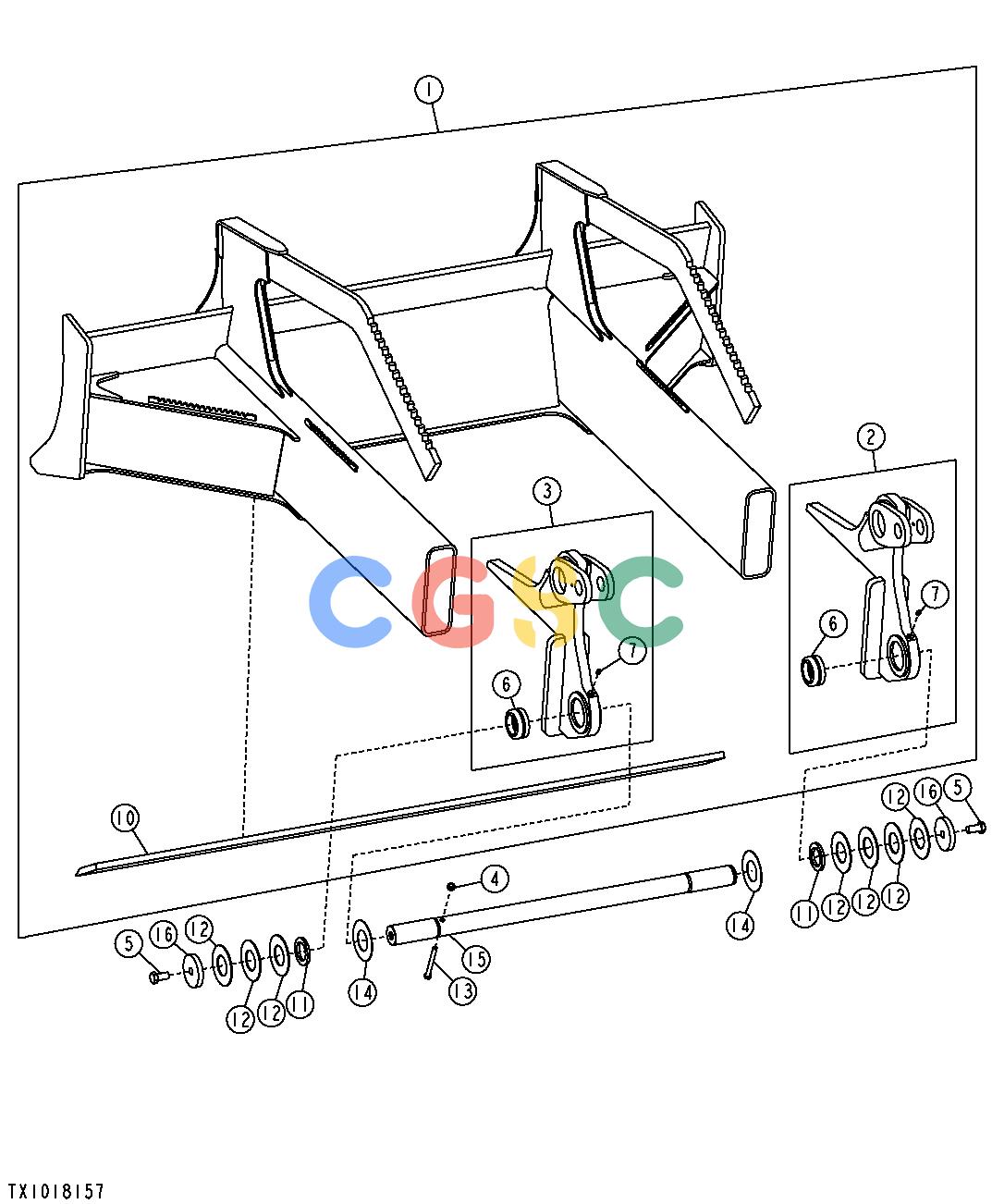

约翰迪尔零件查询1400 - AXLE STACKING BLADESEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
893 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AT327240
|
[1] |
Blade
|
|
| |
AT330167
|
[1] |
Blade
|
|
| 2. |
AT331964
|
[1] |
Mounting Parts
|
|
| 3. |
AT331965
|
[1] |
Mounting Parts
|
|
| 4. |
14M7319
|
[1] |
Lock Nut
|
|
| 5. |
19M7946
|
[2] |
Cap Screw
|
|
| 6. |
AT128774
|
[1] |
Self-Aligning Bushing
|
|
| 7. |
JD7759
|
[1] |
Lubrication Fitting
|
|
| 10. |
T191222
|
[1] |
Dura-Max Cutting Edge
|
|
| 11. |
R108306
|
[2] |
Seal
|
|
| 12. |
T140731
|
[7] |
Washer
|
|
| 13. |
T142262
|
[1] |
Cap Screw
|
|
| 14. |
T143992
|
[2] |
Washer
|
|
| 15. |
T148805
|
[1] |
Pin
|
|
| 16. |
T162875
|
[2] |
Bushing
|
|
