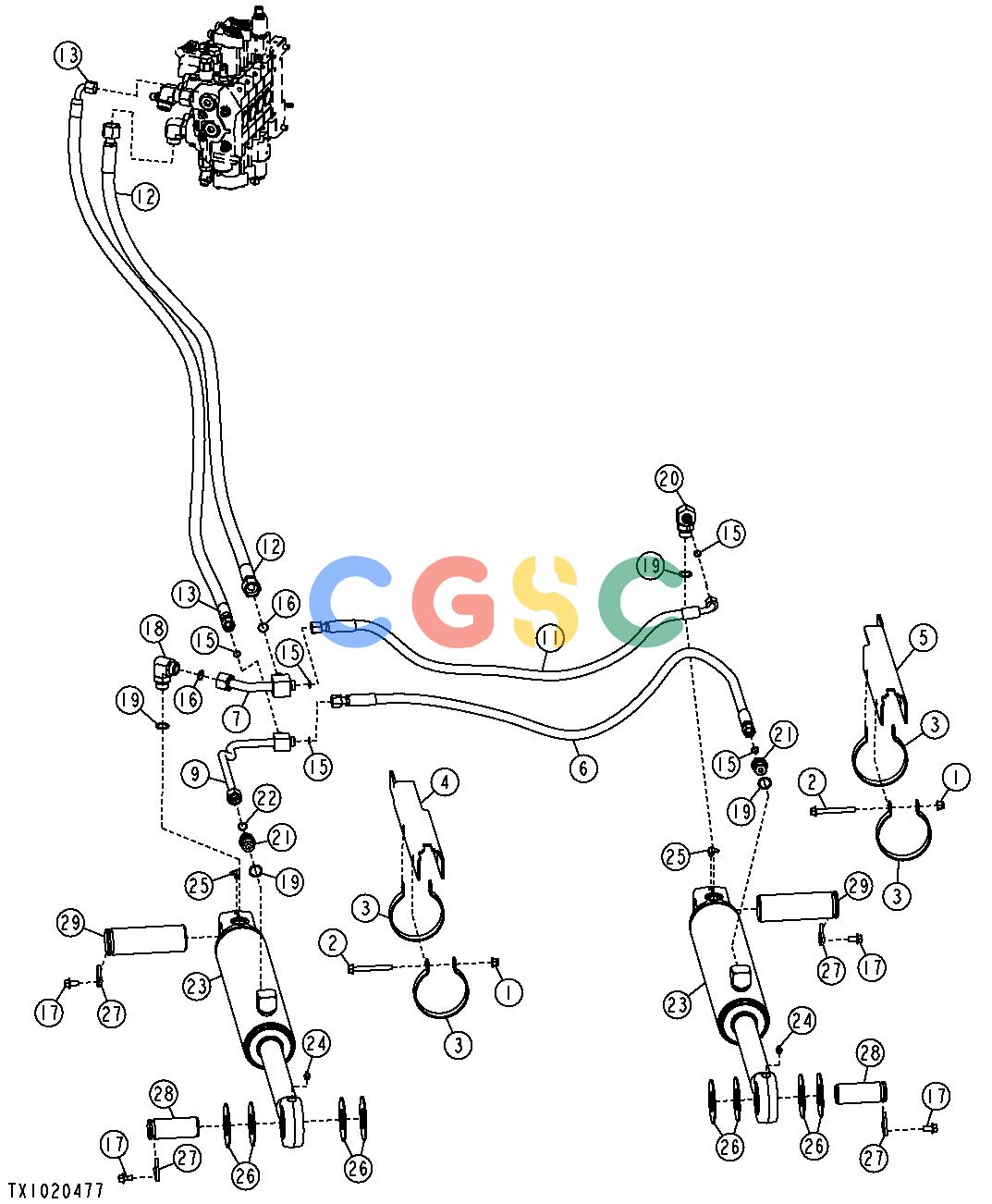

约翰迪尔零件查询1400 - AXLE HYDRAULIC SYSTEM - BLADE VALVE, BLADE CYLINDERS AND GUARDSEPC John Deere online

广数供应链运营团队, 15 02月, 2025，浏览： 458 次

Pos.	Part No	Qty	Parts name	Comments
1.	14M7400	[4]	Lock Nut	M10
2.	19M7811	[4]	Screw	M10 X 90
3.	T137909	[4]	Clamp
4.	T204516	[1]	Channel
5.	T204517	[1]	Channel
6.	AT175781	[1]	Hydraulic Hose - Fabricate	13/16" X 1358 MM (53-1/2") X 13/16"
7.	AT304936	[1]	Oil Line
9.	AT306087	[1]	Oil Line
11.	AT306140	[1]	Hydraulic Hose - Fabricate
12.	AT316002	[1]	Hydraulic Hose - Fabricate
13.	AT316003	[1]	Hydraulic Hose - Fabricate	13/16" X 2013 MM (79-1/4") X 13/16"
15.	T77857	[6]	O-Ring	12.421 X 1.778 MM (0.489" X 0.070")
16.	T77858	[2]	O-Ring	18.771 X 1.778 MM (0.739" X 0.070")
17.	19M7784	[8]	Screw	M10 X 20
18.	38H1007	[2]	Elbow Fitting
19.	U12547	[2]	O-Ring	23.470 X 2.946 MM (0.924" X 0.116")
20.	38H1013	[2]	Elbow Fitting
21.	38H1329	[2]	Adapter Fitting
22.	T77932	[2]	O-Ring	15.596 X 1.778 MM (0.614" X 0.070")
23.	AH223576	[2]	Hydraulic Cylinder
24.	JD7759	[4]	Lubrication Fitting
25.	JD7799	[4]	Lubrication Fitting	90% X 19.558 MM LONG (0.770" LONG)
26.	T153373	[16]	Washer	46 X 100 X 2.500 MM (1.811" X 3-15/16" X 0.098")
27.	T170880	[8]	Plate
28.	T202645	[2]	Pin	44.928 X 114 MM (1.769" X 4.488")
29.	T202648	[4]	Pin	59.915 X 182 MM (2-23/64" X 7.165")
