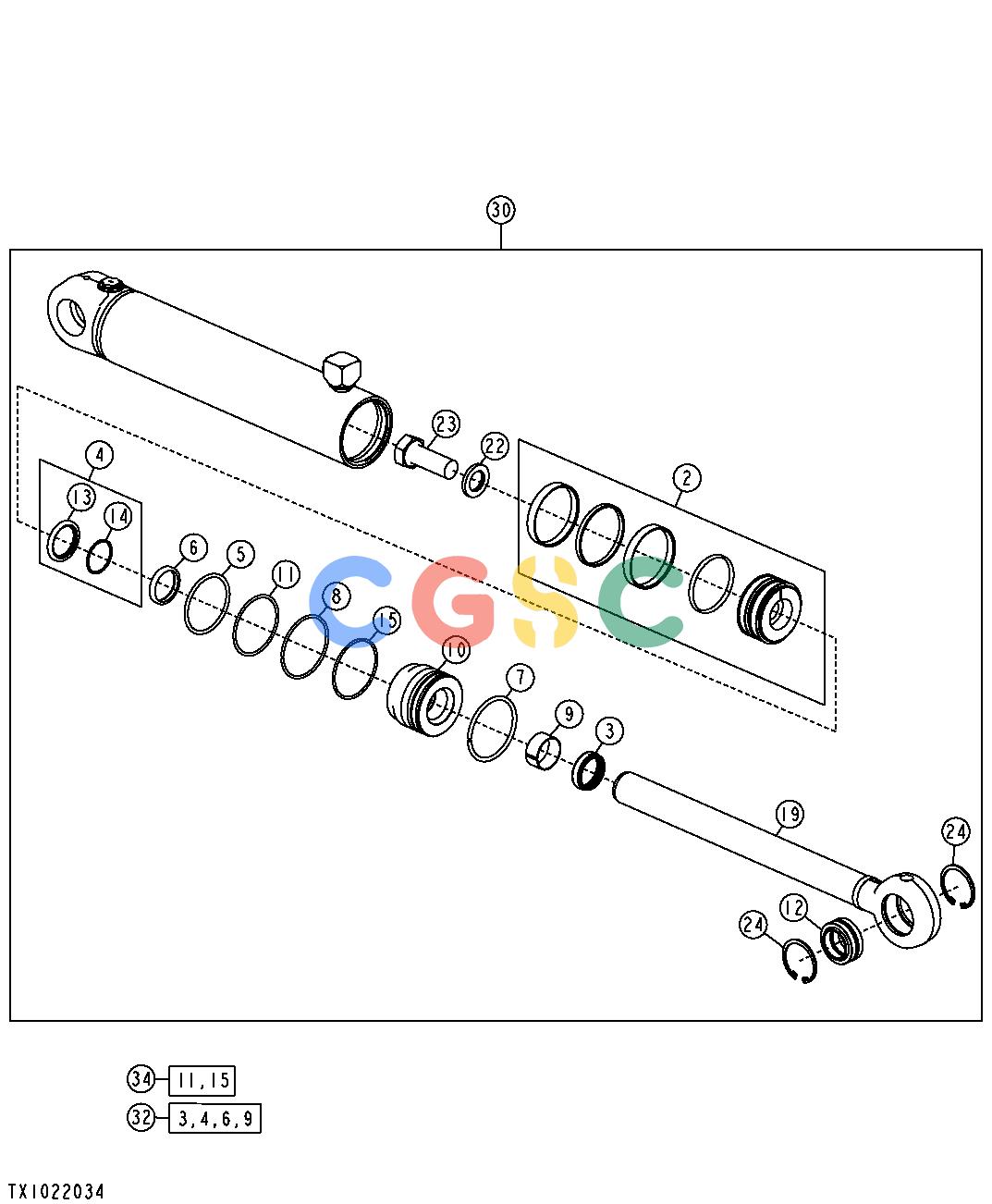

约翰迪尔零件查询1400 - AXLE BLADE CYLINDER 100X50-409,724EPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
417 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
AH205062
|
[1] |
Piston
|
|
| 3. |
AH146557
|
[1] |
Seal
|
|
| 4. |
AH146561
|
[1] |
Seal
|
|
| 5. |
F950R
|
[1] |
O-Ring
|
|
| 6. |
H152203
|
[1] |
Seal
|
|
| 7. |
H180080
|
[1] |
Snap Ring
|
|
| 8. |
H180094
|
[1] |
Snap Ring
|
|
| 9. |
H208987
|
[1] |
Wear Ring
|
|
| 10. |
H208995
|
[1] |
Hydr. Cylinder Rod Guide
|
|
| 11. |
R81862
|
[1] |
Back-Up Ring
|
|
| 12. |
AH155619
|
[1] |
Self-Aligning Bushing
|
|
| 13. |
........
|
[1] |
Seal
|
|
| 14. |
........
|
[1] |
Seal
|
|
| 15. |
H210686
|
[1] |
O-Ring
|
|
| 19. |
AH228893
|
[1] |
Rod
|
|
| 22. |
H145175
|
[1] |
Washer
|
|
| 23. |
19M8353
|
[1] |
Cap Screw
|
|
| 24. |
40M7090
|
[2] |
Snap Ring
|
|
| 30. |
AH223576
|
[1] |
Hydraulic Cylinder
|
|
| 32. |
AH210484
|
[1] |
Hydraulic Cylinder Kit
|
|
| 34. |
AH212102
|
[1] |
Hydraulic Cylinder Kit
|
|
