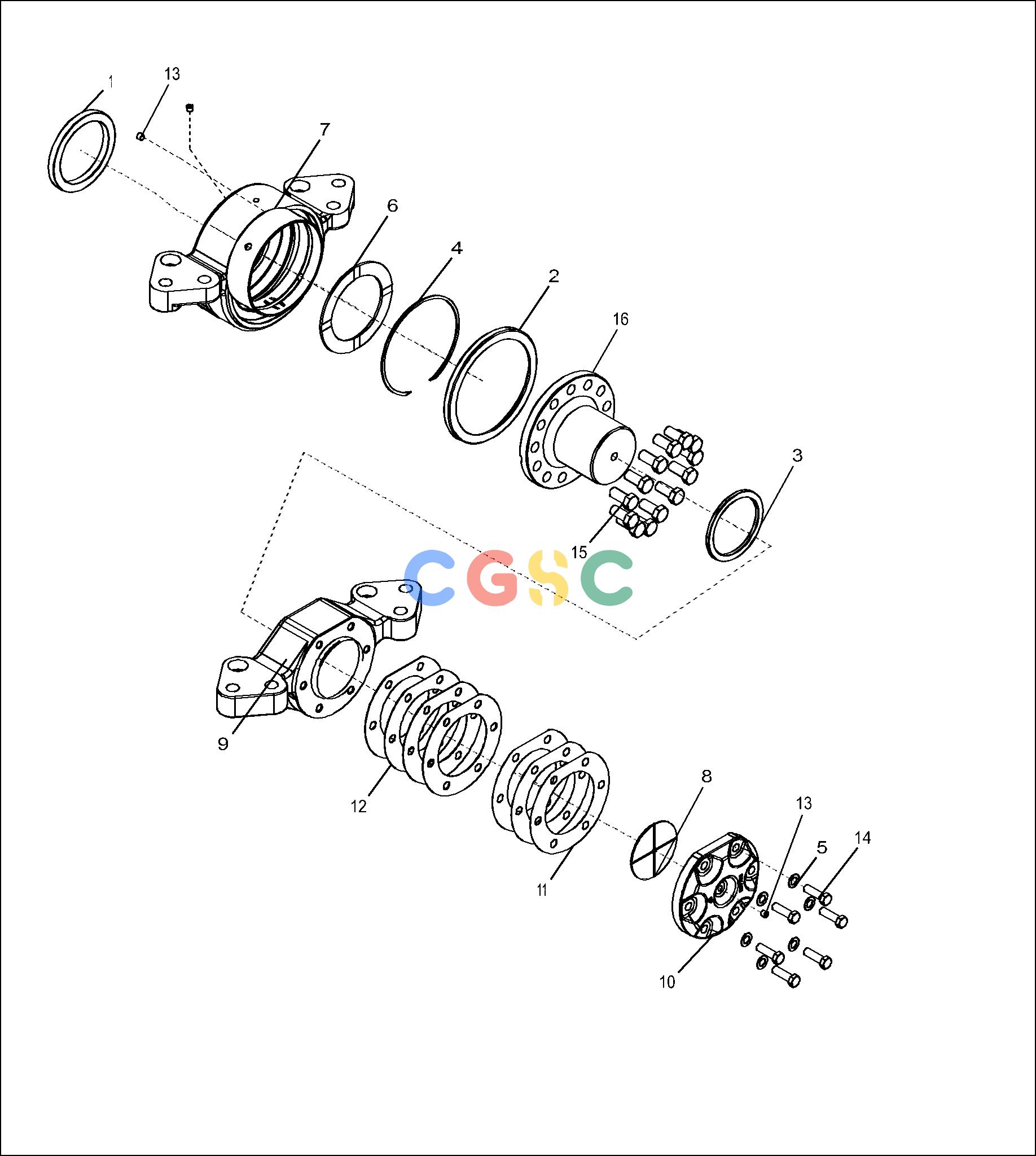

约翰迪尔零件查询643K - FELLER BUNCHER YZ121179 Dual Center Pivot, Osc; Front Extreme Heavy Duty, SwedaEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
860 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
AR92437
|
[1] |
Seal
|
|
| 2. |
AR94169
|
[1] |
Seal
|
|
| 3. |
AT49859
|
[1] |
Seal
|
|
| 4. |
R42227
|
[1] |
Snap Ring
|
|
| 5. |
R47172
|
[6] |
Washer
|
|
| 6. |
R56298
|
[1] |
Thrust Washer
|
|
| 7. |
RE41837
|
[1] |
Support
|
|
| |
R70454
|
[1] |
Bushing
|
|
| 7. |
R70454
|
[1] |
|
|
| 8. |
R97705
|
[1] |
Thrust Washer
|
|
| 9. |
RE35554
|
[1] |
Support
|
|
| 9. |
R97707
|
[1] |
|
|
| |
R97707
|
[1] |
Bushing
|
|
| 10. |
R97708
|
[1] |
Cover
|
|
| 11. |
R97711
|
[3] |
Shim
|
|
| 12. |
R97712
|
[4] |
Shim
|
|
| 13. |
15H558
|
[3] |
Pipe Plug
|
|
| 14. |
19M7493
|
[6] |
Cap Screw
|
|
| 15. |
19M8035
|
[13] |
Cap Screw
|
|
| 16. |
YZ121168
|
[1] |
Pin
|
|
