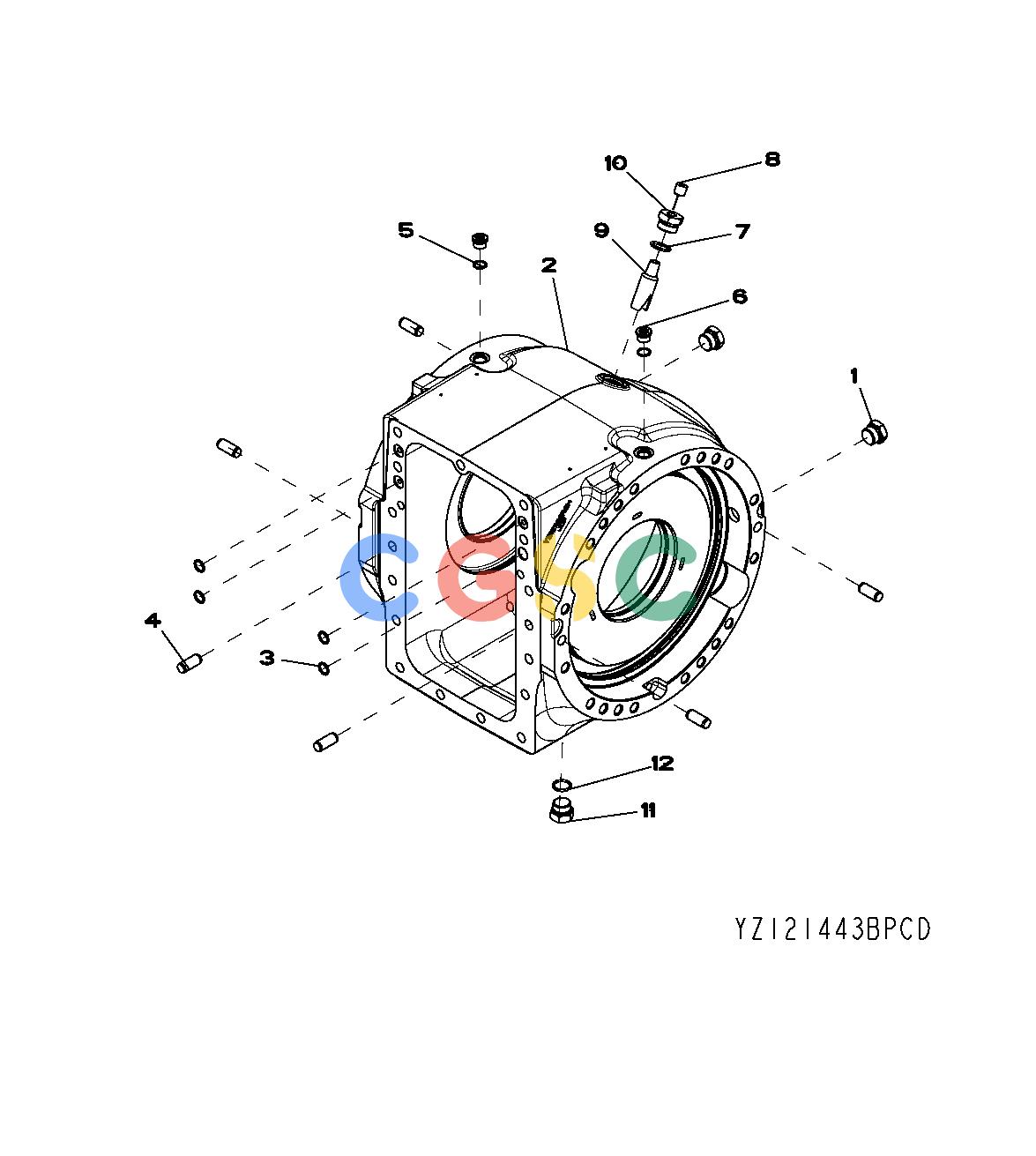

约翰迪尔零件查询643K - FELLER BUNCHER YZ121443 Standard Differential Case; Front Heavy, Extreme Duty, SwedaEPC John Deere online
广数供应链运营团队, 15 02月, 2025，浏览：
263 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
RE58664
|
[2] |
Fitting
|
|
| |
F3171R
|
[1] |
O-Ring
|
|
| |
R27175
|
[1] |
Drain Plug
|
|
| 2. |
YZ121223
|
[1] |
Case
|
|
| 3. |
R375R
|
[4] |
O-Ring
|
|
| 4. |
R54380
|
[6] |
Dowel Pin
|
|
| 5. |
R26375
|
[2] |
O-Ring
|
|
| 6. |
R33138
|
[2] |
Fitting
|
|
| 7. |
U17409
|
[1] |
O-Ring
|
|
| 8. |
15H563
|
[1] |
Pipe Plug
|
|
| |
15H666
|
[1] |
Pipe Plug
|
|
| 9. |
R132574
|
[1] |
Structural Tubing
|
|
| 10. |
R112210
|
[1] |
Adapter Fitting
|
|
| 11. |
YZ121445
|
[1] |
Drain Plug
|
|
| 12. |
F3171R
|
[1] |
O-Ring
|
|
| 13. |
34M7040
|
[1] |
Spring Pin
|
|
| 14. |
YZ121036
|
[1] |
Plug
|
|
